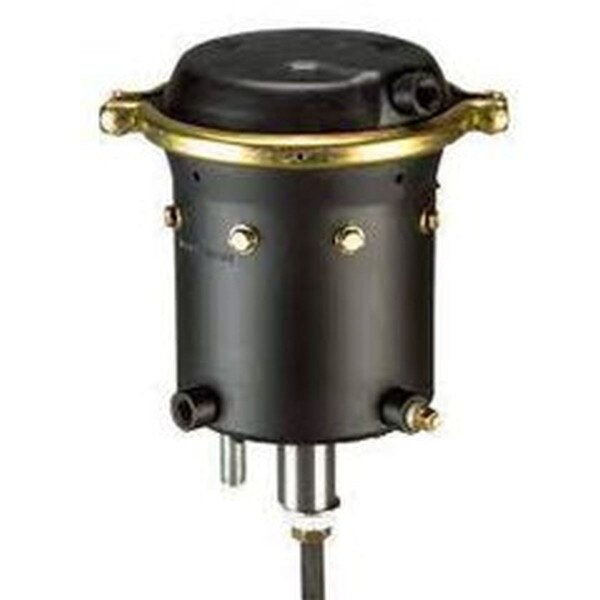

MGM MJS3030ET Combination Brake - MJS3030ET083 / MJS3030ET - MJS3030ET083
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.
This MJS3030ET s-cam brake with breather tube is designed for piston, parking brakes. This MJS 3 inch model features a tamper-resistant design and a 3 inch long stroke. Its compact size and new patented integral release bolt mechanism makes it desirable for commercial vehicles. It contains a minimum bolt protrusion (1.25 inches on long stroke models when manually released); a non-coil clash power spring; corrosion-resistant steel head - epoxy-coated and is available with 1749-2450 pounds of push rod braking force at 1.25 inch stroke/service brake sizes 17-36. This aftermarket unit features a 3 inch long stroke; port sizes of 3/8-18 inches; 5/8-11 mounting bolt thread and a 1.54 inch mounting bolt length. Service size is 30 and spring size is 30. It's "A" measurement is 10.73 inch; "B" measurement is 8.43 inches; "C" measurement is 8.32 inches; "D" measurement is 7.5 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8 - 18 NPTF.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- 3 inch long stroke
- Port sizes of 3/8-18 inches
- 5/8-11 mounting bolt thread
- 1.54 inch mounting bolt length
- Service size is 30
- Spring size is 30
- "A" measurement is 10.73 inch
- "B" measurement is 8.43 inches
- "C" measurement is 8.32 inches
- "D" measurement is 7.5 inches
- "E" measurement is 4.75 inches
- "F" measurement is 5/8-11 UNC
- "G" measurement is 5/8-18 UNF
- Inlets are 3/8 - 18 NPTF
Includes
MJS3030ET s-cam brake with breather tube
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
MJS3030ET083
Specifications
| Brand | mgm brakes |
| Model Number | MJS3030ET |
| MPN | MJS3030ET083 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This MJS3030ET s-cam brake with breather tube is designed for piston, parking brakes. This MJS 3 inch model features a tamper-resistant design and a 3 inch long stroke. Its compact size and new patented integral release bolt mechanism makes it desirable for commercial vehicles. It contains a minimum bolt protrusion (1.25 inches on long stroke models when manually released); a non-coil clash power spring; corrosion-resistant steel head - epoxy-coated and is available with 1749-2450 pounds of push rod braking force at 1.25 inch stroke/service brake sizes 17-36. This aftermarket unit features a 3 inch long stroke; port sizes of 3/8-18 inches; 5/8-11 mounting bolt thread and a 1.54 inch mounting bolt length. Service size is 30 and spring size is 30. It's "A" measurement is 10.73 inch; "B" measurement is 8.43 inches; "C" measurement is 8.32 inches; "D" measurement is 7.5 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8 - 18 NPTF. |
