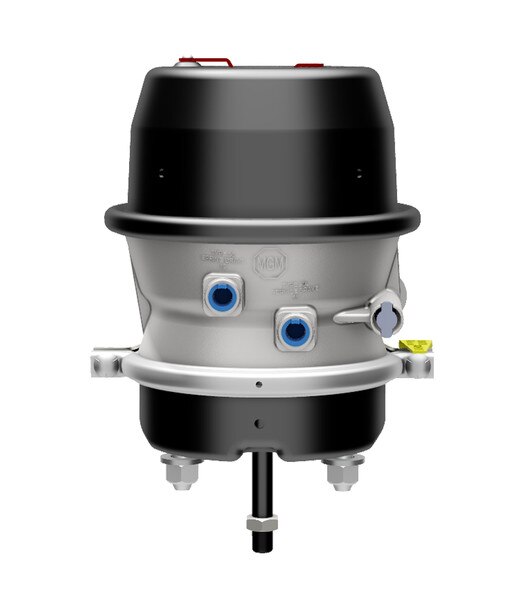

MGM TR3036L3 Combo Service Brake - 3234051
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.
This TR3036L3 s-cam brake with welded mounting bolts is designed for parking brakes. The TR-L3 model with composite guide corrosion fighter technology features a tamper-resistant design and center hole diaphragm. It offers a long 3 inch stroke; weatherseal plug and weld reinforced non-pressure housing with welded bolts. This aftermarket unit with double diaphragm contains a service size of 30; a spring size of 36; port size measurement of 3/8-18 NPTF and a stroke of 3 inches. Its mounting bolt thread measures 5/8-11 and its mounting bolt length measures 1.49 inches. Its "A" measurement is 10.96 inches; "B" measurement is 8.62 inches; "C" measurement is 8.14 inches; "D" measurement is 9.18 inches; "E" measurement is 4.75 inches; F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8-18 NPTF. X-min measures 8 inches.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- Service size of 30
- Spring size of 36
- Port size measurement of 3/8-18 NPTF
- Stroke of 3 inches
- Mounting bolt thread measures 5/8-11
- Mounting bolt length measures 1.49 inches
- "A" measurement is 10.96 inches
- "B" measurement is 8.62 inches
- "C" measurement is 8.14 inches
- "D" measurement is 9.18 inches
- "E" measurement is 4.75 inches
- F" measurement is 5/8-11 UNC
- "G" measurement is 5/8-18 UNF
- Inlets are 3/8-18 NPTF
- X-min measures 8 inches
Includes
TR3036L3 s-cam brake with welded mounting bolts
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
Mgm Brakes 3234051 Cross References
3036TN3, 3234051, 5554-3234051, 55543234051, BTS3036LS, GC3036L, HALDX, MGM3234051
Specifications
| Brand | mgm brakes |
| Model Number | TR3036L3 |
| MPN | 3234051 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This TR3036L3 s-cam brake with welded mounting bolts is designed for parking brakes. The TR-L3 model with composite guide corrosion fighter technology features a tamper-resistant design and center hole diaphragm. It offers a long 3 inch stroke; weatherseal plug and weld reinforced non-pressure housing with welded bolts. This aftermarket unit with double diaphragm contains a service size of 30; a spring size of 36; port size measurement of 3/8-18 NPTF and a stroke of 3 inches. Its mounting bolt thread measures 5/8-11 and its mounting bolt length measures 1.49 inches. Its "A" measurement is 10.96 inches; "B" measurement is 8.62 inches; "C" measurement is 8.14 inches; "D" measurement is 9.18 inches; "E" measurement is 4.75 inches; F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8-18 NPTF. X-min measures 8 inches. |
