Horton Freightliner FLN ISB Fan Clutch - 79A9110
Details
Product Description
Heavy-duty vehicle engines can get toasty after spending countless hours on the road; but with the help from fan clutches, the engine will stay at a cooler temperature that is optimal for driving long distances.

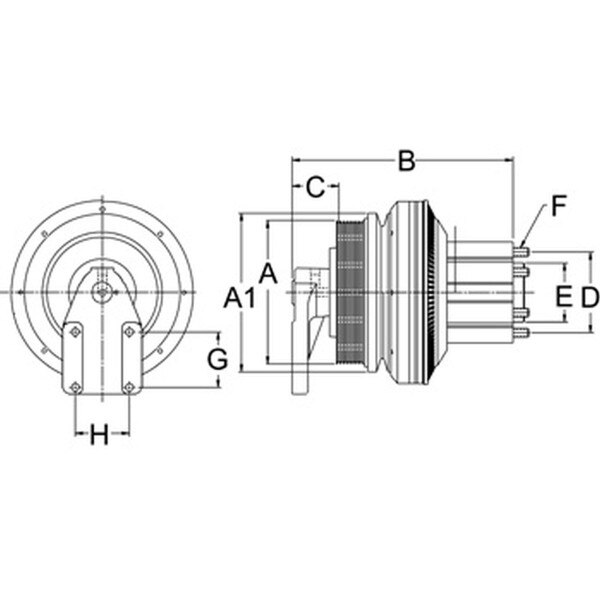

This fan clutch is designed for Freightliner FLN vehicles with Cummins ISB engines and Sterling Acterra, L Line with Cummins ISB engines. It contains a stud thread size of .375-24 UNF and a fan blade stud length of 3.57 inches. Its bolt circle size measures at 3.5 inches and it offers a fan pilot diameter of 2.56 inches. Its vertical mounting distance measures 2.4 inches and its horizontal mounting distance measures 2.36 inches. Center Of Jb To Top Right Mounting Hole is 1.72 inches. Its back pulley diameter measures 6.21 inches while its front pulley diameter measures 6.88 inches. This external engine component contains a pulley belt configuration of 8K, 1V and it has a belt groove location of 2.04. Finally, it has an overall length measuring 9.64 inches.
This product's warranty ranges from 12-36 months depending on vocation and product type.
Horton is an industry leader in the field of clutches and engine system components. Since 1951, Horton has received global recognition for their reliable engine cooling fans that continue to help on-highway and off-highway vehicles safely operate on the road.
Features
- Freightliner FLN vehicles with Cummins ISB engines and Sterling Acterra, L Line with Cummins ISB engines
- Stud thread size of .375-24 UNF
- Fan blade stud length of 3.57 inches
- Bolt circle size measures at 3.5 inches
- Fan pilot diameter of 2.56 inches
- Vertical mounting distance measures 2.4 inches
- Horizontal mounting distance measures 2.36 inches
- Center Of Jb To Top Right Mounting Hole is 1.72 inches
- Back pulley diameter measures 6.21 inches
- Front pulley diameter measures 6.88 inches
- Pulley belt configuration of 8K, 1V
- Belt groove location of 2.04
- Overall length measuring 9.64 inches
Includes
One fan clutch
Warranty
12-36 months depending on vocation and product type.
Cross Reference
79A9110, 98A9110
Specifications
| Brand | Horton |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | This fan clutch is designed for Freightliner FLN vehicles with Cummins ISB engines and Sterling Acterra, L Line with Cummins ISB engines. It contains a stud thread size of .375-24 UNF and a fan blade stud length of 3.57 inches. Its bolt circle size measures at 3.5 inches and it offers a fan pilot diameter of 2.56 inches. Its vertical mounting distance measures 2.4 inches and its horizontal mounting distance measures 2.36 inches. Center Of Jb To Top Right Mounting Hole is 1.72 inches. Its back pulley diameter measures 6.21 inches while its front pulley diameter measures 6.88 inches. This external engine component contains a pulley belt configuration of 8K, 1V and it has a belt groove location of 2.04. Finally, it has an overall length measuring 9.64 inches. |
