MGM 3636 Brake Chamber -3437051

Product Description

Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

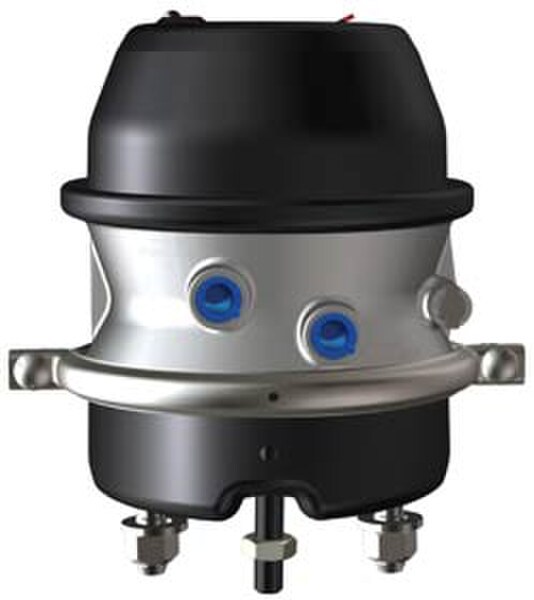

This TR3636T s-cam drum brake chamber is designed for parking brakes. The TR model with composite guide corrosion fighter technology (T30 spring side models only) features a tamper-resistant design and externally stored released bolt with epoxy-coated head and center hole shield. It offers a long life power spring (spring size is 36); 360 aluminum center case and weatherseal plug in addition to a heavy-duty nylon neoprene diaphragm and steel non-pressure chamber (6 gauge standard on Type 36 models). This brake chamber with double diaphragm and standard stroke contains a service size of 36; port size measurement of 3/8-18 NPTF and a stroke of 3 inches. Additionally, it contains a 5/8-11 inch mounting bolt thread and a 1.66 inch mounting bolt length. Its "A" measurement is 11.08 inches; "B" measurement is 8.39 inches; "C" measurement is 9.24 inches; "D" measurement is 9.18 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8-18 NPTF. X-min measures 8 inches.

MGM's limited warranty depends on product and application. Contact us to learn more!

Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!

Features

• Spring size is 36
• Service size of 36
• Port size measurement of 3/8-18 NPTF
• Stroke of 3 inches
• 5/8-11 inch mounting bolt thread
• 1.66 inch mounting bolt length
• "A" measurement is 11.08 inches
• "B" measurement is 8.39 inches
• "C" measurement is 9.24 inches
• "D" measurement is 9.18 inches
• "E" measurement is 4.75 inches
• "F" measurement is 5/8-11 UNC
• "G" measurement is 5/8-18 UNF
• Inlets are 3/8-18 NPTF
• X-min measures 8 inches

Includes

TR3636T s-cam drum brake chamber

Warranty

MGM's limited warranty depends on product and application. Contact us to learn more!

Cross Reference

12760, 174 5007134, 179SB3636S, 3036004NW3636001, 3037051, 3107556, 3136051, 3436051, 3436051-MGM, 3436051MGM, 3636001, 3636006, 3636GC, 3636HDA, 3636SB, 3636T, 3636TN3, 5007134, 5007134N, 5007134NBXW, 53636001, 5554-3436051, 55543436051, 636SB, 641425, 745-5007134N, 7455007134, 7455007134N, 77S3636T, 800830, 800833, 940978000, A7630019-002, ABPN42A43636CD, BAN5007134N, BEN5007134N, BH5007134, BM3636T, BW5007134, BW5007134N, BW800830, BWTYPE36, BX5007134N, DI12760, DP12760, EBC3636C, EGC-3636, EGC3636, FDS3636T, FRS3636T, GC3636, HD3636C, MG3037051, MG3136051, MG3436051, MG3437051, MGM3436051, MI3636001, MI3636006, MI53636001, NW3036004NW3636001, NW3636001, NW3636GC, NW53636001, OTR3636SB, PLBTS3636, PLBTS3637, QD12760, T-3636-00, T363600, T3636T, TEX3636SB, TSX3636SB, TWDBEN5007134N, TYPE36, X3636SB, ZAJ3436051, ZAJ3437051
