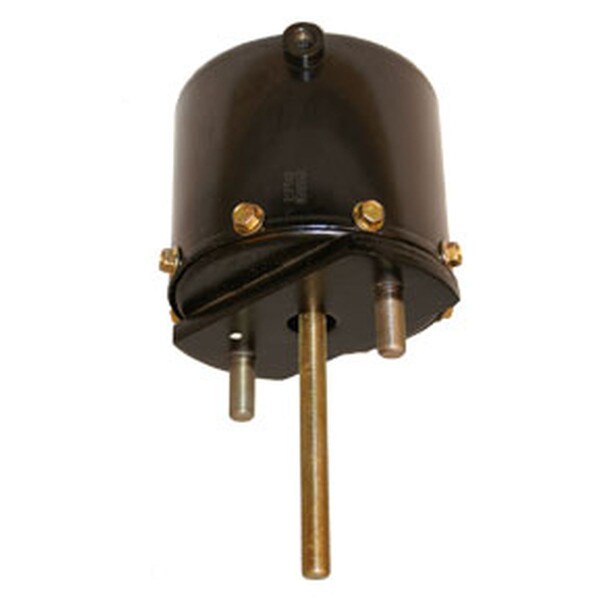

Haldex MAXIBRAKE R-Series Pull Type Spring Brake - MA15665

SKU MA15665
$518.13
(0) No Reviews yet

Out of Stock

Details

Product Description

Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.

This Haldex MAXIBRAKE R-Series Spring Brake Actuator built with all-steel housing that brings durability and added corrosion resistance. It's built with an aluminum piston and nylon bearings that diffuses lateral motion for accurate stability. This actuator features deeper spring cavities for longer service life. This spring brake stops your vehicle in emergencies and won't release until the air supply is at a safe level. This actuator has a maximum hydraulic pressure of 125 PSI and has a pushrod length of 8 inches. Its stroke comes in at 3 inches long and it is classified as a long stroke brake chamber.

Haldex is a major provider of innovative solutions for brakes to heavy duty vehicles across the globe. Haldex aims to bring the safest and most dynamic brake parts to your truck, creating a world of safer vehicles for generations to come. For unique products to operational excellence, choose Haldex to drive your future.


Features

  • MAXIBRAKE R-Series Spring Brake Actuator
  • Built with all steel housing that brings durability and added corrosion resistance
  • Aluminum piston and nylon bearings diffuses lateral motion for accurate stability
  • Deeper Spring Cavities make for longer service life
  • Vehicle will stop in emergencies and won't release until air supply is at a safe level
  • Maximum Hydraulic Pressure of 125 PSI
  • Long Stroke
  • 3 in. Stroke Size
  • 8 in. Pushrod Length

Includes

One (1) Pull Type Spring Brake


Specifications

OE ManufacturerMaxibrake
Series8115
Pressure8114
BrandHaldex
Stroke3.0 in.
MPNMA15665
UPC767653016801
Width11 in.
VMRS013-004-009
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height12 in.
BenefitsThis MAXIBRAKE R-Series Spring Brake Actuator built with all steel housing that brings durability and added corrosion resistance. It's built with an aluminum piston and nylon bearings that diffuses lateral motion for accurate stability. This actuator features deeper spring cavities for longer service life. This spring brake will stop your vehicle in emergencies and won't release until the air supply is at a safe level. This specific actuator has a maximum hydraulic pressure of 125 PSI and has a pushrod length of 8 inches. Its stroke comes in at 3 inches in length and it is classified as a long stroke brake chamber.


Cross Reference

5396-MA15665, 5396MA15665, 767653016801, C-MA15665, CMA15665, HALMA15665, HDXMA15665, KSMR3PT75-800NN, KSMR3PT75800NN, MA15665, MA15665-MD, MA15665M1D, MA15665MD, MBIMA15665, MIDMA15665, MMA15665, ZZMA156655396-MA15665, 5396MA15665, 767653016801, C-MA15665, CMA15665, HALMA15665, HDXMA15665, KSMR3PT75-800NN, KSMR3PT75800NN, MA15665-MD, MA15665M1D, MA15665MD, MBIMA15665, MIDMA15665, MMA15665, ZZMA15665
