MGM LTR3030T Brake Chamber - 3831051X
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

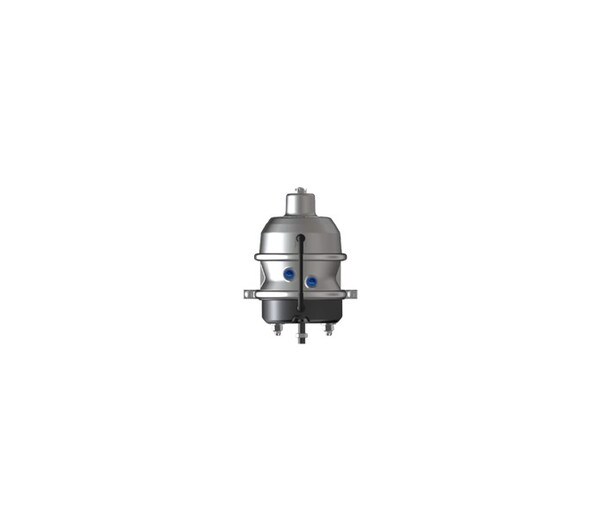

This LTR3030T s-cam brake chamber with breather tube is designed for parking brakes. The LTR-T model features a tamper-resistant design and integral release bolt. It also has low friction piston and guide plus a heavy-duty long life power spring offering 100 pounds additional parking brake force at 1.25 inch of stroke. With an external breather tube, it contains a service size of 30 and a spring size of 30. It also features a standard stroke size of 2.5 inches and a 3/8-18 inch port size. Its "A" measurement is 11.86 inches; "B" measurement is 9.46 inches; "C" measurement is 8.27 inches; "D" measurement is 8.18 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "E" measurement is 5/8-18 UNF and inlets are 3/8-18 NPTF. X-min measures 8 inches. Package quantity of 16.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- Service size of 30
- Spring size of 30
- Standard stroke size of 2.5 inches
- 3/8-18 inch port size

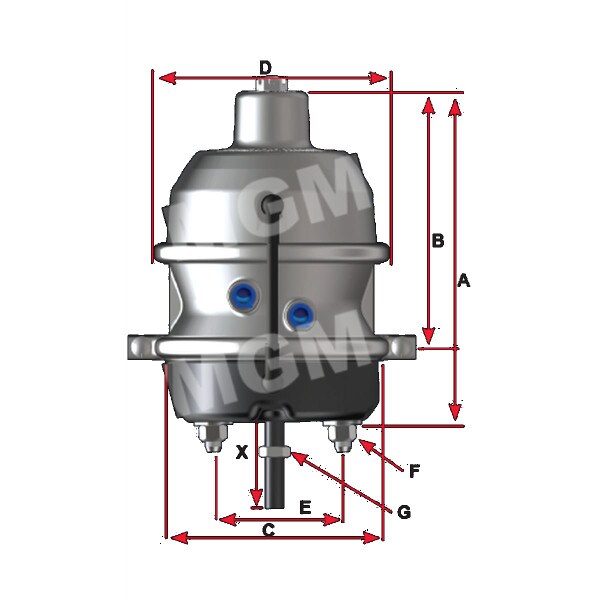

- "A" measurement is 11.86 inches
- "B" measurement is 9.46 inches
- "C" measurement is 8.27 inches
- "D" measurement is 8.18 inches
- "E" measurement is 4.75 inches
- "F" measurement is 5/8-11 UNC
- "E" measurement is 5/8-18 UNF
- Inlets are 3/8-18 NPTF
- X-min measures 8 inches
- Package quantity of 16
Includes
LTR3030T s-cam brake chamber with breather tube
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
3831051, 5554-3831051X, 55543831051X, MG3831051X, MGM3831051X, ZAJ3831051X
Specifications
| Brand | mgm brakes |
| Model Number | LTR3030T |
| MPN | 3831051X |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This LTR3030T s-cam brake chamber with breather tube is designed for parking brakes. The LTR-T model features a tamper-resistant design and integral release bolt. It also has low friction piston and guide plus a heavy-duty long life power spring offering 100 pounds additional parking brake force at 1.25 inch of stroke. With an external breather tube, it contains a service size of 30 and a spring size of 30. It also features a standard stroke size of 2.5 inches and a 3/8-18 inch port size. Its "A" measurement is 11.86 inches; "B" measurement is 9.46 inches; "C" measurement is 8.27 inches; "D" measurement is 8.18 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "E" measurement is 5/8-18 UNF and inlets are 3/8-18 NPTF. X-min measures 8 inches. Package quantity of 16. |
