MGM TR3036TS Brake Chamber - 3532954X
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

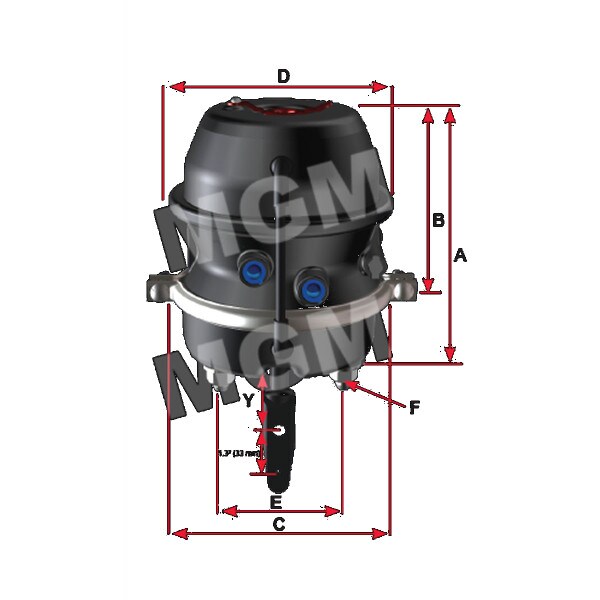

This TR3036TS brake chamber is designed for Severe service, parking brakes. The TR-TS model with composite guide corrosion fighter technology (T30 spring side models only) features a tamper-resistant design and externally stored released bolt with epoxy-coated head and center hole shield. It offers an epoxy-coated return spring (spring size is 36); 360 aluminum center case and weatherseal plug in addition to a heavy-duty nylon neoprene diaphragm and steel non-pressure chamber (6 gauge standard on Type 36 models). This severe service brake chamber with neoprene double diaphragm and breather tube plus welded yoke contains a service size of 30; port size measurement of 3/8-18 NPTF and a standard stroke of 2.5 inches. Additionally, it contains a 5/8-11 inch mounting bolt thread and 1.54 inch mounting bolt length. Its "A" measurement is 9.86 inches; "B" measurement is 7.52 inches; "C" measurement is 8.31 inches; "D" measurement is 9.18 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8-18 NPTF. Y measures 2.25 inches. Package quantity of 12.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- Spring size is 36
- Service size of 30
- Port size measurement of 3/8-18 NPTF
- Standard stroke of 2.5 inches
- 5/8-11 inch mounting bolt thread
- 1.54 inch mounting bolt length
- "A" measurement is 9.86 inches
- "B" measurement is 7.52 inches
- "C" measurement is 8.31 inches
- "D" measurement is 9.18 inches
- "E" measurement is 4.75 inches
- "F" measurement is 5/8-11 UNC
- "G" measurement is 5/8-18 UNF
- Inlets are 3/8-18 NPTF
- Y measures 2.25 inches
- Package quantity of 12
Includes
TR3036TS brake chamber
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
MGM 3532954X
Specifications
| Brand | mgm brakes |
| Model Number | TR3036TS |
| MPN | 3532954X |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This TR3036TS brake chamber is designed for Severe service, parking brakes. The TR-TS model with composite guide corrosion fighter technology (T30 spring side models only) features a tamper-resistant design and externally stored released bolt with epoxy-coated head and center hole shield. It offers an epoxy-coated return spring (spring size is 36); 360 aluminum center case and weatherseal plug in addition to a heavy-duty nylon neoprene diaphragm and steel non-pressure chamber (6 gauge standard on Type 36 models). This severe service brake chamber with neoprene double diaphragm and breather tube plus welded yoke contains a service size of 30; port size measurement of 3/8-18 NPTF and a standard stroke of 2.5 inches. Additionally, it contains a 5/8-11 inch mounting bolt thread and 1.54 inch mounting bolt length. Its "A" measurement is 9.86 inches; "B" measurement is 7.52 inches; "C" measurement is 8.31 inches; "D" measurement is 9.18 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8-18 NPTF. Y measures 2.25 inches. Package quantity of 12. |
