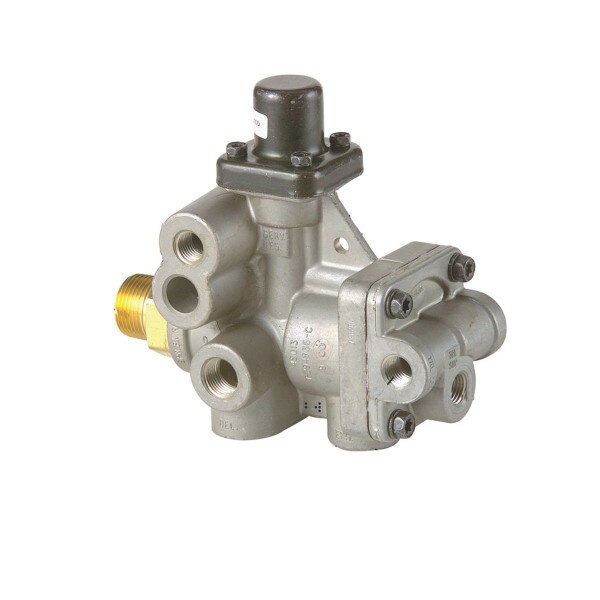

Bendix SR-5 Trailer Spring Brake Valve - K033226

*THIS PART IS NON-RETURNABLE*

Product Description

Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.

This Bendix SR-5 Series Trailer Spring Brake Valve uses pressure from the supply line in order to release the spring brakes. It's built with an anti-compounding feature in design. It's delivery port size of 5/8 of an inch and supply port size is 1/4 of an inch.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• SR-5 Series Trailer Spring Brake Valve
• Uses pressure from the supply line in order to release spring brakes
• Anti-Compounding feature in design
• 0.625 in. Delivery Port Size with NPT ports
• 0.25 in. Supply Port Size with NPT ports

Includes

Includes One (1) Spring Brake Valve

Specifications
