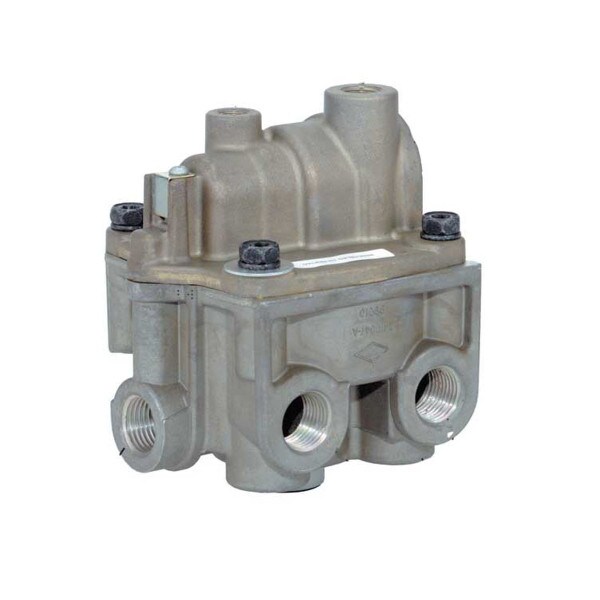

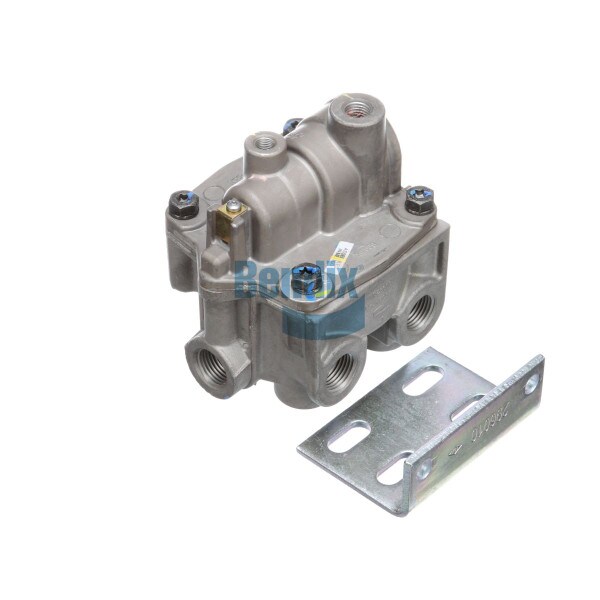

  • Bendix Brake Proportioning Relay Valve - 065146 - 65146N

Bendix Brake Proportioning Relay Valve - 065146 - 65146N

Back

Details

Air brake parts can fail after miles of overuse - usually from tapping brakes on steep inclines that lead to overheating. Brake parts including brake pads, camshafts and relay valves can be replaced after 30,000+ miles. While some parts may last longer, it is important to always perform routine maintenance to care for the components that make up air brake systems. When in need of replacement parts, turn to Bendix, a trusted leader in air brake technology.


This obsolete part is the replacement for Bendix BP-R1 and was also replaced by Bendix 65146N. It features Bobtail Proportioning and contains a control port of 1/8 inches; (4) delivery port measuring 3/8 inches; a service port measuring 1/4 inches and a supply port measuring 1/2 inch. Crack pressure is 5.5 PSI.


This product comes with a one year warranty.


Bendix Commercial Vehicle Systems (Bendix) is a leading innovator in air brake system technology for medium and heavy-duty commercial vehicles. Trust Bendix when in need of replacement air brake parts for Freightliners, Mack, Volvo, Peterbilt and other big rigs!


Back

Cross References

14QK3116M, 14QK493M, 1660846C91, 1660846C92, 21010744, 21067501, 21155033, 21436094, 3558089C1, 3558089C2, 3558089C3, 3558989C1, 3558989C2, 3868266C1, 65146, 65146N, 83101, 85925, 859256514621010000, A85925, AMS600163, AMS65146, AMS660238, EM56880, M85925, R955065146N, S-C518

Back

Specifications

Delivery Port0.375 in. - NPT
Control Port0.125 in. - NPT
Supply Port8492
Crack Pressure4434
Series8493
BrandBendix
Supersedes65146N
MPN065146
ColorGrey
VMRS12-010-222
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Benefits

This obsolete part is the replacement for Bendix BP-R1 and was also replaced by Bendix 65146N. It features Bobtail Proportioning and contains a control port of 1/8 inches; (4) delivery port measuring 3/8 inches; a service port measuring 1/4 inches and a supply port measuring 1/2 inch. Crack pressure is 5.5 PSI.


Features

  • Designed for select commercial vehicles
  • Made from a durable construction

Includes

Brake Proportioning Relay Valve


Warranty

1 year
