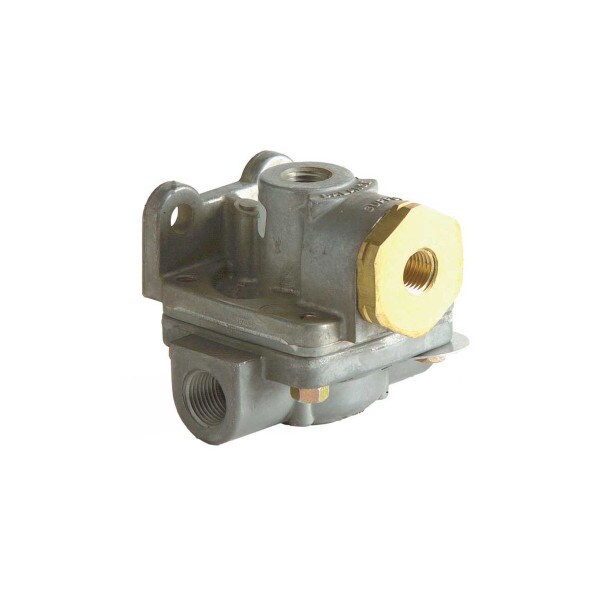

Bendix QR-1C Brake Quick Release Valve - 109094N
Details
Product Description
The unexpected can take a backseat when you have Bendix on your side. Bendix air dryers, valves and ABS parts are just what truck drivers need to keep them up-and-running.
This QR-1C quick release valve is for heavy-duty trucks. The job of this Bendix quick release valve is to prevent the service and emergency brake application from occuring at the same time. This valve works as both a double check valve and a quick release valve and is often mounted on the axle - servicing two spring brake actuators. It has a beaded seat cap nut and a bias design to prevent low differential leakage. This particular valve contains supply and balance port measurements of 1/4 inch NPT and delivery port measurements of 3/8 inches NPT. Its exhaust port is unthreaded and it features a crack pressure rating of 5-8 PSI.
Product warranty is as follows: 1 year / 12,000 miles.
Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.
Features
- Beaded seat cap nut and a bias design
- Supply and balance port measurements of 1/4 inch NPT
- Delivery port measurements of 3/8 inches NPT
- Exhaust port is unthreaded
- Crack pressure rating of 5-8 PSI
Includes
QR-1C quick release valve
Warranty
1 year / 12,000 miles
Cross Reference
Bendix 109094N Cross References
034012, 034012VEL, 109094, 109094BXW, 13AV4543, 289714, 289714BXW, 3081462, 3512492, 3523016, 5396-KN32041, 5396KN32041, 6814290244, 6814290544, 6814290644, 72901-0014, 729010014, 745-800348, 745109094, 745800348, 767653011158, 800348, 800348BXW, 800348RT, 9340990100, 9340990150, 9340990200, 9340990260, ACA-09479700, AV289714, BAN800348, BEN800348, BW800348, BX800348, D29880003, E-MDKN32041X, EMDKN32041X, HDXKN32041, KN32041, MBIKN32041, MKN32041, N20952AD, N20952AE, N20952AF, N20952BA, RKN32041, RN20952AD, RN20952AF, S-9749, S9749, TECTV289714, TV289714, TV289714TEC, TWDBEN800348, VEL034012, VN20952AF, WA289714, WABWKN32041, ZAC800348, ZZKN32041
Specifications
| Delivery Port | 0.375 in. - NPT |
| Supply Port | 8092 |
| Crack Pressure | 8540 |
| Series | 8539 |
| Brand | Bendix |
| MPN | 109094N |
| Color | Grey |
| Width | 1 in. |
| VMRS | 13-010-008 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This QR-1C quick release valve is for heavy-duty trucks. The job of this Bendix quick release valve is to prevent the service and emergency brake application from occuring at the same time. This valve works as both a double check valve and a quick release valve and is often mounted on the axle - servicing two spring brake actuators. It has a beaded seat cap nut and a bias design to prevent low differential leakage. This particular valve contains supply and balance port measurements of 1/4 inch NPT and delivery port measurements of 3/8 inches NPT. Its exhaust port is unthreaded and it features a crack pressure rating of 5-8 PSI. |
