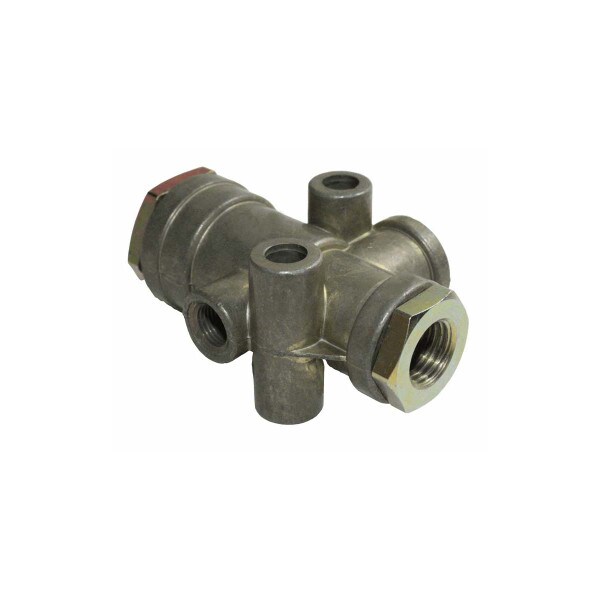

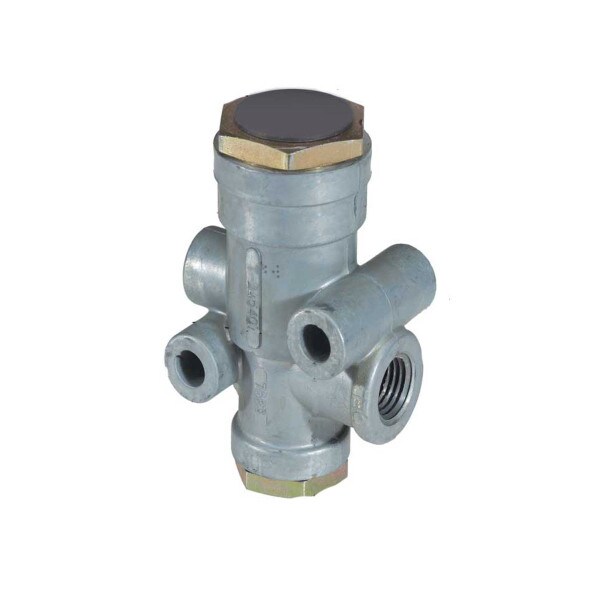

Bendix TR-3 Brake Inversion Valve - 101450 - 101450N

Product Description

The unexpected can take a backseat when you have Bendix on your side. Bendix air dryers, valves and ABS parts are just what truck drivers need to keep them up-and-running.

This TR-3 inversion valve is for detecting primary reservoir system failure. This Bendix inversion valve is primarily used in emergenvy and parking brake systems. It contains .280 in. (2x) mounting; a max operating temperature of 200F and a minimum operating temperature of -40F. With dust shield, it offers a delivery and supply port measurement of 1/4-18 inch NPT and a control port measurement of 1/8-27 inch NPT. Its Inlet Opening Descending Pressure Common Control is 25 PSI; Exhaust Opening Ascending Pressure Common Control is 40 PSI and Inlet Opening Pressure Constant Supply Variable is 8 PSI.

Product warranty is as follows: 1 year / 12,000 miles.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• .280 in. (2x) mounting
• Max operating temperature of 200F
• Minimum operating temperature of -40F
• Dust shield
• Delivery and supply port measurement of 1/4-18 inch NPT
• Control port measurement of 1/8-27 inch NPT
• Inlet Opening Descending Pressure Common Control is 25 PSI
• Exhaust Opening Ascending Pressure Common Control is 40 PSI
• Inlet Opening Pressure Constant Supply Variable is 8 PSI

Includes

TR-3 inversion valve

Warranty

1 year / 12,000 miles

Cross Reference

10015391, 107425, 1078466, 108620, 12420769, 128686, 12900232, 13345, 1340638, 1484602400, 1617036C91, 170.281459, 170281459, 2000965, 2038838C91, 20813004, 2088167, 20QE2123, 20QE2123R, 25049000261, 25AB0680, 281459, 281459B1, 281459N, 281459P, 281459RX, 281459X, 30733, 312469, 3530240, 3Z2313, 41902936, 430026, 46574AX, 46574AY, 56350, 625097C91, 6300281459, 640471, 6792885, 6977024, 70312469, 722010021, 745-281459N, 745281459N, 8096210, 87423207, 88167, AC1E100, ACA-0765C700, ACA0765C700, AV281459, BAN281459N, BEN281459N, BND281459N, BW281459, BW281459N, BX281459N, C8HS2B139A, E9HS2B431AA, E9HZ2B431AA, F7HS2B431AA, FRL 42035302, HO055226-0, LIV-5216, OR281459X, RH103184, S-C567, SC567, TWDBEN281459N, V6792885, WA281459
