Bendix NG-3 Spring Brake Chamber Size 18/16 - 802513

Product Description

Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.

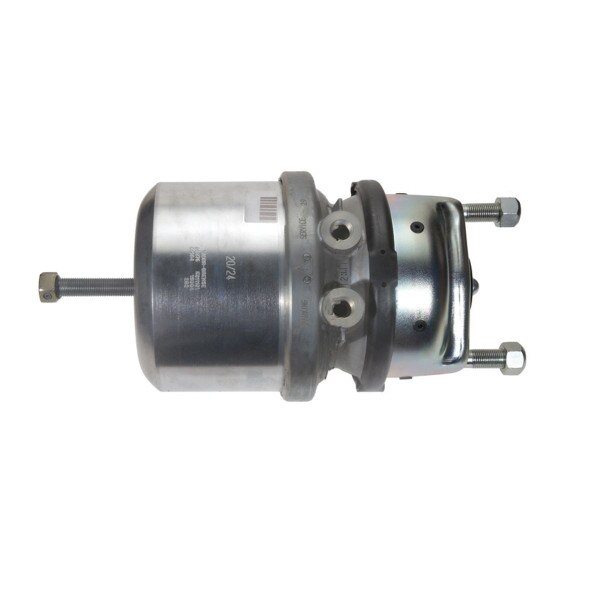

This Bendix NG-3 Series Spring Brake Chamber is a piston style spring brake. This particular spring brake has size T18/16 brake chambers with a thread diameter of 3/8 in. The stroke size comes in at 2.25 in. and is considered a standard stroke spring brake.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• NG-3 Series Piston Style Spring Brake Chamber
• Size T18/16 Spring Brake Chambers
• Standard Stroke Spring Brake
• 2.25 in. Stroke Size
• Thread Diameter of 3/8 in. with 18 NPTF ports

Includes

Includes One (1) Spring Brake Chamber Assembly
