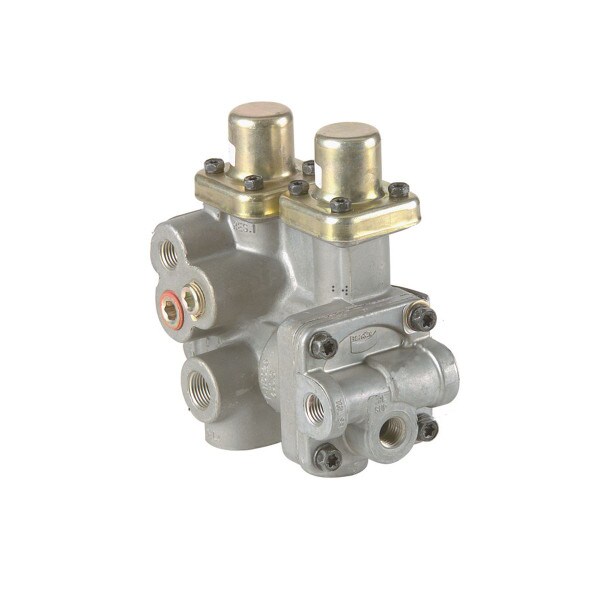

Bendix Reman SR-4 Trailer Spring Brake Valve - OR101112X

Product Description

Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.

This Bendix SR-4 Series Trailer Spring Brake Valve uses a dedicated spring brake reservoir to release the trailer spring brakes. This valve is built with an anti-compounding feature in it's design. It's delivery and supply ports are 3/8 an inch in size and it's thread diameter is 3/4 of an inch. This particular valve is a remanufactured product.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• SR-4 Series Trailer Spring Brake Valve
• Uses a dedicated spring brake reservoir for release of trailer spring brakes
• Anti-Compounding feature in design
• 0.375 in. Delivery Port Size with NPT ports
• 0.375 in. Supply Port Size with NPT ports
• 0.75 in. Thread Diameter
• Remanufactured

Includes

One (1) Trailer Spring Brake Valve

Cross Reference

050A-0064, 050A0064, 065439P, 1-0025, 10024, 10024M1D, 10024P, 10025, 10028, 10028P, 10029, 10029P, 1010024, 1010028, 10111, 101112, 101112RX, 101112X, 101112XX, 101113, 101113R, 10113, 101622, 101622X, 108076, 108945, 109615, 109615X, 109615XC1, 109617, 109617X, 109617XC5, 110147, 110171, 110180, 110180N, 110180X, 110190, 110190N, 110190X, 110191, 110230, 110315, 110315X, 110500, 1105000X, 110505, 110700, 110800, 1112013, 1112XX, 1119493, 1191982, 12-012, 12-012-100, 12-0167, 12011100, 12012, 12012100, 12012C, 120163, 120167, 12017, 12360, 12362, 1240403, 1240404, 13630, 15440, 16010, 1662836C91, 170.065439, 170.KN26020, 170KN26020, 1791010, 1791013, 179SB2424S, 179SB2424SL, 2-70-28X, 2-70-28XR, 2.70.28X, 20705, 2104-27028X, 210427028X, 213630, 2424005, 2424008, 2424C, 2424GC, 2424GSSB, 2424HDA, 2424PHD, 2424SB, 2424T, 2424TOAC, 2424TSTD, 2424TSTDC, 248579, 2604178, 27028X, 27028X-SP, 27028XR, 27028XSP, 3127051, 3128051, 32424C, 3426051, 3427051, 3427051-MGM, 3427051MGM, 35005, 35007, 35141, 3516038, 36001, 36003, 360091, 42007254, 42424CD, 441737, 441738, 450059, 4810024P, 4810028P, 4810029P, 48579, 48Y108, 49210, 5007130, 51301, 52424005, 5396-KN26000, 5396-KN26020, 539610024, 539610028, 5396101112X, 5396KN26000, 5396KN26020, 5554-3427051, 55543427051, 55B115, 55B215, 65437, 65438, 65439, 65439X, 745-248579, 745-K033223, 745-OR101112X, 745248579, 745K033223, 745OR101112X, 767653010540, 77065439, 800829, 81011525, 838108, 85105237, 906300, 90631, 906310, 906314, 9149959, A104001, A36001, A83335, A83336, A88802, A88812, ABPN42A42424CD, AV065439, AV101112, AV26020, AVKN26020, AY32424C, B2424GC, B433276X224, BA1240404, BANK033223, BBH-110147, BBH-110171, BBH-KN26010, BBH110147, BBH110171, BBHKN26010, BC1240403, BC15440, BD2156, BE065437, BE101112, BE101112X, BE213630, BE248579, BENOR101112X, BENOR109615X, BESR4, BG10024, BG10028, BG10029, BG101112X, BG10405, BG1509, BG15440, BGI10024, BGI10028, BGI10029, BGI15440, BGMA15440, BH065439, BH248579, BH5007130, BH65437, BH65439, BLS2424T, BN101112X, BNDK033223, BNDOR101112X, BP213630, BP248579, BPM312, BS2424T, BV101112, BV101112X, BV101622, BW065437, BW065438, BW065439, BW101112, BW101112X, BW101622, BW101622X, BW108076, BW109615X, BW213630, BW248579, BW5007130, BW65437, BW800829, BWBW065439, BWBW248579, BWBWR101112, BWBWR109615, BWK033223, BWOK033223, BWOR101112X, BWR101112, BWR101112X, BWR101622, BWR109615, BWR109615X, BWS213630, BWS248579, BWSR101112, BWSR101622, BWSR4, BWTYPE24, BX101112, BX101112X, BX101121, BX109615, BX109615XC1, BX109617X, BX109617XC5, BX248579, BXK033223, BXOR101112X, BXR101112, BXR101112X, BXR109615, BXR109615X, BXSR4, BXSR5, BXX101112, C2424LS, CL2424, CL32424C, CN386, CQ101113, CQ10113, D10024, D10028, D10029, D101112X, D27028X, E-BN065439N, E27028X, E9111, EAEBN101112X, EBN101112X, ECE9111, EGC2424, EGC2424LS, EM24240001, EM56640, EM56830, ESL110500X, EUE9111, EUEBN101112X, EUEGC2424, EUEGC2424LS, EUESL110500X, EUM314, FDS2424T, FG22231, FLTC2424SB20, FP10024P, FP360091, FRLS2424T, FRS2424T, FS065439N, FVBWR101112, FVMID10029, G5GT2002, G5GT2600, G5GT2604, G5GT36001, GC2424, GC2424LS, GH10028, GH20024, GH20028, GH20029, GHSEAL, GLH2600, GT2002, GT2600, GT2604, GT36001, H2101112X, HABLS2424T, HAKN26020, HALGC2424, HALKN26020, HB10024, HDXKN26020, HKN26020, HM10029, HQ10024P, HQ10028P, HQ10029, HQ10029P, HQ360091, I10024, I10028, I10029, I15440, I2424SB, IMGT-2600, K033088, K033223, K033223BXW, K10028, K27028, KN26000, KN26000X, KN26010, KN26020, KN26020-MD, KN26020MD, KN26020X, L035005, LS2424T, LTBLS2424T, LTBS2424T, M12011, M82424, MA15440, MB10024, MB10028, MB10029, MB101112X, MB15440, MBI10024, MBI10028, MBI10029, MBIKN26020, MBMA15440, MD10024, MD10028, MD10029, MD101112X, MD15440, MD248579, MDMA15440, MG3127051, MG3128051, MG3426051, MG3427051, MGM3427051, MHD-KN26020, MHDKN26020, MI-KN26020, MI10024, MI10028, MI10028P, MI10029, MI101112X, MI15440, MI539610024, MI539610028, MI5396101112X, MID/10024, MID10028, MID10029, MID101112X, MIDKN26020, MIKN26000X, MIKN26020, MIMA15440, MKN26020, MQ3426061, MS3600001, MSBW065439, MSBX101112X, MSMD10028, MSMX101112X, MTAKN26000, MX101112X, N101112X, N1072B, N4305A, N4305C, N4305D, NA450059, ND10028, NUJ2604178, NW2424005, NW52424005, OB2424SB, OBI2424SB, OR109615X, OTR065437, OTR101112, OTR2424SB, OV2424, P065439, P101112, P109615, P213630, P248579, PC12011, PC12012, PH11012, PH12011, PH12011100, PH12012, PH12012C, PH120163, PH12017, PHL12012, PHM12011, PM12011, PP01295, PP10029, PRE-360-10, PRE-492-10, PRE-530, PRE-530-10, PRE36010, PRE49210, PRE530, PRE53010, QD2424SB, R10028, R101112, R101112X, R101622, R109615, R109615X, R955065437, R955065439, R955065439N, R955101112, RKN26020, S-21711, S-A530, S-B609, S101112, S213630, S2424T, S248579, SA530, SB609, SE110500, SE1105000X, SEA110171, SEA110191, SEA110700, SEA110800, SLO 441749, SP27028X, SPI-2-70-28X, SPI27028X, SR101112, SR101622, SV441736, SV441737, SV441738, T536003, TA36001, TE2424TOAC, TEC10111, TEC16110, TECTV26020, TI36003, TM101113, TM16010, TM2424C, TM36003, TMBLS2424T, TMLS2424T, TMS2424T, TR36003, TS2424T, TS2424TOAC, TS2424TSTD, TS2424TSTDC, TSE2424T, TSTSE2424T, TT10111, TT36001, TV10111, TV101112, TV26020, TV26020TEC, TWD27028X, TWDBENOR101112X, TWDHKN26020, TYPE24, UJ492-10, UJ49210, VE035005, VE035007, VE55B115, VE55B215, VEL035005, VL035007, VL55B115, VL55B215, VV035005, VV035007, VV36001, VV36003, VV55B115, VV55B215, W13630, WA65439, WHW13630, X101112, XZ108076, ZAJ3427051, ZZ10024, ZZ108076, ZZGC2424, ZZKN26010, ZZKN26020, ZZKN26020X

Specifications
