Meritor Genuine AY-REAR HUB/DRM - 1415728102

Product Description

HYDRAULIC BRAKE - HUB AND DRUM ASSEMBLY

Warranty information may be based on the product and application. Please contact us for additional information.

Meritor Genuine has been at the top of the trucking industry for an extremely long time, and the Meritor Genuine AY-REAR HUB/DRM - 1415728102 is the result of their commitment to making sure that truckers have the best possible products running their semi-trucks.

Features

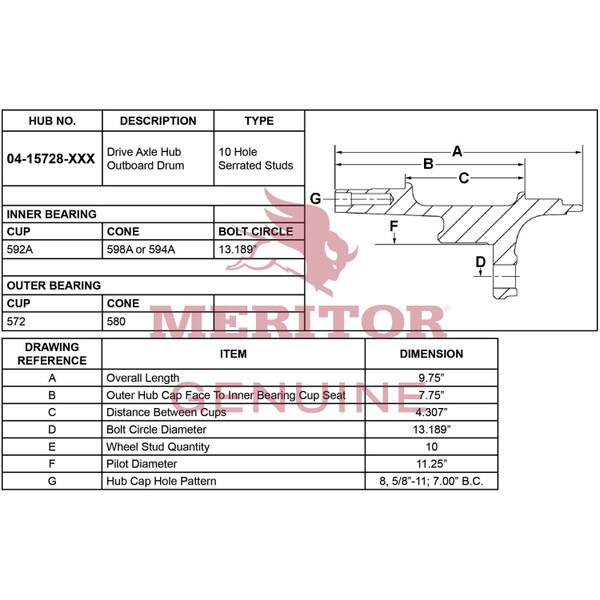

• ABS Pilot Diameter: 6.775/6.778 in.
• Axle Series: R
• Base Part Number: 15728
• Brake Type: Drum
• Drive Flange Stud: R005800
• Drive Stud Pattern: 08
• Drive Stud Thread: 5/8-11 UNC-3B
• DriveStud Bolt Circle Dia: 7.00 in.
• Drum Bolt Circle Diameter: 13.189 in.
• Drum Bolt Pattern: 10
• Drum Bolt Size: .904/.906 in.
• Drum Number: 85-123025-002
• Drum Pilot Diameter: 11.250/11.247 in.
• Drum Position: Outboard
• Flange Outer Diameter: 14.675 in.
• GAWR (lb): 26000
• IBS to OBS: 4.327/4.287 in.
• IBS to Outer Surface: 7.767/7.727 in.
• Inner Bearing Surface (IBS) to Mounting Face: 1.19 in.
• Inner Cone: 594A
• Inner Cup: 592A
• Oil Seal: A1205Q2487
• Outer Cone: 580
• Outer Cup: 572
• Tone Ring: Y
• Wheel Pilot Diameter: 11.055/11.047 in.
• Wheel Stud: 09-001989
• Wheel Stud Bolt Circle Diameter: 13.189 in.
• Wheel Stud Hole: .904/.906 in.
• Wheel Stud Pattern: 10

Includes

Meritor Genuine AY-REAR HUB/DRM - 1415728102

Warranty

Warranty information may be based on the product and application. Please contact us for additional information

Specifications
