Meritor AY-HUB/STUD - 0515977002
Details
Product Description

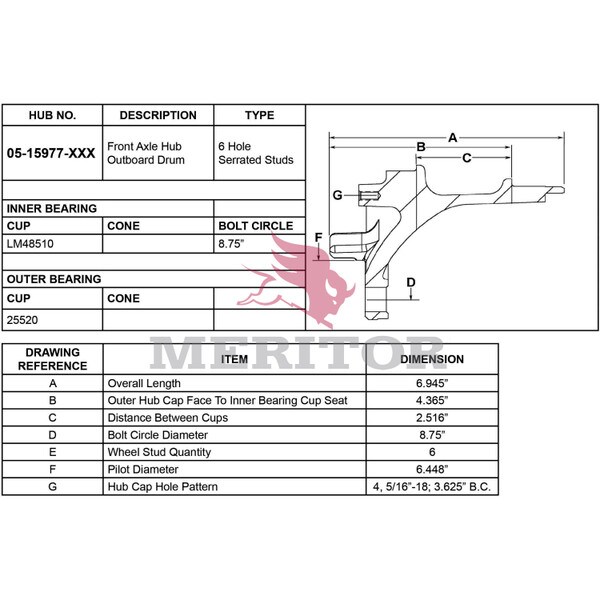

HYDRAULIC BRAKE - HUB AND STUD ASSEMBLY
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor AY-HUB/STUD - 0515977002 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- ABS Pilot Diameter: 3.745/3.743 in.
- ABS Ring Number: 09-002220
- Axle Application: Steer
- Axle Series: MFS6
- Base Part Number: 15977
- Brake Type: B-Frame
- Disc Bolt Circle Diameter: 7.50 in.
- Disc Bolt Pattern: 06
- Disc Bolt Size: .520/.540 in.
- Flange Outer Diameter: 10.651 in.
- Fully Dressed: No
- GAWR (lb): 6000
- Hub Cap Bolt Circle Diameter: 3.625 in.
- Hub Cap Bolt Thread: 5/16-18 UNC-2B
- Hub Cap Pattern: 04
- Hub Style: Conventional
- Hub Type: Hub only
- IBS to OBS: 2.536/2.496 in.
- IBS to Outer Surface: 3.976/3.936 in.
- Inner Bearing Surface (IBS) to Mounting Face: 4.783 in.
- Inner Cone: 25590
- Inner Cup: 25520
- Oil Seal: A1205Q2695
- Outer Cone: LM48548
- Outer Cup: LM48510
- Rotor Pilot Diameter: 6.501/6.498 in.
- Tone Ring: Y
- Wheel Pilot Diameter: 6.450/6.446 in.
- Wheel Stud: 09-002225
- Wheel Stud Bolt Circle Diameter: 8.75 in.
- Wheel Stud Hole: .796/.798 in.
- Wheel Stud Pattern: 06
Specifications
| Brand | Meritor |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
