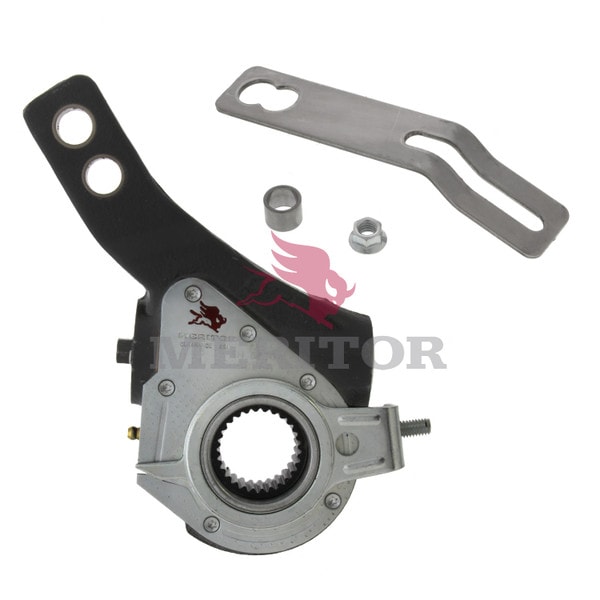

Meritor ASA - R806026A

Product Description

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 2 Years / 200K Miles
• Angle: 34 degrees
• Application: Drive
• Arm Length: 5.50 in. or 6.50 in.
• Brake Size: 16.50 in.
• Bushing Inside Diameter: 0.625 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Standard version. Premium version is M807026. Self-setting alternative is M808026.
• OEM: Haldex
• Production Part Number: 409-10653
• Related Bracket Number: R810300
• Sensing Type: Clearance
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

00-20105, 00-20125, 03-07646, 0307646, 05-663, 05663, 065171, 10-400-10141, 101261, 102117/18, 10211718, 10345905, 10345908, 10345911, 1040010141, 10480801, 10628, 106902, 107402, 107403, 107421, 107536, 107788, 107991, 107996, 1332831, 1352831, 1392832, 1694309C91, 1694317C91, 20105, 20125, 2507740C91, 25QD259P8, 25QD340P12, 25QD351M, 25QD351M2, 25QD410P3, 289314/15, 28931415, 2R803048, 315333, 317507, 3398-AS1042, 3398AS1042, 3518951, 3520576, 3918361, 3946254, 3947646, 3949413, 400-10008, 400-10011, 400-10070, 400-10081, 400-10101, 400-10106, 400-10133, 400-10146, 400-10180, 400-10181, 400-20227, 400-20241, 400-20304, 40010008, 40010011, 40010011M1D, 40010070, 40010081, 40010101, 40010106, 40010133, 40010141, 40010141-MD, 40010141M1D, 40010141MD, 40010146, 40010154, 40010156, 40010180, 40010181, 40020211, 40020227, 40020229, 40020230, 40020241, 40020304, 409-10091, 409-10094, 409-10126, 409-10150, 409-10174, 409-10197, 409-10215, 409-10222, 409-10227, 409-10228, 409-10229, 409-10236, 409-10237, 409-10240, 409-10312, 409-10390, 409-10406, 409-10407, 409-10408, 409-10416, 409-10429, 409-10444, 409-10506, 409-10512, 409-10530, 409-10532, 409-10551, 409-10553, 409-10580, 409-10628, 409-10650, 409-10653, 409-10665, 409-10679, 409-10682, 409-10814, 409-10861, 409-10870, 409-10872, 409-10890, 409-10893, 409-10894, 409-10895, 409-10949, 409-10979, 409-416, 40910091, 40910094, 40910126, 40910150, 40910174, 40910197, 40910215, 40910222, 40910227, 40910228, 40910229, 40910236, 40910237, 40910240, 40910312, 40910390, 40910406, 40910407, 40910408, 40910416, 40910429, 40910444, 40910506, 40910512, 40910530, 40910532, 40910551, 40910553, 40910580, 40910628, 40910650, 40910653, 40910665, 40910679, 40910682, 40910814, 40910861, 40910870, 40910872, 40910890, 40910893, 40910894, 40910895, 40910949, 40910979, 409416, 4311262, 4W8000, 4W8155, 500-10141, 50010141, 506270, 506728, 507033, 509-10126, 509-10150, 509-10174, 509-10229, 509-10240, 509-10390, 509-10406, 509-10408, 509-10429, 509-10532, 509-10535, 509-10553, 509-10653, 50910126, 50910150, 50910174, 50910229, 50910240, 50910390, 50910406, 50910408, 50910429, 50910532, 50910535, 50910553, 50910653, 516161, 5396-40010011, 5396-40010141, 539640010011, 539640010141, 556528, 65171, 737238562634, 767653142968, 767653143378, 7883-40010011, 7883-40010141, 788340010011, 788340010141, 805812, 808115, 808132, 808134, 808141, 808151, 808169, 808171, 808178, 808691, 808692, 809612, 810047, 810600, 810602, 810731, 810843, 811120, 811121, 811336, 812351, 812568, 812701, 815788, 815793, 815807, 815812, 818221, 818553, 819088, 8235-R802685, 8235R802446, 825366, 8311615, 85108825, 974290, A1-3275-Q-1083S, A1-3275-R-1084S, A1-3275-W-1089S, A1-3275-X-1090S, A1-3275A1119, A1-3275Z1118S, A12-3275C601S, A12-3275W595S, A123275C601S, A123275W595S, A13-3275-N-768S, A13275A1119, A13275Q1083S, A13275R1084S, A13275S1059, A13275W1089S, A13275X1090S, A13275Z1118S, A133275N768S, A143275S1059, A15-3275C601S, A15-3275W595S, A153275C601S, A153275W595S, A16-3275-A-599S, A163275A599S, A17-3275-A-599S, A17-3275-U-593S, A173275A599S, A173275U593S, A18-3275-B-600S, A18-3275-N-768S, A18-3275-U-593S, A183275B600S, A183275N768S, A183275U593S, A19-3275-N-768S, A193275N768S, A2-3275-A-1119S, A2-3275-N-768S, A2-3275-W-1089S, A2-3275-X-1090S, A2-3275A1119S, A2-3275C601S, A2-3275P718S, A2-3275W595S, A2-3275W59S, A2-3276-A-599S, A21-3275-A-599S, A21-3275-N-768S, A21-3275-U-593S, A213275A599S, A213275N768S, A213275U593S, A23-3275-H-1152S, A23-3275-N-768S, A23275A1119S, A23275A599, A23275A599S, A23275C601, A23275C601S, A23275J634, A23275N768S, A23275P718S, A23275U593, A23275U593S, A23275W1089S, A23275W595, A23275W595S, A23275W59S, A23275X1090S, A23276A599S, A233275H1152S, A233275N768S, A2375W595, A24-3275-N-768S, A243275N768S, A29-3275-A-599S, A29-3275-U-593S, A293275A599S, A293275U593S, A33-3275-N-768S, A333275N768S, A34-3275M1079, A343275M1079, A4-3275P718S, A423275S1059, A43-3275-Z-1144S, A43275P718S, A43275S1059, A433275Z1144S, A44-3275-A-1145, A44-3275-A-599S, A44-3275-U-593S, A44-3275-Z-1144, A443275A1145, A443275A599S, A443275U593S, A443275Z1144, A463275Z1144S, A5-3275-N-716S, A53275N716S, A56-3275-A-599S, A56-3275-U-593S, A563275A599S, A563275U593S, A633275Z1144S, ABPN42AS40010141, ACCAS1140, APA0994-2, APA09942, AS1040, AS1042, AS1140, AS1142, AS1151, ASA123, ASH40010141, B23275J634, BBH-RB-10141, BBHRB10141, BNDK043197, BP10141, BXK043197, CI22102, CI221A2, CR802446, CS52320, CS52347, CS52352, CS52356, CS52364, CS56001, CS56040, CS56042, CS56049, CS56051, CS56051M1D, D00-20011, D0020011, DLR802446, E-091K, E-11403, E-11873, E-11902, E-168K, E-168K1, E-215K, E-229K, E-236K, E-237K, E-240K, E-6919, E-6919A, E-6920, E-6927, E-6927A, E-6927B, E-6945, E-6994, E-6994A, E091K, E11403, E11417, E11417A, E11873, E11902, E168K, E168K1, E215K, E229K, E236K, E237K, E240K, E6919, E6919A, E6920, E6927, E6927A, E6927B, E6944, E6994, E6994A, FLT40010141, FLTAS1140, GT-56141, GT56141, GTA-40010141, GTA40010141, GUN AS1042, GUNAS-1140, GUNAS1042, GUNAS1140, HA-400-10141, HA40010141, HAE40010141, HAL40010011, HAL40010141, HDX400-10141, HDX40010011, HDX40010141, HRR806026A, HSA-5045, HSA5045, HX400-10141, HX40010141, K043197, K043197BXW, KN44061, KN52240, KN52241, KN52242, KN52243, KN52244, KSA10141, M3916, M393458, M3959K, M3968, M3992K, M807026, MB22102, MB22182, MB42101, MBI40010141, MBR802446, MID40010011, MID40010141, MK22100S, MK22102S, MK22102SG, MK42100S, MK42100SJ, MK72100S, N42AS, OTR10141, PL-10141, PL10141, PLR802446, PROSA56141, R2R802446, R801076, R801078, R801080, R801081, R802179, R802180, R802181, R802444, R802445, R802446, R802500, R802501, R802502, R802503, R802504, R802505, R802510, R802511, R802512, R802513, R802648, R802649, R802680, R802681, R802684, R802685, R803046, R803047, R803048, R803049, R803050, R803051, R803052, R803053, R803109, R803196, R803198, R806004, R806019, R806026, RB-10141, RB10141, RBA23275U593S, RBA563275U593S, RBR802446, RBR803048, RBTDAR802446, RDR802446, RI737238562634, ROCR802446, ROR802446, RSR802446, RSR802685, RSR803048, RWR802446, S-23850, S23850, SA00202, SA00203, SA00204, SA00501, SA00503, SA00902, SA00903, SA00904, SA00906, SA00908, SA01201, SA01203, SA01204, SA01901, SA02203, SA02207, SA02501, SA03501, SA03601, SA04201, SA04401, SA04802, SA05501, SA05503, SA05504, SA05801, SA05803, SA05804, SA07002, SA07012, SA07013, SA07102, SA07202, SA07204, SA07212, SA08102, SA08104, SA08402, SA08902, SA08904, SA08912, SA09202, SA09204, SA09212, SA10101, SA10202, SA10211, SA10212, SA10802, SA10804, SA10812, SA11102, SA11302, SA1140A, SAB40910628, SAP10141, SAS1004, SAS1008, SAS1009, SAS1012, SAS1020, SAS1022, SAS1023, SAS1026, SAS1029, SAS1030, SAS1040, SAS1042, SAS1047, SAS1054, SAS1059, SAS1061, SAS1140, SAS1149, SAS1165, TDAR802446, TDAR803048, WA10141, ZBRAS1040, ZBRAS1042, ZBRAS1140, ZBRAS1142, ZSA40010141, ZZ40010011, ZZ40010141
