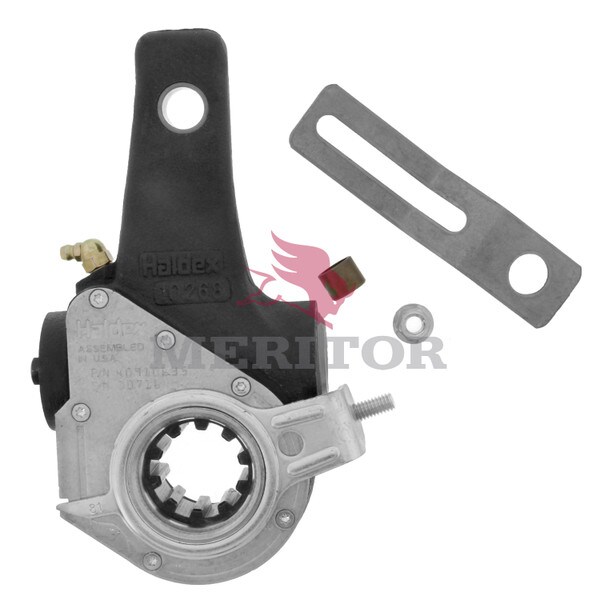

Meritor ASA - R806002A
Details
Product Description
AIR BRAKE - ASA - HALDEX AA1 STYLE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor ASA - R806002A is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Aftermarket Extended Warranty - Linehaul: 2 Years / 200K Miles
- Angle: 0 degrees
- Application: Drive
- Arm Length: 5.50 in.
- Brake Size: 16.50 in.
- Bushing Inside Diameter: 0.625 in.
- Clevis Type: Unclevised
- Maximum Torque Rating: Less than 15 foot pounds
- Model: AA1 Replacement
- Notes: Standard version. Premium version is
- OEM: Haldex
- Production Part Number: 409-10635
- Related Bracket Number: R810306
- Sensing Type: Clearance
- Slack Spline Count: 10
- Slack Spline Diameter: 1.50 in.
- Type: Unhanded
Includes
Meritor ASA - R806002A
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
R806002, R806002A
Specifications
| OE Manufacturer | Haldex Replacement |
| Slack Spline Count | 4027 |
| Clevis Type | 4024 |
| Brand | Meritor |
| MPN | R806002A |
| UPC | 884879829654 |
| VMRS | 013-017-005 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | ASA |
