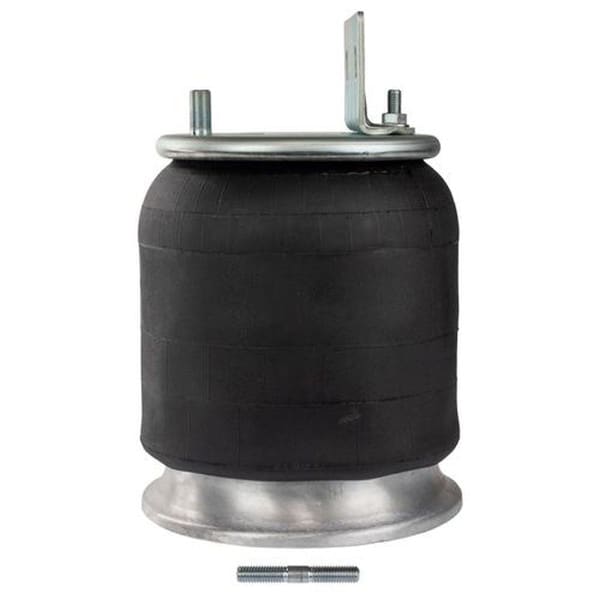

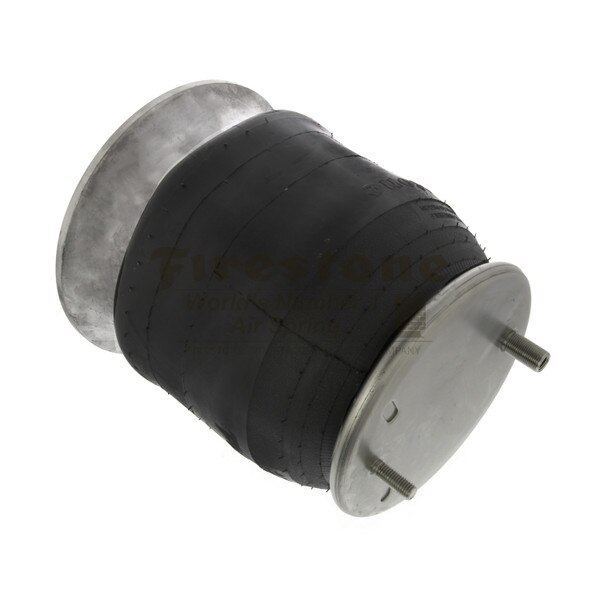

Meritor AIR SPRING - FS9781

Product Description

SUSPENSION - AIR SPRING

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - General: 3 Years / 300K Miles
• Application: Freightliner 681-320-0017, A16-14004-000 (aluminum) ; A16-17574-001 (w/o bracket); A16-17574-002 (w/o bracket); Freightliner Piston 16-13840-000 (plastic) - see W01-358-9780; Freightliner Piston 16-16773-000 (steel) - see W01-358-9782; A16-17574-001 A16-1
• Bead Plate Diameter Bottom: 10.62 in.
• Bead Plate Diameter Top: 9.00 in.
• Collapsed Height: 8.75 in.
• Convoluted Style: 1T Reversible Sleeve
• Max. Height: 23.00 in.
• Part Diameter: 10.62 in.
• Piston Height: 6.91 in.
• Stud Configuration-Bottom: 01
• Stud Configuration-Top: 02
• Stud Mount-Bottom Flat: Stud
• Stud Mount-Top Flat: Stud

Includes

AIR SPRING

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

1613840000, 1616773000, 1619465000, 1619466000, 1R12603, 1T15ZR, 1T15ZR6, 566243108, 566243275, 6813200017, 910S16A382, 9781C, A1614004000, AS9780, AS9781, FIW013589781, FLTA1R12603, FSIW013589781, HDV9781, MAF9781, W013589781, W013778527, W013778529, W013779781 018537, 10-99780, 10-99781, 10-99782, 1000-AS9780, 1000-AS9781, 1000AS9780, 1003589780C, 131612, 16-13801-000, 16-13810-000, 16-13810-000 PLA, 16-13810-000 PLASTIC, 16-13810-001, 16-13810-002, 16-13840-000, 16-13840-000 PLA, 16-13840-000 PLASTIC, 16-14004-000, 16-14004-001, 16-14377-000, 16-15595-000, 16-15595-001, 16-15595-002, 16-1673-000, 16-1673-000 STEEL16-15595-00216-15595-00116-15595-00016-14377-00016-14004-00116-14004-00016-13840-00016-13810-002A1614004000, 16-1673-000 steel, 16-16773-000, 16-19466-000, 16-19467-000, 16-19468-000, 16-19468-00016-19467-00016-16825-000, 16-19769-000, 1613810000, 1613810000 PLA, 1613810000PLASTIC, 1613810001, 1613810002, 16138100021613840000 PLA, 1613840000, 1613840000161400400016140040011614377000161559500016155950011615595002161673000 steel16194670001619468000A16140040001R12303 Plastic, 1613840000PLASTIC, 1614004000, 1614004001, 1614377000, 1615595000, 1615595001, 1615595002, 161673000, 161673000 steel, 161673000STEEL, 1616773000, 1616825000, 1619465000, 1619466000, 1619467000, 1619468000, 1619769000, 1DF23-9780, 1DF239780, 1DK23K9780, 1R12 603, 1R12-1054, 1R12-1072, 1R12-1082, 1R12-186, 1R12-189, 1R12-303, 1R12-303 PLASTIC, 1R12-603, 1R121054, 1R121072, 1R12186, 1R12189, 1R12303, 1R12303PLASTIC, 1R12603, 1T15ZR, 1T15ZR-3, 1T15ZR3, 1T15ZR6, 3040-W013589781, 352-9780, 352-9781, 352-9782, 3978001 KPP, 3978001KPP, 4529780, 493 1614365000, 493 1614377000, 566243108, 566243275, 570 1R12268, 570 1R12303, 570 566243274, 570 566243275, 570 GY1R12303, 6363, 64266, 67473, 67601, 67623, 681 320 00 17, 681-320-0017, 681-320-0017 ALU, 681-320-0017 ALUMINU, 6813200017, 6813200017 ALU, 6813200017ALUMINU, 68208, 68607, 73400, 73887, 8382, 8382P, 85101151, 8536, 880 1613810000, 880 1613810001, 880 1613810002, 880 1614377000, 880 1615595001, 880 1616528000, 880 1619468000, 880 1619769000, 880 A1614004000, 880 A1618335000, 880 A1618335001, 880 A1619468000, 880 A18335000, 9 10 S-16 A382, 9 10-16 A 382, 9 10-16 A 999, 9 10S-16 A 382, 910S-16P382, 910S16A382, 910S16P382, 9780, 9781, 9781C, 9782, A16-14004-000, A16-14004-000 ALUMIN, A16-14004-000A16-14004-000 ALU, A16-14004-001, A16-17574-001, A16-17574-002, A16-18335-000, A16-18335-001, A16-20111-001, A1614004000, A1614004000ALUMIN, A1614004001, A1618335000, A1618335001, A1620111001, AB1DF23-9780, AB1DF23-9781, AB1DF239780, AB1DF23I-A999, ABP N32 019781, ABPN32018537, APL-100076, APL-100079, AS PR9MR16-9780, AS PR9MR16-9781, AS PR9MR169780, AS RC9MR16 9780, AS-01471G, AS-0182, AS-8382, AS-8382P, AS-8999P, AS-9780, AS-9781, AS01471G, AS0182, AS8382, AS8382P, AS8999P, AS9780, AS9780A, AS9780P, AS9781, ASPR9MR169780, ASRC9MR169780, CNT AS9780, CT67473, CTH 67473 9759, CTH 67473 9759A1614004000 ALU, CTH674739759, E-FS9780, E-FS9781, FAW013589781, FI W01 358 9781, FIR/9780, FIR9780, FIW013589781, FLRTMX1R12303, FLT1R12303, FLT1R12603, FLTA1R12303, FLTA1R12603, FS9780, FS9780AG, FSIW013589780, FSIW013589781, GBH1R12303, GBH1R12603, GD1R12-603, GTK-358-9780, GTK-358-9781, GTK3589780, GY1R12303, GY1R12603, GYR1R12303, GYR1R12603, HDV-HDV9780, HDV9780, HDV9781, K-9780, M-3550, M3550, MAF9780, MAF9781, NPT 1R12-303, NPT AS9780, PR9MR16-9780, RC AS9781, RCAS9780, REAW013589780, RFS9780, S-20179, S-20991, S-22468, S-22469, S20991, S22469, SC2750, TAS AS8382, TAS9780, TAS9781, TR9780, TR9781, TWDW013589780, TWDW013589781, U71 1T15ZR6, U71 AS9780, U71 FIW013779780, U71 W013778528, U71 W013778530, U71 W013778537, W01-358-9780, W01-358-9780 PLA, W01-358-9780 PLASTIC, W01-358-9781, W01-358-9782, W01-377-8527, W01-377-8536, W01-377-9758, W01-377-9780, W01-377-9781, W01-377-9782, W01-377-9784, W01-377-9785, W013589780, W013589780 Plastic, W013589780PLASTIC, W013589781, W013778527, W013778528, W013778529, W013779758, W013779780, W013779781, W013779784, W013779785, WA01-9780, WA01-9780C, WA01-9781, WA01-9781C, WA019780C
