Meritor ROTOR W/HDWRE - M44DH802569
Details
Product Description

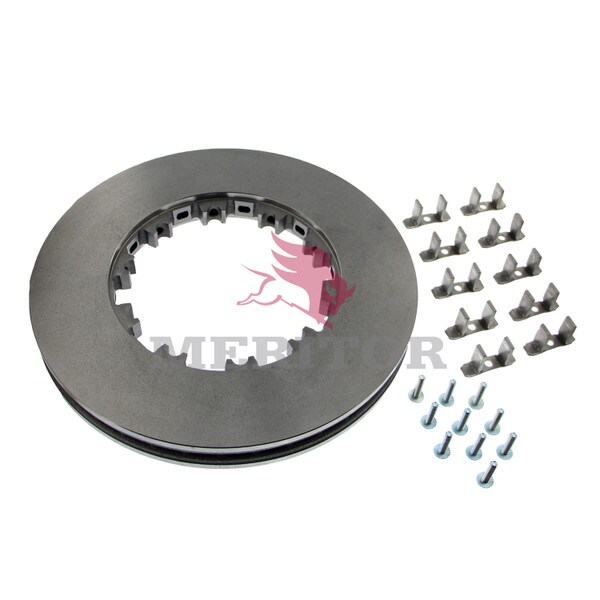

SPLINED ROTOR WITH HARDWARE
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Features
- Bolt Circle Diameter: 9 13/16 in.
- Bolt Circle Diameter (mm): 250 mm
- Bolt Hole Size: Spline
- Discard Thickness: 1 7/16 in. or 37 mm
- Mounting Holes: Splined
- New Disc Thickness: 1 3/4 in. or 45 mm
- Outside Diameter: 16 15/16 in.
- Outside Diameter (mm): 430 mm
- Pilot Diameter: 10 3/16 in.
- Pilot Diameter (mm): 258 mm
- Rotor Depth: 1 3/4 in.
- Rotor Depth (mm): 45 mm
- Type: Flat
Includes
ROTOR W/HDWRE
Warranty
Warranty depends on application and product type. Contact us to learn more.
Specifications
| Brand | Unassigned |
| MPN | M44DH802569 |
| UPC | 193174201998 |
| Width | 19.6 in. |
| VMRS | 013-017-001 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 5.2 in. |
| Benefits | ROTOR W/HDWRE |
