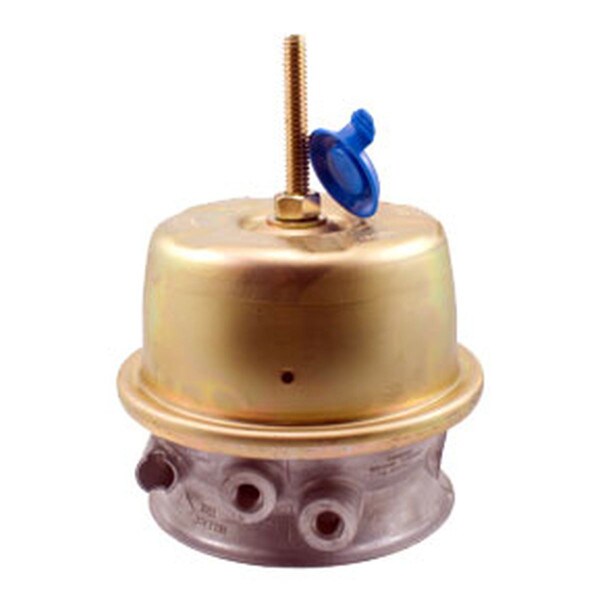

Haldex Gold Seal Combination Spring Brake Piggyback Kit - GP3036

Product Description

Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.

This Haldex Gold Seal Series Spring Brake Piggyback Kit is built with power spring technology that's superior to any other aftermarket spring brake piggybacks. It's built with a world class flexible diaphragm that operates even in temperatures as low as -40 degrees Fahrenheit. This specific piggyback chamber has size T30/36 brake chamber. Its stroke size comes in at 2.5 inches and it's classified as a standard stroke brake chamber.

This product comes with a four year, unlimited mile warranty.

Haldex is a major provider of innovative solutions for brakes to heavy duty vehicles across the globe. Haldex aims to bring the safest and most dynamic brake parts to your truck, creating a world of safer vehicles for generations to come. For unique products to operational excellence, choose Haldex to drive your future.

Features

• Gold Seal Series Combination Spring Brake Piggyback Kit
• Power Spring Technology that's superior to other aftermarket spring brakes
• World class flexible diaphragm at temperatures as low as -40 degrees Fahrenheit
• Size T30/36 Brake Chamber
• Standard Stroke
• 2.5 in. Stroke Size
• 4 Year, Unlimited Mile Warranty

Includes

One (1) Combination Spring Brake Piggyback Kit

Warranty

Four (4) Year, Unlimited Mile Warranty

Cross Reference

15586704, 162379, 164178, 165703, 1693196C91, 3036004, 3036GP, 3433008, 5007127, 5396-GP3036, 5396GP3036, 60220506, 641290, 767653298283, BBH-BPS-3036, BBHBPS3036, BPS-3036, BPS3036, BW5007127, BX5007127, EGP-3036, EGP3036, GP3036, HDXGP3036, KSD3036GP, KSD3036HP, MA15455, MBIGP3036, MDMA15455, MIDGP3036, N4936PA, ZZGP3036

Specifications
