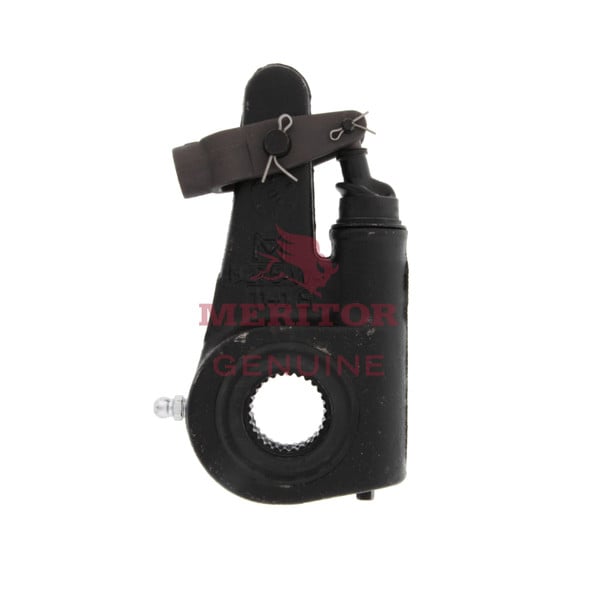

Meritor Genuine AY-ASA-1.50-28 - R802413

Product Description

AIR BRAKE - ASA - MERITOR

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - General: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Heavy Se: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Linehaul: 5 Years / 500K Miles
• Aftermarket Extended Warranty - Off-High: 3 Years / Unlimited Miles
• Arm Length: 5.00 in.
• Chamber Sizes: 20
• Clevis Thread Diameter: 0.625 in.
• Clevis Threads per inch: 18
• Clevis Type: Straight
• Maximum Torque Rating: More than 45 inch pounds
• Model: Meritor
• Notes: Yellow piston. Drum brake.
• OEM: Meritor
• Production Part Number: A14-3275-Y-1143
• Related Clevis Kit: R810019
• Related Unclevised Number: R803041
• Sensing Type: Stroke
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Type 2

Includes

AY-ASA-1.50-28

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

40020234, 40910412, 40910816, 40910858, 40910896, 40910946, 40910947, 40910984, 5006020, 5006021, 5006022, 5006023, A103275T592S, A103275Z598S, A123275T592S, A123275Z598S, A13275S1085, A13275T1086, A23275G1151S, A23275K1051S, A23275U1087S, A23275V1088S, A33275B1042S, AS1139, CS52321, CS52355, CS56039, E146K, E149K, E234K, E235K, E241K, E6925, E6993A, KN52310, MK22103S, MK42106S, R801077, R802182, R802183, R802410, R802411, R803040, R803041, R803042, R803043, R806024, SA00205, SA00206, SA02205, SA04203, SA04801, SA07001, SA07101, SA08101, SA08401, SA10201, SA10501, SA10801, SA11101, SAS1016, SAS1018, SAS1039, SAS1053, SAS1139
