Meritor Genuine AY-ASA-1.50-10 - R802300

Product Description

AIR BRAKE - ASA - MERITOR

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - General: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Heavy Se: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Linehaul: 5 Years / 500K Miles
• Aftermarket Extended Warranty - Off-High: 3 Years / Unlimited Miles
• Arm Length: 5.50 in.
• Chamber Sizes: 16
• Clevis Thread Diameter: 0.50 in.
• Clevis Threads per inch: 20
• Clevis Type: Straight
• Maximum Torque Rating: More than 45 inch pounds
• Model: Meritor
• Notes: Red piston. Drum brake.
• OEM: Meritor
• Production Part Number: A77-3275-Z-1144
• Related Clevis Kit: R810018
• Related Unclevised Number: R803022
• Sensing Type: Stroke
• Slack Spline Count: 10
• Slack Spline Diameter: 1.50 in.

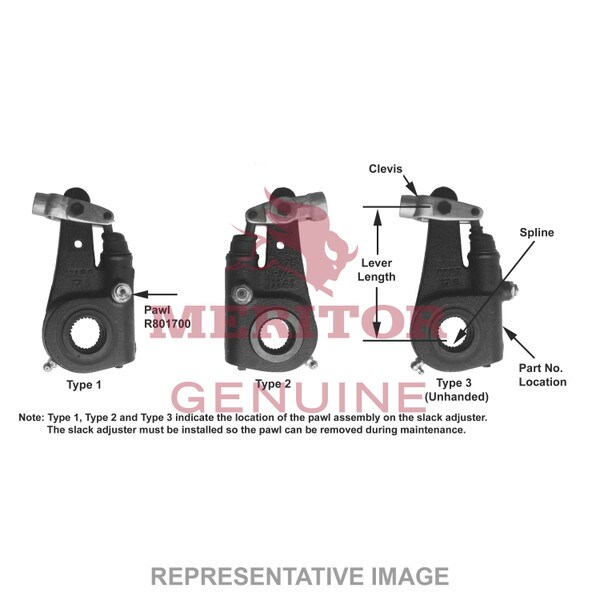

• Type: Type 1

Includes

AY-ASA-1.50-10

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

03-05886, 03-06008, 0305886, 05-561, 05-651, 05561, 05CB21100, 065170, 065170N, 065700, 10-400-10143, 10-400-10155, 1004585, 10143HDA, 101988, 102115/16, 10211516, 102538, 102539, 1040010143, 1040010155, 10480701, 106195, 106205, 106958, 106959, 107103, 107106, 107176, 107262, 107273, 107297, 107907, 107995, 107999, 108647, 1090266, 1132HDA, 1132TP, 11398, 131026, 1331031, 1351031, 1351034, 1352833, 1361031, 138.1011, 1391031, 15809, 1694310C91, 1694312C91, 1694313C91, 1694318C91, 1694319C91, 20527305, 23275N768S, 25QD260M6, 25QD410P4, 25QD419, 25QD51P2, 289654, 289654/55, 28965455, 289655, 289746, 289747, 289748, 289748/49, 28974849, 289749, 306008, 317166, 317167, 3398-AS1132, 3398-AS1168, 3398AS1132, 3398AS1168, 3513965, 3513971, 3946255, 3947668, 400-10103, 400-10143, 400-10155, 400-10215, 400-20215, 400-20226, 40010005, 40010012, 40010071, 40010071-MD, 40010071M1D, 40010071MD, 40010103, 40010106, 40010121, 40010143, 40010143-MD, 40010143M1D, 40010143MD, 4001015, 40010155, 40010155M1D, 40010215, 40010215M1D, 40020215, 40020215M1D, 40020236, 409-10085, 409-10101, 409-10134, 409-10135, 409-10223, 409-10232, 409-10233, 409-10238, 409-10294, 409-10313, 409-10370, 409-10371, 409-10387, 409-10394, 409-10412, 409-10417, 409-10475, 409-10509, 409-10548, 409-10555, 409-10565, 409-10605, 409-10635, 409-10649, 409-10662, 409-10733, 409-10760, 409-10787, 409-10817, 409-10860, 409-20000, 40910085, 40910101, 40910134, 40910135, 40910223, 40910238, 40910294, 40910313, 40910370, 40910387, 40910412, 40910417, 40910509, 40910548, 40910555, 40910565, 40910627, 40910635, 40910649, 40910662, 40910733, 40910760, 40910787, 40910860, 40920000, 410P4, 429-10685, 429-10760, 42910760, 4311205, 4NL10071, 4W8045, 500-10071, 500-10143, 500-10155, 50010071, 50010143, 50010155, 5011233, 506269, 506726, 507032, 509-10085, 509-10101, 509-10134, 509-10135, 509-10223, 509-10238, 509-10294, 509-10370, 509-10387, 509-10412, 509-10417, 509-10548, 509-10565, 509-10635, 509-10733, 509-10760, 50910085, 50910101, 50910134, 50910135, 50910223, 50910238, 50910294, 50910370, 50910387, 50910412, 50910417, 50910548, 50910565, 50910635, 50910733, 50910760, 516163, 52211, 52510, 52512, 5396-40010071, 5396-40010143, 5396-40010155, 5396-40020215, 539640010071, 539640010143, 539640010155, 539640020215, 556510, 65170, 65170P, 65171, 65700, 6814205738, 6919A, 6924A, 6924B, 737238548423, 76401-0134, 76401-3455, 76401-3498, 76401-3505, 76401-3805, 764010134, 764013455, 764013498, 764013505, 764013805, 767653143231, 767653143392, 767653143446, 767653289205, 77065170, 77065700, 7883-40010071, 7883-40010143, 7883-40010155, 788340010071, 788340010143, 788340010155, 801041, 801041HDA, 801353, 801358, 8060851, 807566, 808125, 808139, 808143, 808162, 808176, 808180, 8084129, 808679, 808684, 808688, 809610, 809613, 810180, 810728, 810815, 811847, 813246, 813247, 813824, 815790, 815801, 815809, 815812, 817533, 818220, 818301, 818552, 819036, 8235-M807022, 8235-R801041, 8235-R803195, 8235M807022, 8235R801041, 8235R803195, 823661, 825468, 8313769, 85100210, 9628R803195, 973530, 973802, 973803, 973971, 974239, 974294, 975628, 975628N, A1-3275-G-1151S, A1-3275-N-768S, A1-3275-U-1139, A1-3275-V-1139S, A1-3275A599S, A1-3275N768S, A1-3275U593S, A1-3275V1139S, A10-3275-A-599S, A10-3275-U-593S, A10-3275A599S, A10-3275U593S, A103275A599S, A103275U593S, A11-3275-U-593S, A11-3275U593S, A113275U593S, A13275A599, A13275A599S, A13275C601, A13275C601S, A13275N768S, A13275U1139, A13275U593, A13275U593S, A13275V1139S, A13275W595, A13275W595S, A15-3275-A-599S, A15-3275-H-1152S, A15-3275A599S, A153275A599S, A153275H1152S, A16-3275-H-1152S, A16-3275U593S, A163275H1152S, A163275U593S, A17-3275-H-1152, A173275H1152, A2-3275-Q-1083, A2-3275-R-1084, A2-3275Q1083, A2-3275R1084, A22-3275-N-768S, A22-3275N768S, A223275N768S, A23222F1072, A23275Q1083, A23275R1084, A25-3275-A-1145S, A25-3275-Z1144S, A26-3275-N-768S, A26-3275N768S, A263222F1072, A263275N768S, A29-3275-A-1145S, A293275Z1144S, A3-3275-W-1089S, A3-3275-X-1090S, A3-3275W1089S, A3-3275X1090S, A33275E1149S, A33275W1089S, A33275X1090S, A39-3275-N-768, A393275N768, A4-3275-B-1042S, A4-3275-W-1089S, A4-3275-X-1090S, A4-3275W1089S, A4-3275X1090S, A4-3780B28, A4-3780C29, A4-3780K11, A4-3780M13, A42-3275-A-599S, A42-3275-U-593S, A42-3275A599S, A42-3275U593S, A423275A599S, A423275U593S, A43-3275-A-599S, A43-3275-U-593S, A43-3275A599S, A43-3275U593S, A43275W1089S, A43275X1090S, A433275A599S, A433275U593S, A43780B28, A43780C29, A43780K11, A43780M13, A49-3275A599S, A49-3275U593S, A493275A599S, A493275U593S, A6-3275-A-599S, A60-3275A599S, A60-3275U593S, A603275A599S, A603275U593S, A63275A599S, A7-3275-N-768S, A7-3275-U-593S, A73275N768S, A73275U593S, A78-3275-A-1145, A78-3275-Z-1144, A8-3275-N-716S, ABPN42AS40010143, ABPN42ASR801041, ACA-0888B700, ACA0888B700, AS1003/04, AS100304, AS1032, AS1034, AS1119, AS1132, AS1134, AS1146, AS1148, AS1168, ASA122, ASH40010143, ASH40010155, ASM801041, ATIR801041, ATIR803195, B801041, BBH-RB-10143, BBH-RBR801041, BBHRB10143, BBHRBR801041, BE065170, BGCS56004, BGICS56004, BH065170, BH065700, BH65170, BP065170, BP10143, BSJ975628N, BW065170, BW065171, BW101988, BW102538, BW102539, BW106958, BW106959, BW107273, BW107297, BW289654, BW289655, BW289746, BW289748, BW289749, BW65170, BWBW065170, BWS065170, BX975628N, BXK041870, CB21100, CB21102, CI21102, CI211A2, CI41100, CI411A0, CI71100, CS52316, CS52321, CS52346, CS52351, CS52354, CS52362, CS56006, CS56032, CS56034, CS56041, CS56046, CS56048, DLR801041, E-10780A, E-10786A, E-10892, E-11398, E-11409, E-11410, E-11411, E-11412, E-11426, E-294K, E-6903, E-6903A, E-6908, E-6909, E-6915, E-6924, E-6924A, E-6924B, E-6940, E-6941, E-6949, E-6962, E-6992, E-6992A, E10780, E10780A, E10786A, E10892, E11398, E11398A, E11409, E11410, E11411, E11412, E11426, E11925, E15051, E238K1, E294K, E6903, E6903A, E6908, E6909, E6915, E6919A, E6924, E6924A, E6924B, E6940, E6941, E6962, E6992, E6992A, EA815809, ECE6924A, ET317166, ET815809, ET815812, EUE10780, EUE238K1, EUE6919A, EUE6924, EUE6924A, EUE6924B, FLT40010143, FLTAS1132, FS-R801041, FS10143, FS398, FSR801041, FU815809, FU815812, GHE6919A, GHE6924B, GS1132, GT-56143, GT56143, GTA-40010143, GTA40010143, GUAS1003, GUAS1019, GUAS1032, GUAS1132, GUAS1134, GUAS1141, GUN AS1132, GUN AS1168, GUN/ AS1168, GUNAS-1132, GUNAS1132, GUNAS1168, GUNSA099 02, GUNSA09902, HA-400-10143, HA-400-10155, HA-400-20215, HA40010143, HA40010155, HA40020215, HAE40010143, HAL/40010143, HAL/40010143M1D, HAL40010143, HAL40010155, HAL40010215, HB40010005, HB40010071, HDV-10143, HDV-51132, HDV-801041, HDV10143, HDX 40010143, HDX400-10143, HDX40010071, HDX40010143, HDX40010155, HDX40020215, HE40010012, HE40010106, HE40010143, HE40010146, HE40910238, HRR801041, HX400-10143, HX400-10155, HX40010071, HX40010143, HX40010155, HZ40010012, HZ40010146, HZ40910238, ICS56004, K041870, K041870BXW, KEAS1019, KEAS1032, KH556510, KHAS1003, KHAS1019, KHAS1032, KHAS1132, KN47011, KN52211, KN52230, KN52231, KN52232, KN52233, KN52234, KSA10143, M16WR1333, M807002, M807021, M807022, M808021, MB21102, MB21182, MB21952, MB40010071, MB41100, MB41180, MB71100, MBCS56004, MBI40010071, MBI40010143, MBI40020215, MBKN52211, MBR801041, MD40010143, MD40010146, MD40010215, MDCS52321, MDCS56004, MDCS56006, MDKN52211, MERR803195, MI40010012, MI40010071, MI40010106, MI40010143, MI40010146, MICS52321, MICS56004, MICS56006, MICS56032, MICS56041, MID40010071, MID40010143, MID40010155, MID40020215, MK21010S, MK21100S, MK21102S, MK22102S, MK22102SG, MK41010S, MK41100S, MK41100SJ, MK71100S, MSMD40010143, MSMDCS56006, N42AS, OTR-10143, OTR-51132, OTR-65170, OTR-801041, OTR10143, OTR65170, OTR801041, P0065170, P065170, P815809, PL-10143, PL-10155, PL-10215, PL-R801041, PL10143, PL10155, PLR801041, PROSA56143, R2A163275H1152S, R2A223275N768S, R2R801041, R2R803195, R801041, R801041-RI, R801041RI, R801043, R801045, R801047, R801050, R802170, R802290, R802291, R802292, R802293, R802301, R802302, R802303, R802310, R802311, R802312, R802313, R802314, R802315, R802316, R802317, R802318, R802319, R802320, R802321, R802330, R802331, R802332, R802333, R802644, R802645, R802666, R802667, R802686, R802687, R803022, R803023, R803024, R803025, R803026, R803027, R803028, R803029, R803032, R803033, R803103, R803195, R803195-RI, R803195RI, R806002, R806021, R806022, RB-10143, RB-10155, RB-10215, RB10143, RB10155, RBA13275N768S, RBA163275H1152S, RBA223275N768S, RBA23222F1072, RBA233299D3046, RBA233299E3047, RBA243722P406, RBA263222F1072, RBA263275N768S, RBR801041, RBR802332, RBR802333, RBR803028, RBR803029, RBR803103, RBR803195, RBTDAR801041, RDR801041, REB801041, RI737238548423, RIA13275N768S, RIA223275N768S, ROA13275N768S, ROR801041, ROR803195, RSR801041, RSR803195, RW-R801041, RWR801041, RWR803195, RWTDAR801041, S-23556, S-23852, S-23856, S-B888, S065170, S23556, S23852, SA00102, SA00805, SA01101, SA02104, SA02401, SA05401, SA05701, SA06402, SA06502, SA07802, SA08602, SA09102, SA09902, SA10103, SA10215, SA1041, SA10602, SA11002, SA11202, SA1132, SA1132A, SA1136, SA11602, SA2170, SA56143, SAP-R801041, SAP10143, SAPR801041, SAS1019, SAS1032, SAS1049, SAS1132, SAS1146, SAS1162, SAS1168, SB888, SBRMK41100S, SCSA1041, STEMK41100S, TDAM807022, TDAR801041, TDAR803195, TWDR801041, TWDR803195, WA10143, WAAS1132, WAR801041, ZBRAS1132, ZBRAS1134, ZBRAS1146, ZBRAS1168, ZCPMK21102S, ZCPMK41100S, ZSA40010071, ZSA40010143, ZSA40010155, ZY40010012, ZY40010143, ZY40010146, ZY40910238, ZZ40010071, ZZ40010143, ZZ40010155, ZZ40010215, ZZ40020215, ZZ40910649
