Match Made Single/Tandem Trailer Spring Brake - APL-101614

SKU APL-101614
$116.74
(0)No Reviews yet

Out of Stock

This item is currently on back order but can still be purchased

Back in stock on 06/15/2025.

Details

Product Description

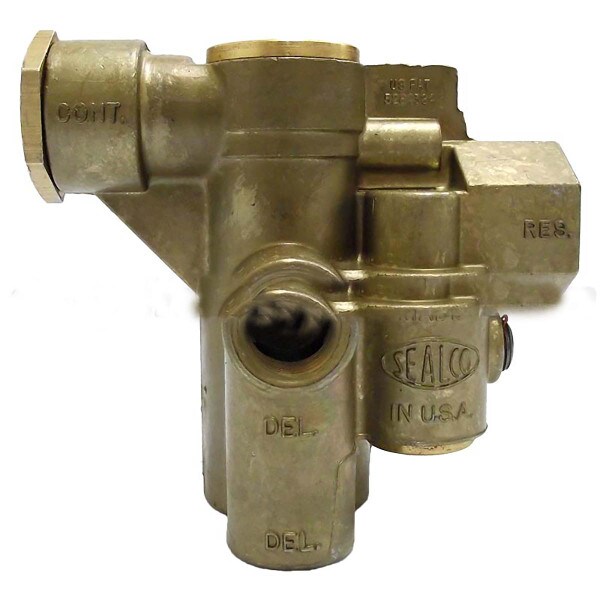

Spring brake control valves are designed to respond to pressure changes in air brake systems. They are important components of any spring brake air system and should be routinely checked for the safety of the driver.

This spring brake control valve is designed for use with a single reservoir on a typical single or tandem axle trailer; but may also be used with two 1,400 cubic inch (nominal) reservoirs on tandem axle trailers. The unit's supply, control and delivery port sizes each measure 3/8 inch NPT. It contains a reservoir port that measures 1/2 inch NPT. The service reservoir priority provides supply air to simultaneously fill the reservoir and release the spring brakes after the internal pressure protection valve opens at approximately 80 PSI. This product meets all SAE J14659 Air Actuators test procedures, as a bonus.

This product comes with a one year warranty.

Match Made is one of the most trusted brands for quality OEM replacement semi truck parts with a full line of seals, water pumps, shocks, lighting and much more.


Features

  • Designed for use with a single reservoir on a typical single or tandem axle trailer; but may also be used with two 1,400 cubic inch (nominal) reservoirs on tandem axle trailers
  • Supply, control and delivery port sizes each measure 3/8 inch NPT
  • Reservoir port that measures 1/2 inch NPT
  • Meets all SAE J14659 Air Actuators test procedures

Includes

One spring brake control valve


Warranty

One year


Cross Reference

110700, 680-110700, KN26110, ESL110700, KN26020, 51321, SE110700, E-SL110700, AV110700, SLC110700, GTA-110700, GTA110700, SEA110700, RSL110700, S-20220, S20220, TV110700TEC, TV110700, SL-110700, SL110700, SE110700


Specifications

BrandMatch Made
SupersedesAPL-101616
MPNAPL-101614
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Benefits

This spring brake control valve is designed for use with a single reservoir on a typical single or tandem axle trailer; but may also be used with two 1,400 cubic inch (nominal) reservoirs on tandem axle trailers. The unit's supply, control and delivery port sizes each measure 3/8 inch NPT. It contains a reservoir port that measures 1/2 inch NPT. The service reservoir priority provides supply air to simultaneously fill the reservoir and release the spring brakes after the internal pressure protection valve opens at approximately 80 PSI. This product meets all SAE J14659 Air Actuators test procedures, as a bonus.
