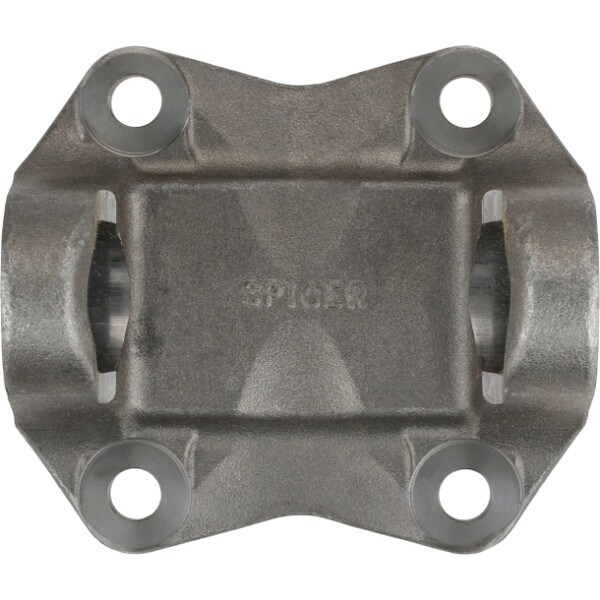

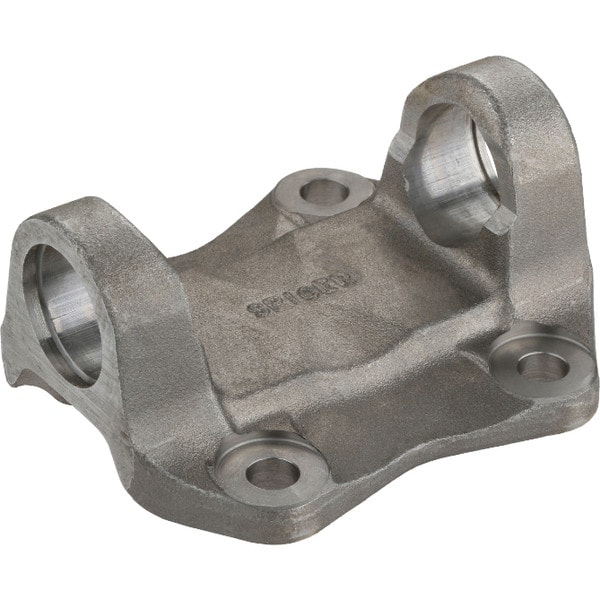

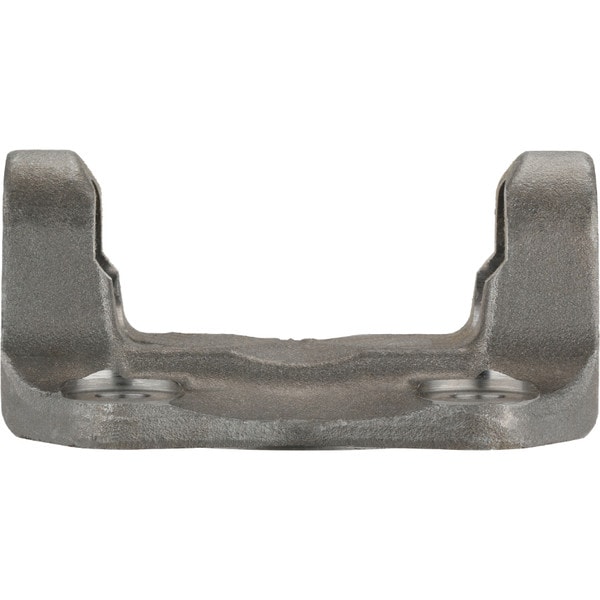

DANA FLANGE YOKE - 4-2-1149

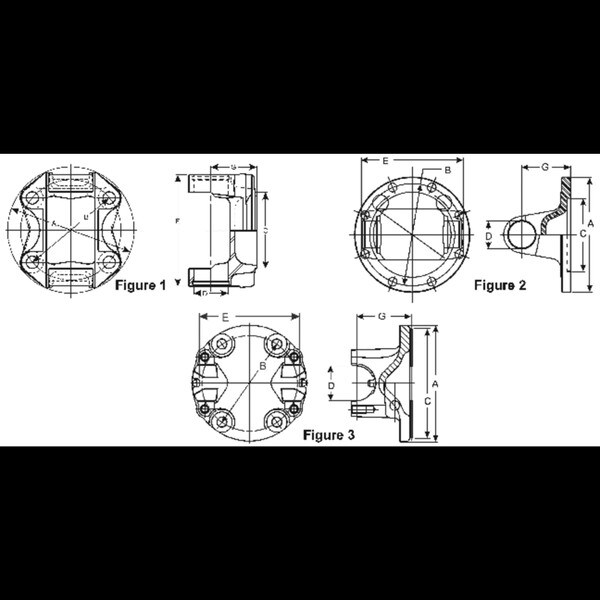

Specifications

• Bolt Circle Dia. In. (B) : 4.75
• Bolt Hole Dia. In (B) : .484 - DRILLED
• Design : Rectangular
• Flange Face To C/L In. (G) : 1.5
• Flange Or Swing Dia. In. (A) : 5.75
• Material : Steel
• Number Of Bolt Holes : 4
• Outside Yoke Dimension In.(E) : 5.25
• Pilot Dia. M=Male F=Female (C) : 3.750 - MALE
• Series : 1550
• Yoke Bearing Dimension In. (D) : 1.375
