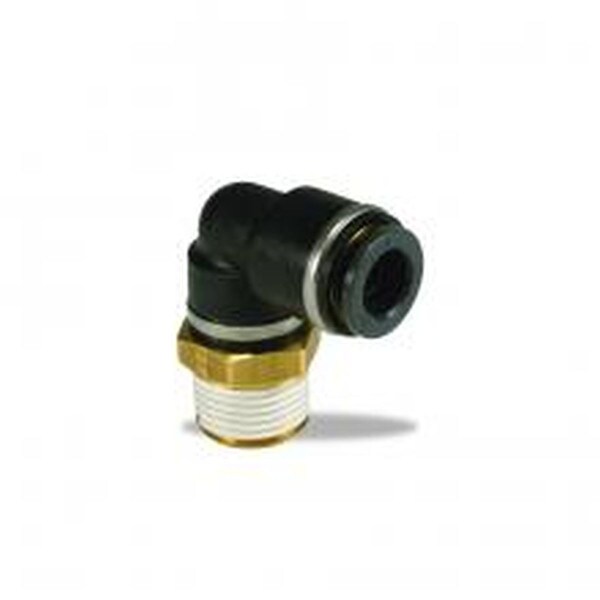

Velvac 5/8 x 1/2 in. 90 Degree Male Swivel Elbow - 016281

Product Description

When it comes to your truck's heating and cooling system, every component counts, and with Velvac, you can trust your components to perform mile after mile in any driving situation. This swivel elbow is designed for use with SAE J844 nylon tubing. It features operating temperatures from -45 degrees F to +140 degrees F with a maximum operating pressure of 145 psi. It is DOT 49 CFR 571.106 compliant. High strength composite fittings offer weight savings over all brass style fittings, currently being used by many OE vehicle manufacturers. Elbows and male branch fittings have built-in swivel feature for easy positioning and an engineered tube retention system and seal design offers superior holding and side load retention capabilities. There is a positive release bushing for easy insertion and removal of tubing, thread sealant applied to all male pipe threads to reduce installation time and expense, and a composite body with a brass fitting end.

The warranty on this part is twelve (12) months from the date of sale to end-user or twenty-four (24) months from date of manufacture, which ever comes first. Some exceptions may apply depending on product or vocation specifications.

Your partner in the passing lane since 1934, Velvac Inc. first began as the Vacuum Power Equipment Company, specializing in air brake and valve components. The name was shortened to Velvac in 1940, after the company's best-selling Velvet Vacuum brakes brand. Velvac began producing West Coast mirrors in the 1950's, becoming an OEM supplier in 1956. The company continues to lead the way for vision systems in the North American commercial vehicle market and now has over 4,500 vehicle components in their product line.

Features

• Designed for use with SAE J844 nylon tubing.
• Operating temperatures from -45 degrees F to +140 degrees F.
• DOT 49 CFR 571.106 compliant. High strength composite fittings offer weight savings over all brass style fittings, currently being used by many OE vehicle manufacturers.
• Maximum operating pressure 145 psi.
• Elbows and male branch fittings have built-in swivel feature for easy positioning.
• Engineered tube retention system and seal design offers superior holding and side load retention capabilities.
Positive release bushing for easy insertion and removal of tubing.
• Thread sealant applied to all male pipe threads to reduce installation time and expense.
• Sealant applied.
• Composite body with brass pipe fitting end.

Includes

Elbow only

Cross Reference

016281VEL, QL136910D, QL136910DTEC, VEL016281
