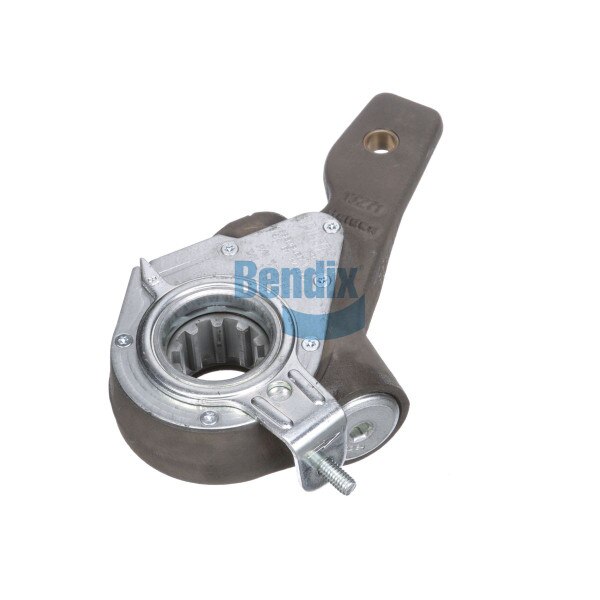

Bendix Auto Slack Adjuster (5.5 or 6.5 In.) - 973530N
Details
Slack adjusters, whether manual or automatic, are used as levers to form the connection between actuators and camshafts and help to maintain consistent stroke of the actuator. Slack adjusters should be greased every six months and may need to be replaced every four to five years based on the application. When in need of replacement slack adjusters, turn to Bendix!
This Automatic slack adjuster is designed for air brake systems. It can be used on the rear, drive axle (5.5 inch arm length). Or, use 6.5 inch arm length only when using straight clevis style kit. It offers a spline diameter measurement of 1.5 inches and a spline count of 10. With a straight arm, its arm length measures 5.5 in. or 6.5 inches.
Warranty is between 1-3 years based on product and type of operation. Contact us to learn more.
Bendix is an industry name truckers trust! The Bendix brand has a full catalog of commercial vehicle safety technologies and air brake system parts for the heavy-duty tucking industry servicing trucks, tractors, trailers and buses. When in need of quality aftermarket air system components, turn to Bendix, a member of Knorr-Bremse!
Cross References
03-05886, 0305886, 05-651, 055-040-0410-400-10144, 065175, 10-400-10143, 10143HDA, 10144HDA, 102115/16, 10211516, 1040010143, 1040010144, 10600055, 106201, 106926, 107101, 107103, 107127, 107262, 107277, 107278, 107736, 107772, 107773, 107787, 107907, 107994, 107995, 108091, 108093, 108117, 108430, 109519, 1191037, 131026, 1331031, 1332832, 1351031, 1352832, 1352833, 1352835, 13656, 138.283, 15809, 1694310C91, 1694312C91, 1694313C91, 1694318C91, 1694319C91, 25QD259P7, 25QD260M6, 25QD340P6, 25QD410P4, 25QD412, 25QD49, 25QD51P3, 25QDA259P7, 25QDA340, 289312, 289313, 289654, 289654/55, 28965455, 289655, 289746, 289748, 289748/49, 28974849, 289749, 289933, 289934, 317166, 317167, 3398-AS1141, 3398AS1141, 3508802, 3513965, 3513971, 3820002201, 386918A, 3946255, 400-10103, 400-10143, 400-10144, 400-20226, 40010005, 40010012, 40010071, 40010071-MD, 40010071M1D, 40010071MD, 40010103, 40010104, 40010106, 40010121, 40010143, 40010143-MD, 40010143M1D, 40010143MD, 40010144, 40010144-MD, 40010144M1D, 40010144MD, 4001015, 40010212, 40020212, 40020236, 4017A23665, 409-10070, 409-10134, 409-10135, 409-10167, 409-10223, 409-10238, 409-10288, 409-10313, 409-10370, 409-10371, 409-10387, 409-10412, 409-10443, 409-10505, 409-10509, 409-10548, 409-10555, 409-10565, 409-10579, 409-10605, 409-10649, 409-10662, 409-10678, 409-10733, 409-10760, 409-10787, 409-10817, 409-10860, 40910070, 40910111, 40910134, 40910135, 40910146, 40910167, 40910211, 40910223, 40910238, 40910245, 40910279, 40910288, 40910313, 40910370, 40910387, 40910412, 40910417, 40910418, 40910443, 40910492, 40910505, 40910509, 40910548, 40910555, 40910565, 40910579, 40910627, 40910649, 40910662, 40910678, 40910733, 40910760, 40910860, 410P4, 42521, 429-10760, 42910760, 4311205, 4NL10071, 4W8045, 500-10071, 500-10143, 500-10144, 50010071, 50010143, 50010144, 506726, 507032, 509-10070, 509-10134, 509-10135, 509-10238, 509-10370, 509-10387, 509-10412, 509-10443, 509-10548, 509-10565, 509-10579, 509-10678, 509-10733, 509-10760, 50910070, 50910134, 50910135, 50910238, 50910370, 50910387, 50910412, 50910443, 50910548, 50910565, 50910579, 50910678, 50910733, 50910760, 516162, 516163, 52529, 5396-40010071, 5396-40010143, 5396-40010144, 539640010071, 539640010143, 539640010144, 5504004, 56041, 600028, 65170, 65175, 65176, 65700, 6918A, 6919A, 6924A, 6924B, 745-973530N, 76401-0100, 76401-3509, 764010100, 764013509, 767653143231, 767653143392, 767653143408, 77065700, 7883-40010071, 7883-40010143, 7883-40010144, 788340010071, 788340010143, 788340010144, 801358, 8060858, 807566, 808113, 808125, 808139, 808149, 808162, 808163, 808176, 808180, 8084132, 808688, 809613, 809614, 810180, 810728, 811847, 813656, 815787, 815790, 815792, 815809, 815811, 815812, 818220, 818301, 818552, 819036, 8235-M807022, 8235M807022, 825468, 8313769, 973530, 973649, 973802, 973803, 974239, 975628, 975628N, A-3275-X-596, A1-3275-G-1151S, A1-3275-N-768S, A1-3275-V-1139S, A10-3275-A-599S, A10-3275-U-593S, A10-3275N716S, A103275N716S, A11-3275-U-593S, A11-3275N716S, A113275N716S, A13275A599, A13275A599S, A13275C601, A13275C601S, A13275U593, A13275U593S, A13275W595, A13275W595S, A15-3275-A-599S, A15-3275N716S, A153275N716S, A16-3275-H-1152S, A16-3275B600S, A16-3275N716S, A16-3275V594S, A163275B600S, A163275N716S, A163275V594S, A17-3275B600S, A17-3275V594S, A173275B600S, A173275V594S, A19-3275N716S, A193275N716S, A2-3275-Q-1083, A2-3275-R-1084, A2-3275B600S, A2-3275L792S, A2-3275N716S, A2-3275V594S, A2-3275Y1091S, A2-3275Z1092S, A20-3275N716S, A203275N716S, A22-3275-N-768S, A22-3275B600S, A22-3275V594S, A223275B600S, A223275V594S, A23275B600S, A23275L792S, A23275N716S, A23275V594S, A23275Y1091S, A23275Z1092S, A25-3275-A-1145S, A25-3275-Z1144S, A25-3275M1079, A253275M1079, A26-3275-N-768S, A29-3275-A-1145S, A293275Z1144S, A3-3275-W-1089S, A3-3275-X-1090S, A3275X596, A33275E1149S, A4-3275-B-1042S, A4-3275-W-1089S, A4-3275-X-1090S
Specifications
| Item-Level GTIN: | 4068078294253 |
| EXPI Data (Country of Origin): | Us |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Slack Adjuster (Automatic) |
| Adaptor Length: | Not Applicable To This Part |
| Adaptor Size: | Not Applicable To This Part |
| Anchor Bracket Angle: | -16Adeg |
| Anchor Bracket Style: | Strap |
| Anchor Type: | Stud |
| Arm Bushing(S): | A~ .506 In (A~ 12.85 Mm) |
| Arm Length 1: | 5.50 In |
| Arm Length 2: | Not Applicable To This Part |
| Arm Length 3: | Not Applicable To This Part |
| Arm Offset: | No Offset |
| Clevis / Yoke Style: | Not Applicable To This Part |
| Free Stroke Position: | 4Adeg |
| Inclination Angle (Body Angle): | 34Adeg |
| Lube Fitting Position: | 180Adeg |
| Lube Fitting Type: | 1/8-27 Npt (Plugged) |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 158 Adegf (70 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Product Type: | Grounded - Haldex Aba (Aa1) |
| Reference Arm Style: | Single Bend |
| Self-Setting: | No |
| Spline Diameter - Teeth: | A~ 1.50 In - 10 Spline |
| Torque Rating: | 23,000 In Lbs |
| Vmrs Code 2: | 013-002-169 |
| Vmrs Code 3: | 013-017-017 |
| Vmrs Description 2: | Slack Adjuster - Automatic, Rear Brake |
| Vmrs Description 3: | Slack Adjuster - Automatic, Position Not Specified |
