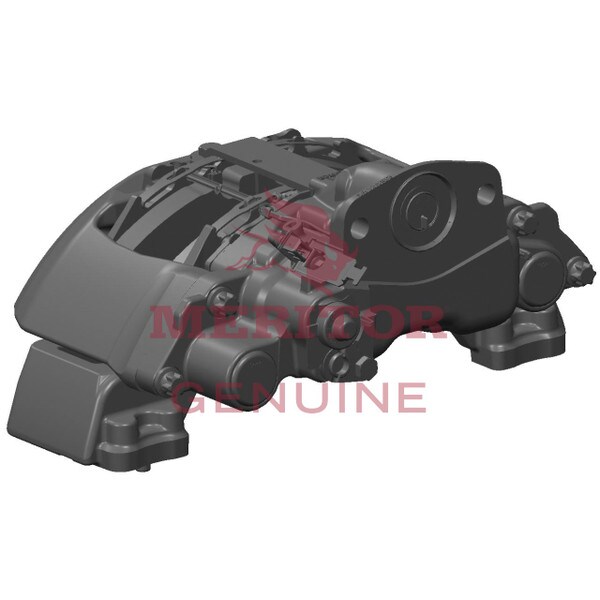

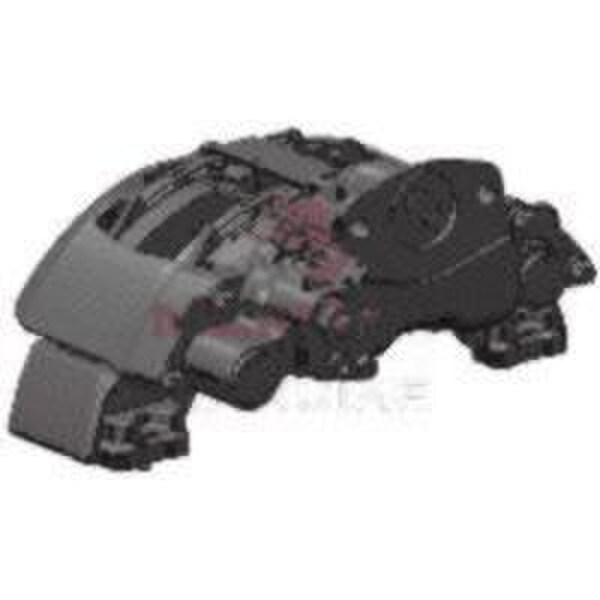

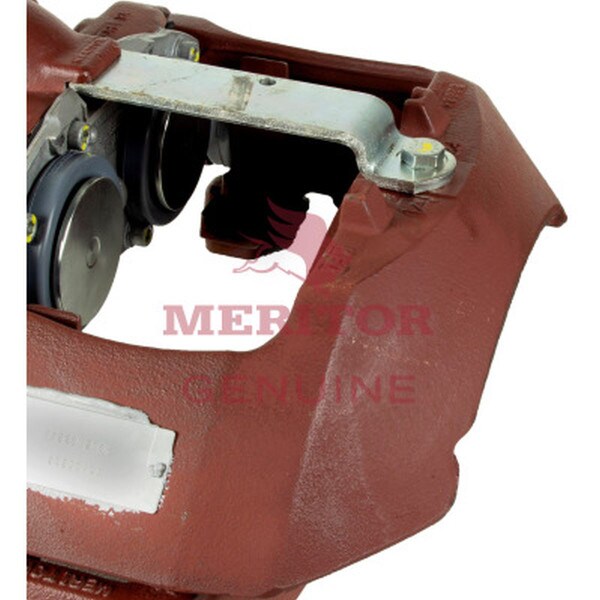

Meritor - EX225H216XX101
Details
Product Description
When it's time for replacement truck parts, you want parts that are reliable and easy to install. You've come to the right place. We have an extensive catalog full of aftermarket truck parts designed with your commercial vehicle in mind. Shop now!
Axial chamber with radial mount. A-B distance measures 1 9/16 inches. Contains 4 carrier mounting holes. 1311 FMSI. Features 2 pistons. Mounting hole size measures M20 x 1.5. 12 degree brake chamber angle and mount. Pad length measures 9.82 inches.
This part comes with a warranty of 3 years.
Meritor is one of the most trusted names in the industry for brake system components. When in need, turn to one of the best - Meritor!
Features
- Service Caliper Less Pads/Less Brake Chamber
Includes
Meritor Genuine Brake Caliper, Right
Warranty
3 years
Cross Reference
EX225H216XX101RMAN, TDAEX225H216XX101
Specifications
| Brand | Meritor Genuine |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | Axial chamber with radial mount. A-B distance measures 1 9/16 inches. Contains 4 carrier mounting holes. 1311 FMSI. Features 2 pistons. Mounting hole size measures M20 x 1.5. 12 degree brake chamber angle and mount. Pad length measures 9.82 inches. |
