  • DANA Spicer End Yoke 1810 Series 10 Spline - 30010-3230 - 30010-3230

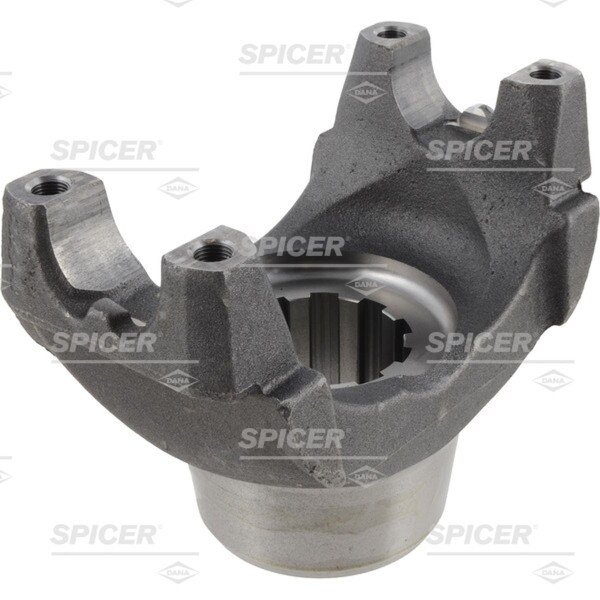

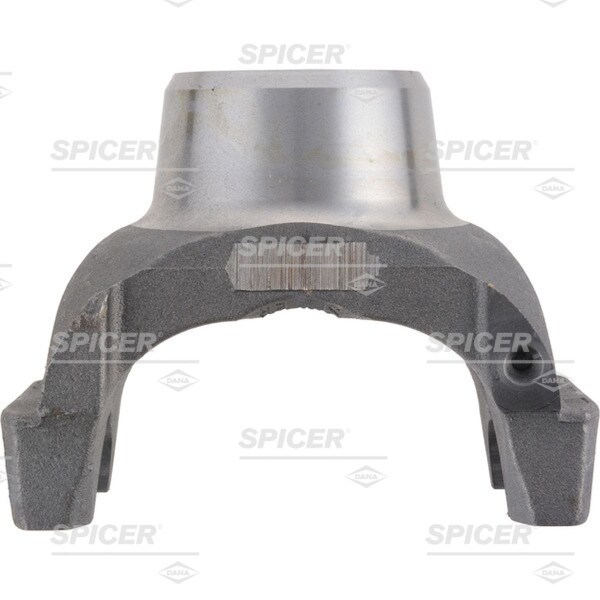

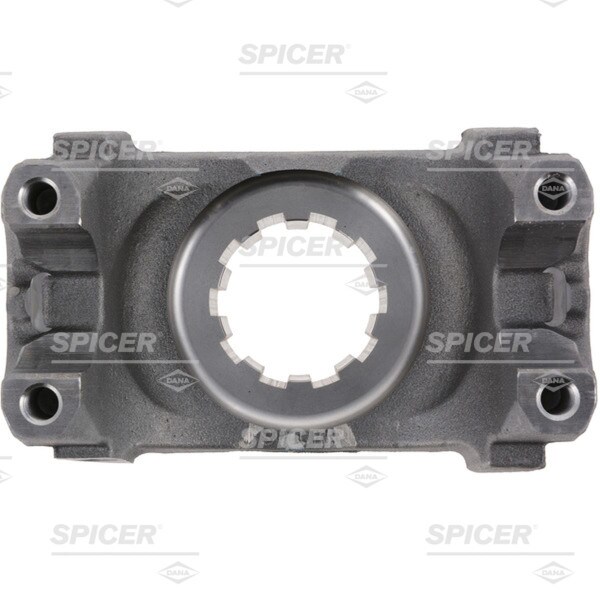

DANA Spicer End Yoke 1810 Series 10 Spline - 30010-3230 - 30010-3230

Details

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This 1810 Series yoke has 10 splines, an HR yoke style and a 3.875 in. hub diameter.


Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.


Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.


Cross References

Specifications

Brand Label:Spicer
Item-Level GTIN:00023913218287
Hazardous Material Code (Y/N):N
EXPI Data (Country of Origin):MX
EXPI Data (Harmonized Tariff Code (HTS)):8708990000
Item Quantity Size UOM:EA
Assembly:N

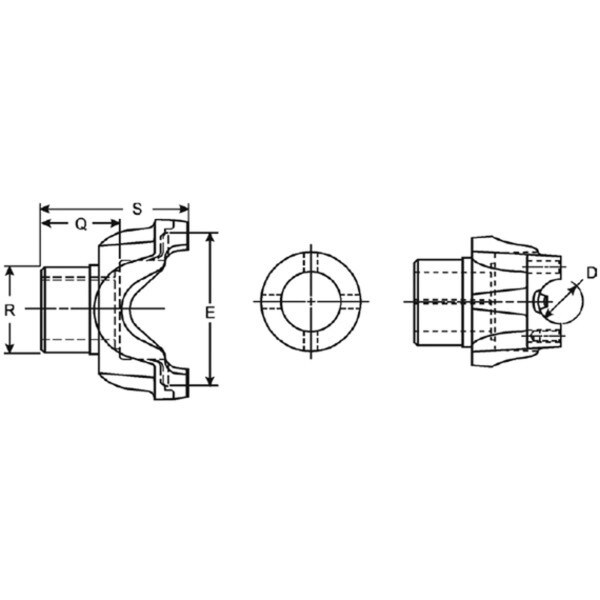

C/L To End Hub S:6.062
California Proposition 65:WARNING: Cancer - www.p65warnings.ca.gov
Hub Diameter R:3.875
Includes Slinger/Plug:N
Involute Spline:N
Joint Angle #1:30
Length Thru Hole Q:3
Major Diameter:2.75
Material:Steel
Outside Yoke Dimension (In) E:7.643
Prop 65:Yes
Series:1810
Spline Count:10
Type:Splined Hole
Yoke Bearing Dimension (In) D:1.938
Yoke Style:HR
Description (Long Product Description):Manual Transmission Output End Yoke
Description (Short Product Description):Drive Shaft End Yoke
Description (Extended Product Description):Manual Transmission Output End Yoke
