DANA Spicer End Yoke 1760 Series 46 Spline - 30010-3208 - 30010-3208

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you.

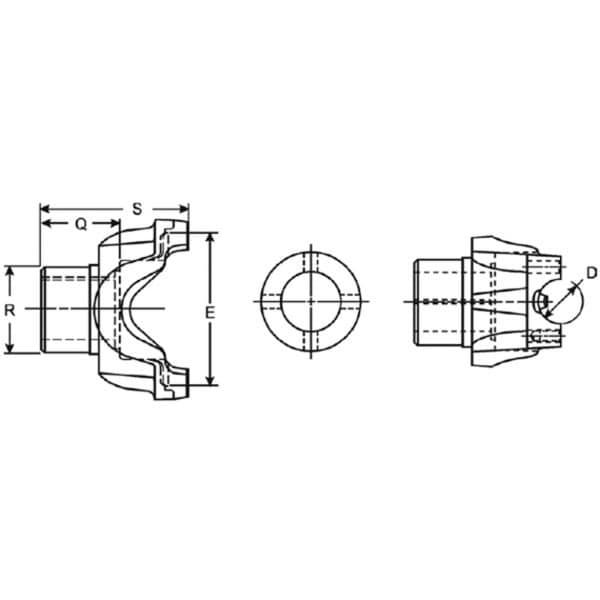

This 1760 Series yoke has 46 splines, an HR yoke style and a 2.875 in. hub diameter. C/L to end hub measures 5.5 inches. Outside yoke dimension measures 7.094 inches. Yoke bearing dimension measures 1.938 inches. Major diameter measures 2.39 inches. Length thru hole measures 2.75 inches. Made from steel. Joint angle measures 30.

Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.

Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
