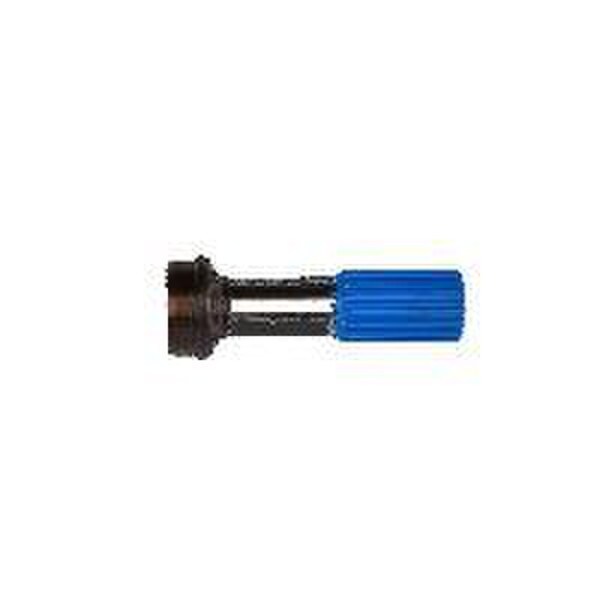

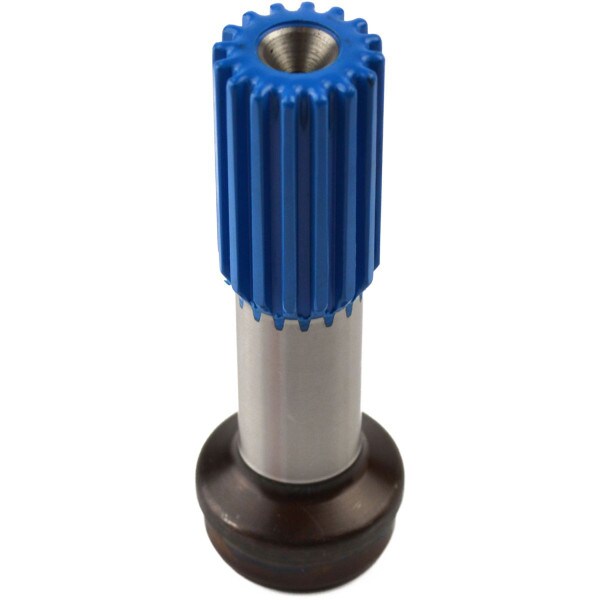

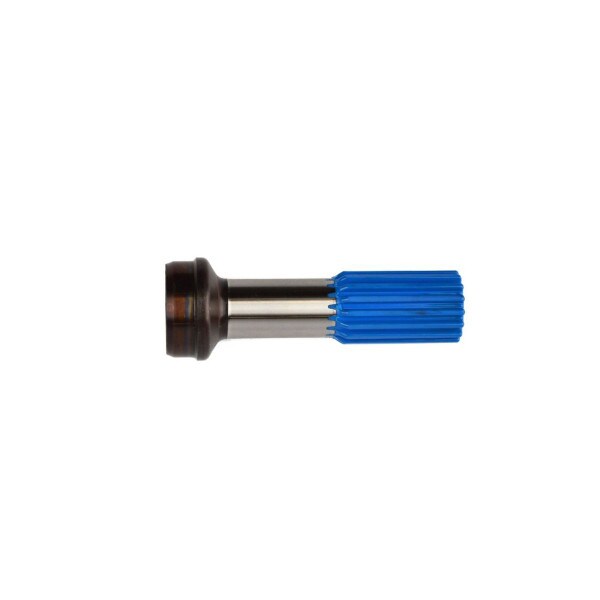

Dana Spicer Driveshaft Tube Shaft for 1.750 x 0.065 Tubing - 1310 Series - 2-40-971
Details
When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This 1310 series tube shaft has 16 splines and the following specs - Fits Tube Diameter: 1.750 in., Fits Tube Wall Thickness: 0.065 in., End Of Spline To Weld: 4.469 in., End Of Spline To Radius: 3.938 in.
Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.
Whether you are driving between the lines or outsideof them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today' most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Cross References
131N40971, 1662820C1, 2-40-421, 2-40-971, 2104-240971, 2104240971, 240421, 240971, 240971-SP, 240971S, 240971SP, 30014-5003, 300145003, 512322, 960154, D240971, DA240971, DL131N40971, DO240971, DS240971, E240971, NE512322, S-E575, SD240971, SE575, SP240971, TWD240971
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913229887 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | MX |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708990000 |
| Item Quantity Size UOM: | EA |

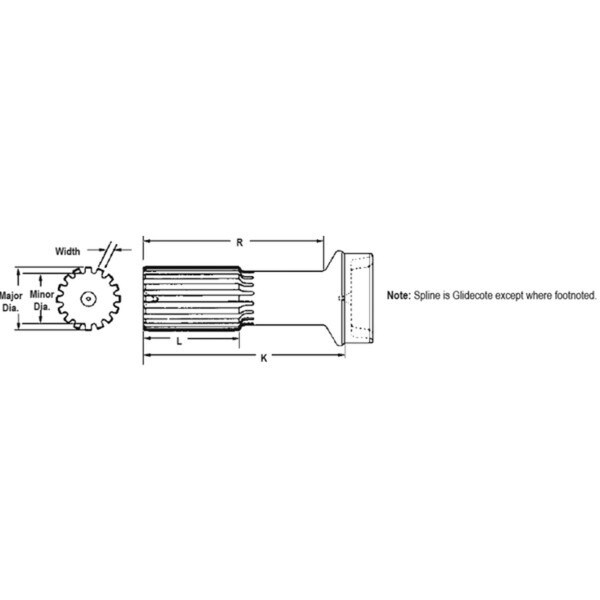

| Butt Diameter: | 1.631 |
| End Of Spline To Radius (R): | 3.938 |
| End Of Spline To Weld (K): | 4.469 |
| Fit Tube Wall Thickness: | 0.065 |
| Fits Tube Diameter: | 1.75 |
| Glidecote Spline: | Y |
| Involute Spline: | N |
| Length Of Spline (L): | 2 |
| Major Diameter: | 1.25 |
| Material: | Steel |
| Prop 65: | No |
| Series: | 1310 |
| Spline Count: | 16 |
| Description (Long Product Description): | Drive Shaft Tube Shaft for 1.750 x 0.065 Tubing |
| Description (Short Product Description): | Tube Shaft |
| Description (Extended Product Description): | Drive Shaft Tube Shaft for 1.750 x 0.065 Tubing |
Features
- Dana engineering-approved for fit, form and function
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Strength and durability for long life
- Tested for unparalleled reliability
