Dana Spicer Driveshaft Slip Yoke - 1410 Series - 3-3-5411KX
Details
When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This 1410 Series slip yoke assembly has 1536 splines.
Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.
Whether you are driving between the lines or outsideof them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today' most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Cross References
3-3-5411KX, 335411KX, 5411KX, D335411KX, DA335411KX, DO335411KX, E335411KX, MSSP335411KX, SD335411KX, SP335411KX, TWD335411KX
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913229917 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | US |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708990000 |
| Item Quantity Size UOM: | EA |

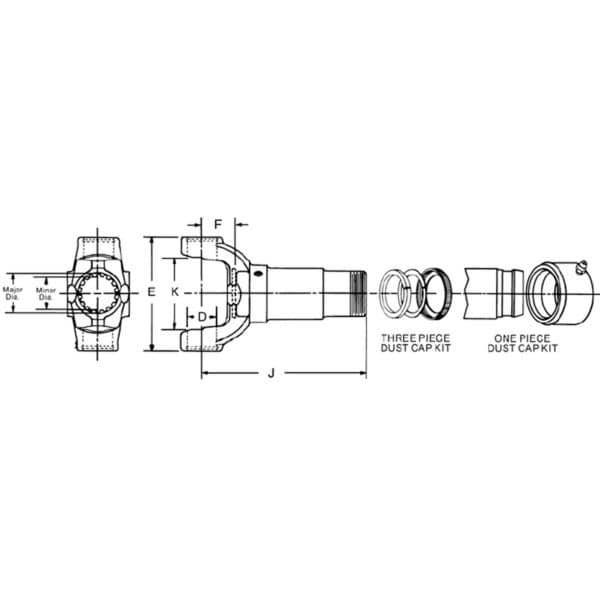

| Bearing Cap Diameter (D) In.: | 1.188 |
| C/L To End Of Spline (J) In.: | 7.281 |
| C/L To Face Of Plug (F) In.: | 1.156 |
| Involute: | N |
| Joint Angle #1: | 45 |
| Material: | Steel |
| No. Of Splines: | 15/16 |
| Outside Yoke Dimension (E) In.: | 4.438 |
| Prop 65: | No |
| Series: | 1410 |
| Spline O.D.: | 1.5 |
| Style: | SR |
| Description (Long Product Description): | Drive Shaft Slip Yoke |
| Description (Short Product Description): | Slip Yoke |
| Description (Extended Product Description): | Drive Shaft Slip Yoke |
Features
- Dana designed, tested and engineered.
- Genuine Spicer Product
- Meets or exceeds OE standards.
- Uses high-grade Dana approved materials to ensure optimal quality.
