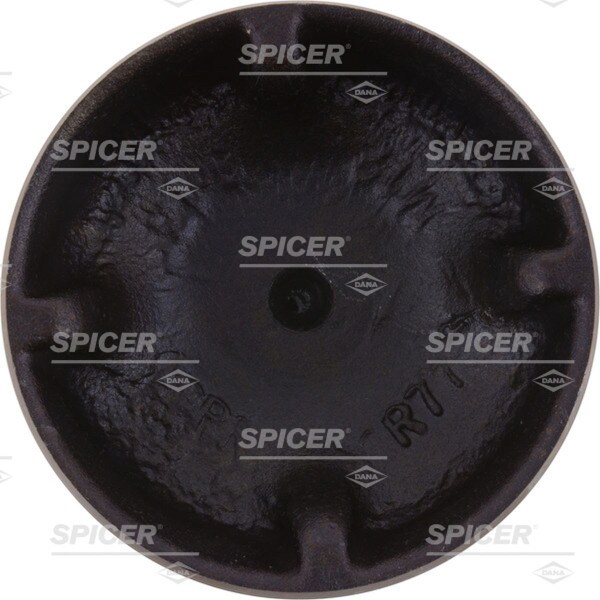

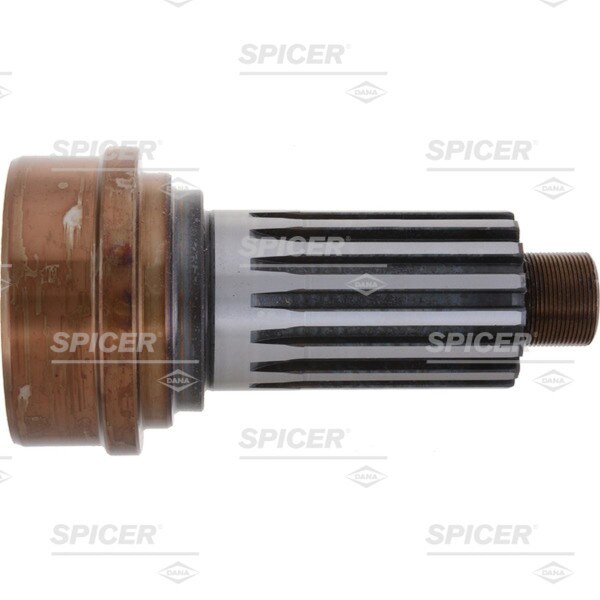

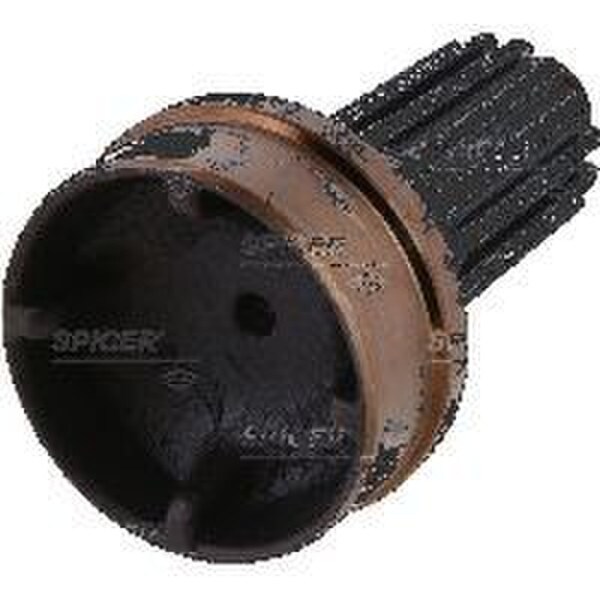

DANA Spicer Midshift Stub Shaft 1710 16 Spline - 30013-0002 - 30013-0002
Details
When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This 1710 Series axle shaft has 16 splines.
Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.
Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913212674 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | US |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708990000 |
| Item Quantity Size UOM: | EA |

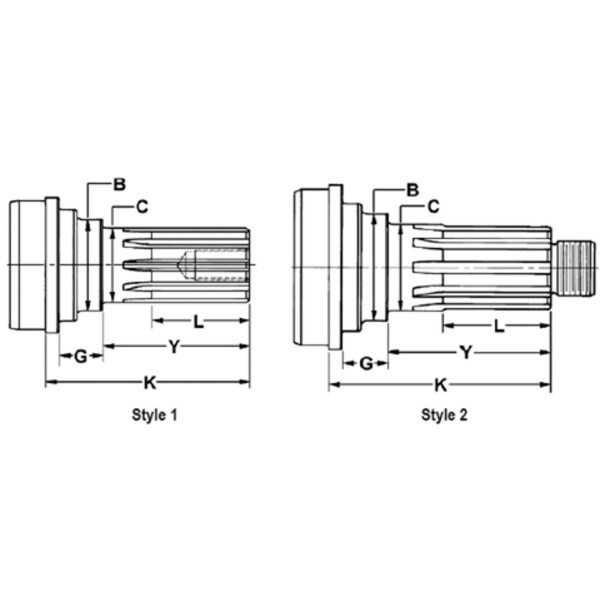

| Bearing Diameter (C) In.: | 2.362 |
| Bearing Diameter (Max): | 2.3622 |
| Bearing Diameter (Min): | 2.3617 |
| Butt Diameter: | 3.743 |
| Fits Tube Diameter: | 4 |
| Fits Tube Wall: | 0.134 |
| For Use With: | End Yoke Or Companion Flange |
| Involute: | N |
| Material: | Steel |
| Number of Splines: | 16 |
| Prop 65: | No |
| Series: | 1710 |
| Shoulder Diameter (B) In.: | 2.875 |
| Shoulder Length (G) In.: | 0.812 |
| Spline End To Brg Shoulder (Y): | 4 |
| Spline End To Weld (K) In.: | 5.312 |
| Spline Length (L) In.: | 2.625 |
| Spline O.D.: | 2.35 |
| Style: | 2 |
| Thread Size: | 1.250-18 IN |
| Description (Long Product Description): | Drive Shaft Midship Stub Shaft |
| Description (Short Product Description): | Midship Stub Shaft |
| Description (Extended Product Description): | Drive Shaft Midship Stub Shaft |
