  • DANA Spicer Left Hand Steering Tie Rod End - 220TR130 - 220TR130

DANA Spicer Left Hand Steering Tie Rod End - 220TR130 - 220TR130

Back

Details

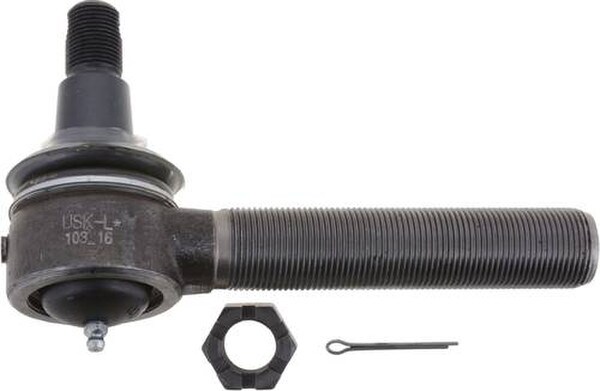

This straight steering tie rod end (LH) with purge valve and boot seal has center zerk/lube fitting. The length rod end socket center measures 7.5 inches and the rod end thread length measures 5.25 inches. Rod end thread is 1.250 x 12. Ball center to castle nut thread measures 2.61 inches. Small taper diameter measures 1.08 inches and the large taper diameter measures 1.18 inches. Taper length seal to taper end measures .87 inches. Total taper length measures 1.36 inches.


This part is under warranty for twelve (12) Months/1 Year; some exceptions may apply depending on application and part. Please contact our customer service team for warranty details.


Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is one of the leading aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.


Back

Cross References

12969, 1668480C91, 21-3030R, 21-303OR, 213030R, 21303OR, 220TR119, 30091, 30104, 310-395, 310395, 37003-5030, 370035030, 462.ES3030R, 462ES3030R, 85112008, A3144D550, DLR230104, DN310395, DP310395, E-6856, E12969, E6856, ES3030R, EUE6856, FGES3030R, FLES3030R, FLTTR3030R, FMES3030R, FTR3030R, FTR3030RA, GHE6856, HES3030R, L24SV8454A14, L24SV8454A16, L24SV8454A19, L28SV5276A12, M-4281, MW3030R, P-12969-BLW, P12969BLW, QTE108R, R230091, R230104, R4R230091, R4R230104, RAR230104, RBR230104, RBTDAR230104, RDR230104, ROR230104, S-B230, SB230, SES-3030R, SES3030R, TDAR230104, TE12969, TRE12969, TRES3030R, TWES3030R, USK-552

Back

Specifications

Thread1.250 x 12
Diameter1.180
Brandspicer
Component PositionLeft
MPN220TR130
VMRS011001031
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Type / StyleStraight
BenefitsHigh Quality Bearing Design. Center Lube Fitting. Safety. Purge Valve.

Features

  • High Quality Bearing Design
  • Center Lube Fitting
  • Safety
  • Purge Valve

Includes

One (1) Left Hand Steering Tie Rod End


Warranty

Twelve (12) Months/1 Year; some exceptions may apply depending on application and part
