Dana Spicer Pinion Shaft End Yoke - 1760 Series - 131440K
Details
When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This kit is for the 1760 Series, has 49 splines, a BP yoke style and a 3.818 in. hub diameter.
Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.
Whether you are driving between the lines or outsideof them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today' most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Cross References
131440, 131440K, 2719-131440K, 2719131440K, E131440K, ETN131440K, H131440K, SP131440K, ZBP131440K
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913221492 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | MX |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708990000 |
| Item Quantity Size UOM: | EA |
| Assembly: | Y |

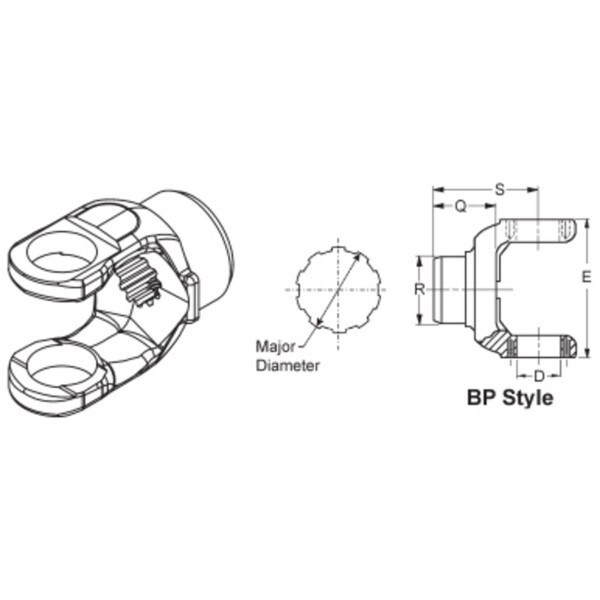

| C-Bore Depth: | 0.12 |
| C/L To End Hub S: | 5.2 |
| Hub Diameter R: | 3.818 |
| Includes Slinger/Plug: | Y |
| Involute Spline: | Y |
| Length Thru Hole Q: | 2.125 |
| Major Diameter: | 2.544 |
| Material: | Steel |
| Outside Yoke Dimension (In) E: | 7 |
| Prop 65: | No |
| Series: | 1760 |
| Spline Count: | 49 |
| Type: | Splined Hole |
| Yoke Bearing Dimension (In) D: | 1.938 |
| Yoke Style: | BP |
| Description (Long Product Description): | Pinion Shaft End Yoke |
| Description (Short Product Description): | Diff End Yoke |
| Description (Extended Product Description): | Pinion Shaft End Yoke |
Features
- Dana engineering-approved for fit, form and function
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Strength and durability for long life.
- Tested for unparalleled reliability.
