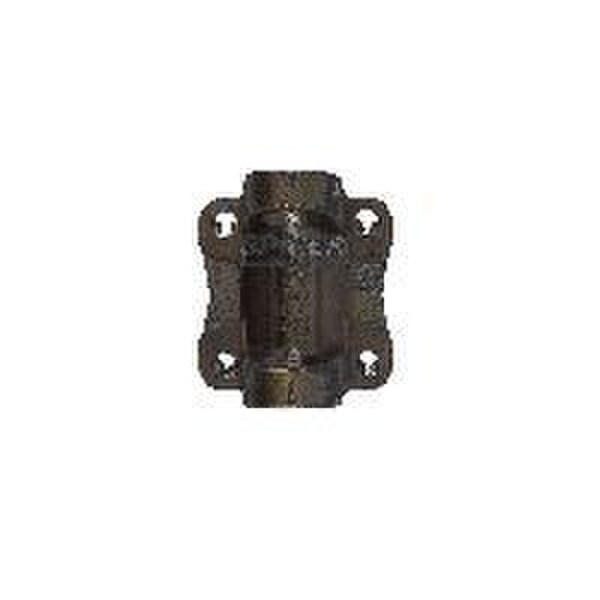

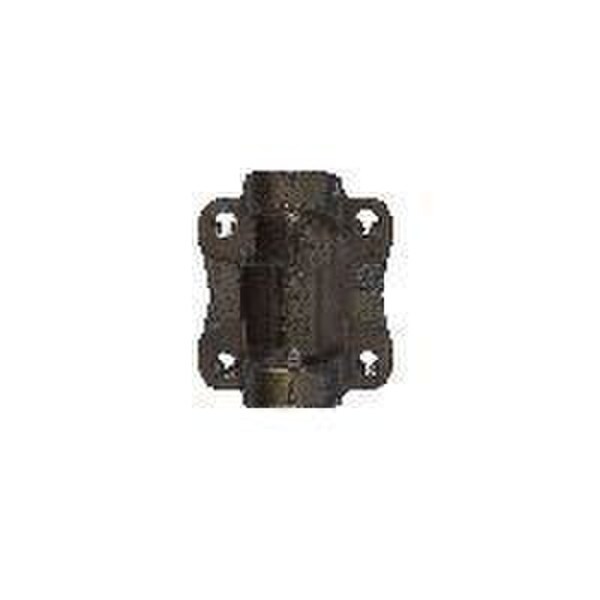

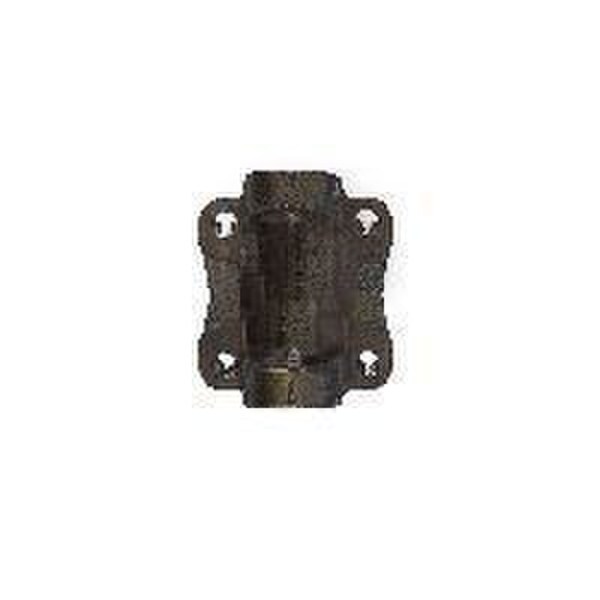

DANA Spicer Flange Yoke 1310 Rectangular Steel - 2-2-1309 - 2-2-1309
Details
When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This is a 1310 Series flange yoke. Manufactured with OE tooling and technology, the Spicer brand guarantees a perfect fit, reliable finish and superior function.
Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.
Whether you are driving between the lines or outsideof them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today' most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 23913231675 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | Mx |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708995300 |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Drive Shaft Flange Yoke |
| Description (Short Product Description): | Flange Yoke |
| Description (Extended Product Description): | Drive Shaft Flange Yoke |

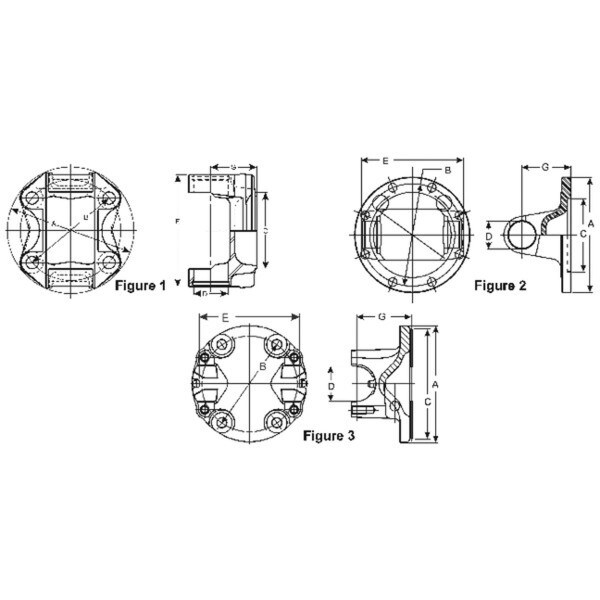

| Bolt Circle Dia. In. (B): | 3.198 |
| Bolt Hole Dia. In (B): | .400 - Drilled |
| Design: | Rectangular |
| Flange Face To C/L In. (G): | 1.781 |
| Flange Or Swing Dia. In. (A): | 4.14 |
| Joint Angle #1: | 3 |
| Material: | Steel |
| Number Of Bolt Holes: | 4 |
| Outside Yoke Dimension In.(E): | 3.469 |
| Pilot Dia. M=Male F=Female (C): | 1.968 - Male |
| Prop 65: | No |
| Series: | 1310 |
| Yoke Bearing Dimension In. (D): | 1.062 |
