DANA Spicer End Yoke 1350 10 Spline - 3-4-2051-1 - 3-4-2051-1
Details
When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This 1350 Series end yoke has 10 splines, a BS yoke style and 1.875 in. hub diameter.
Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.
Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 23913233358 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | Us |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708990000 |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Drive Shaft End Yoke |
| Description (Short Product Description): | Drive Shaft End Yoke |
| Description (Extended Product Description): | Drive Shaft End Yoke |

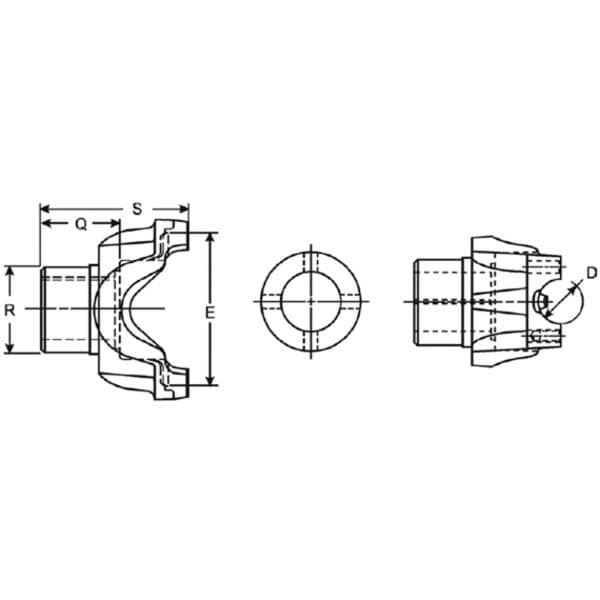

| C/L To End Hub S: | 3.125 |
| Hub Diameter R: | 1.875 |
| Involute Spline: | N |
| Joint Angle #1: | 22 |
| Length Thru Hole Q: | 1.656 |
| Major Diameter: | 1.181 |
| Material: | Steel |
| Outside Yoke Dimension (In) E: | 3.625 |
| Prop 65: | No |
| Series: | 1350 |
| Spline Count: | 10 |
| Type: | Splined Hole |
| Yoke Bearing Dimension (In) D: | 1.188 |
| Yoke Style: | Bs |
