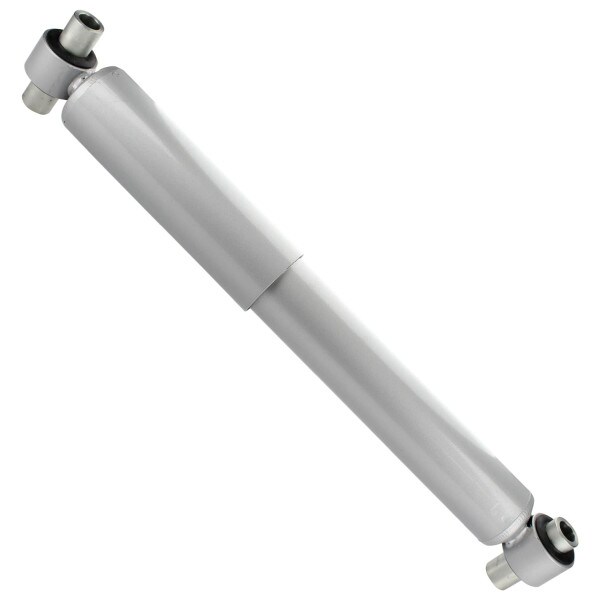

Match Made Drive Axle Shock - APL-101742

SKU APL-101742
$53.90
QuantityPrice
1 – 1$53.90
2 – 4$50.87
5 +$49.83
(0) No Reviews yet

Details

Product Description

As featured in School Bus Fleet Magazine!

Shock absorbers are critical components of a truck's suspension system. Not only do they absorb rough road impacts, but they reduce vibrations from potholes and uneven surfaces making it easier to brake and safer to move freely on long-haul trips.

This Match Made shock absorber is designed for several commercial vehicle applications including Ford, Freightliner and Thomas models using FAS II Airliner suspension and drive axle applications. It contains a chrome plated piston rod that prevents corrosion, extending the life of the product, and a square groove PTFE piston seal for low friction. It also contains a specially designed STOP control component to prevent rod punctures and valve damage. This aftermarket shock has a proprietary bushing formulation proven to outlast other brands tested and are produced with unique oil seal design to control loss of shock oil and nitrogen gas charge. Upper and lower valve packages are made from 100% disk technology. The weld work on this shock has the highest breakpoint rating in the industry, as an added bonus. It has a 14.96 in. to 22.95 in. compressed to extended length measurement. The stroke measures at 7.99 in. and has a bore size of 1.75 in.

This shock has a two year warranty.

Match Made is proud to engineer dependable aftermarket replacement parts for all types of heavy duty vehicles using the finest methods and designs in modern technology. These shock absorbers are engineered for long-lasting performance and reliability to combat common failure modes that will allow drivers to enjoy a safer and more controlled drive.


Features

  • Ford, Freightliner Cascadia (current years) and Thomas makes among other commercial vehicles
  • Designed for FAS II Airliner suspensions
  • For drive axle vehicles
  • 14.96 in. to 22.95 in. Compressed to Extended Length
  • 7.99 in. stroke
  • 1.75 in. bore size
  • Chrome Plated piston rod that prevents corrosion and extends life of product
  • Square groove PTFE piston seal for low friction
  • 100% disk technology in upper and lower valve packages
  • Robtoic welding has highest breakpoint rating in the industry
  • Proprietary bushing formulation proven to outlast competitors
  • Produced with unique oil seal design to control loss of shock oil and nitrogen gas charge
  • Two year warranty

Includes

One shock Absorber


Warranty

2 year


Cross Reference

018045E, 018124B, 02-00376, 02-00495, 02-01759, 02-02736, 02-02736PLUS, 0202736PLUS, 0202738PLUS, 0202739PLUS, 03-1106460, 10-13051-001, 10-13776-000, 10-13859-000, 1000-SA5724, 1000SA5724, 1012703000, 1013051001, 101345044, 101345054, 1013776000, 1013859000, 1083310, 1085005, 1085302, 1091364, 1091373, 118045C, 118045DA, 118045EA, 118045EB, 118045LA, 118045RA, 118045RB, 118124C, 118124E, 118124F, 118124K, 118124P, 12051176, 12051177, 12051179, 12051199, 12051242, 12051243, 12051244, 12051327, 12051328, 12051329, 1205219, 12100005, 12128, 1253069B000, 1254190B000, 1267395B000, 1270007, 1275943B, 1288701, 1288702, 12B51, 12J510, 12J510GS, 12J571, 12L5100, 12L5114, 12L558, 12L567, 12L588, 12L589, 12L596, 12L597, 134134C, 141048, 14392, 14396, 14QK-392AM, 14QK-392AM3, 14QK-392BM, 14QK-392BM3, 14QK-392M, 14QK-396, 14QK-396M, 14QK2100P2, 14QK2105, 14QK2108, 14QK2108P1, 14QK322M, 14QK366P4, 14QK372M2, 14QK392AM, 14QK392AM3, 14QK392BM, 14QK392BM3, 14QK392M, 14QK396, 14QK396M, 14QK422M, 16-13957-000, 16-13957-003, 16-14667-000, 16-15817-000, 16-18708-000, 1613952000, 1613957000, 1613957003, 1614667000, 1615817, 1615817000, 1616591000, 1618103000, 1618708000, 16771, 16773, 1707405, 1714601, 17358-01, 1735801, 17408-01, 1740801, 1745500, 1804518045A, 18124A, 1828601, 1880001, 19249, 1949501, 19603, 200376, 200495, 2012501, 2012601, 201759, 201890, 202225, 202736, 202738, 202739, 202741, 2029200C91, 204010, 20887, 21497-01, 2149701, 218045AA, 218045DA, 218045EA, 218045FA, 218124AA, 218124E, 218124J, 22002293, 22007701, 22012095, 22012166, 22311, 22862, 2312262, 23651, 25624730, 25624947, 25625743, 25631285, 27713, 277A13, 282AH7C77, 290460, 2AH7C77, 30009612284, 301366, 3050961284, 31106460, 315395, 315399, 315546, 3171462, 3192890, 3199940, 3199942, 3199967, 341617, 341628, 34183312, 34185302, 34189420, 345613, 345618, 359010001, 37301-0018, 373010018, 373013401, 373013404, 373013405, 373013409, 373013412, 37414, 37431, 37433, 383379C91, 3919598, 3919902, 3919906, 3919916, 3919931, 3919940, 3919942, 3919961, 3919967, 393803536, 393903404, 3945810, 3945811, 3945816, 3946239, 3949226, 3949240, 3U2Z18124BV, 3U2Z18124BW, 3U2Z18124JAA, 40-0242, 400242, 406967, 410024, 410040, 418045AA, 418124A, 418124D, 438002, 441602, 450739, 45087, 4518080BA, 453575C91, 471203C91, 471700000000, 471700000000000, 471700002808, 471700002809, 471700005079, 472000000000, 47200000000000, 474002C91, 47902-3, 4790218, 4790228, 479023, 481700000000, 481700000000000, 481700006848, 48500-3710, 485003710, 485003710A, 4940606, 4940662, 4975497, 507-2, 508-17, 508-30, 50817, 50830, 510002, 510018, 517-05001-23, 5170500123, 518124C, 5321144004, 535228, 550-13, 550-73, 55002, 55013, 55073, 5533699, 5544060, 5544581, 5552454, 5554184, 5554814, 557014, 57306833, 573245, 573246, 57365110, 57366811, 57366833, 57374028, 57374425, 57645, 58059, 59016, 59020, 59040, 59042, 596690044025, 5979484, 5U2Z18V124AHA, 600106, 60665024, 60670009, 61310434, 61310478, 614966, 618077DL, 63676, 650110, 650110MT, 65103, 65108, 65108M, 65110, 65110M, 651116, 65112, 653511-03, 65351103, 65412, 65415, 65425, 65428, 65449, 65465, 65466, 65471, 65474, 65490, 65511, 659300, 66427, 665092, 665115, 665118, 665198, 665454, 665531, 665533, 66554540I, 665569, 665680, 66568240Y, 665727, 665733, 665760, 665767, 665784, 665804, 665830, 665926, 665931, 665969, 66607, 66627, 66646, 66670, 66811, 66811M, 66833, 66833MM, 66860, 66897, 66969, 675039, 680009, 680017, 680026, 68002640Y, 680236, 680238, 680240, 68024040Y, 680249, 680281, 680339, 680457, 680464, 680573, 680579, 680611, 680616, 680782, 6813260200, 690076, 69680, 69688, 70034, 70042, 700423, 700423MT, 70088, 70163, 702135-01, 70213501, 70311, 70317, 70448, 711003, 716008, 718045BA, 718045EA, 718045FA, 718124A, 718124BA, 718124EA, 718124FA, 727602, 727619, 727623, 727639, 727642, 728606, 728617, 728622, 74028, 74028M, 74425, 78015, 8026658, 8077874, 8124C, 818045A, 818124A, 83122, 83126, 83176214, 83176219, 83176235, 83200, 83202, 83209, 83218, 83219, 83223, 83303, 83308, 83312, 85005, 85010, 85011, 85013, 85030, 85045, 85046, 85050, 85054, 85078, 8516306660, 85300, 85302, 85307, 85702, 85716, 85724, 85736, 85916, 85939, 85943, 85983, 8700101A, 87252000002, 87252000004, 873622C91, 88-1417, 88-1541, 8805-1022, 88051022, 881417, 881541, 8901029, 89402, 89406, 89409, 89414, 89419, 89420, 89430, 89432, 89434, 89435, 89440, 89441, 89443, 90-1896, 90044001, 90044626, 90044679, 90044868, 90045068, 90045384, 90045572, 901813SP1, 901896, 901951SP1, 902252, 902586, 902587, 902589, 942300, 94703, 97221000170, 97999902634, 97999902636, 98583020, A-20887, A-2230, A-2232, A-4084, A16135, A20886, A20887, A2218, A2230, A2232, A2240, A4084, A4089, A4890, A83312, A85005, A85045, A85302, A85724, A89402, A89409, A89430, A89443, AA502, AA504, ABPN32G900001, AMS 600102, AMS 600172, AMS600102, AMS600106, AMS600117, AMS600134, AMS600172, AMS650108, AMS650110, AMS650112, AMS650412, AMS650415, AMS650425, AMS650466, AMS650471, AMS65110, AMS65490, AMS660102, AMS660106, AMS660117, AMS660134, AMS660172, AMS660188, AMS660201, AMS660225, AMS700103, AMS700423, APL-101753, AR-134-C, AR134C, AR718C, AR995, AS1086, AS30698, AS3069B, AS485G, AS575B, ASH1130, ASH1131, ASH1132, ASH1135, ASH1155, ASH23454, ASH23458, ASH394, ASH684, ASH706, ASHV1015, ASHV1025, ASHV1050, AT546, AT568, AT713, AT715, AX-269A, AX-97A, AX269A, AX97A, B-22311, B-22862, B-23651, B-24579, B-25436, B22311, B22862, B23651, B25436, B71-1003, B71-6008, B711001, B711003, B716002, B716004, B716008, B716013, B716015, B716016, B716016A, B716018, B8QZ-18124-A, B8QZ18124A, C1TT-18045-C, C1TT18045C, C1TZ-18045-C, C1TZ-18124-C, C1TZ-18124-E, C1TZ-18124-F, C1TZ-18124-P, C1TZ18045C, C1TZ18124C, C1TZ18124E, C1TZ18124F, C1TZ18124P, C4HZ-18124-A, C4HZ-18124-D, C4HZ18124A, C4HZ18124B, C4HZ18124D, C4TZ-18124-AB, C6PF-18077-DL, C6PF18077DL, C711011PLUS, C711014, C711017, C716005, C7HZ-18124-A, C7HZ18124A, C8HA-18045-A, C8HA18045A, CAH-028, CAH028, CAT733, CAT760, CAT761, CAT972, CAX-811, CAX-833, CAX-894, CAX811, CAX833, CAX894, CLT109, D0HA-18045-E, D0HA18045D, D0HA18045E, D0HZ-18124-B, D0HZ18124B, D1TF-18045-LA, D1TF18045LA, D1TZ-18124-F, D1TZ18124F, D25072, D2EF-18045-AA, D2EF-18124-AA, D2EF18045AA, D2EF18124AA, D2HF-18045-DA, D2HF18045DA, D2HT-18045-EA, D2HT18045EA, D2HZ18080A, D2HZ18125A, D2HZ18125B, D2KF-18045-AA, D2KF-18124-AA, D2KF18045AA, D2KF18124AA, D2TF-18045-AA, D2TF-18045-FA, D2TF18045AA, D2TF18045FA, D2TZ-18124-E, D2TZ-18124-J, D2TZ18124E, D2TZ18124J, D4HA18080A, D4HA18080AA, D4TF-18045-AA, D4TF18045AA, D5TZ-18124-C, D5TZ18124C, D7HF-18045-FA, D7HF18045FA, D7HT-18045-BA, D7HT-18045-EA, D7HT-18124-BA, D7HT-18124-EA, D7HT-18124-FA, D7HT18045BA, D7HT18045EA, D7HT18124BA, D7HT18124EA, D7HT18124FA, D7KF-18045-EA, D7KF18045EA, D8HZ18125A, DANSR1VJ100, DN1085302, DN34183312, DN34185302, DN34189420, DPM65110, DPM65112, DPM66811, DPM66833, DPM74028, E0HZ18124A, E3105, E3130, E3146, E66833, E74028, E83200, E83202, E83218, E83223, E83308, E83312, E85005, E85010, E85302, E89409, E89420, E89430, EAE89430, ECEMN74028, EF65490, EIE3105, EIE3130, EIE3146, EIE66833, EIE83202, EIE83218, EIE83223, EIE83312, EIE85005, EIE85302, EIE89409, EIE89420, EIE89430, EIEMN65110, EIEMN66811, EIEMN66833, EIEMN74028, EMN65108, EMN65110, EMN65112, EMN66627, EMN66811, EMN66833, EMN6833, EMN74028, EMNEMN65110, EMNEMN65112, EOMN65112, EU65108, EU65110, EU66811, EU66833, EU74028, EU85302, EUE83202, EUE83312, EUE85005, EUE85302, EUE89409, EUE89420, EUE89430, EUEMN65108, EUEMN65110, EUEMN65112, EUEMN66627, EUEMN66811, EUEMN66833, EUEMN6833, EUEMN74028, EUEMNEMN65110, EUEMNEMN65112, EUSA65108, EUSA65110, EUSA65112, EUSA66627, EUSA66811, EUSA66833, EUSA74028, F0HT18080AA, F0HZ18125A, F1HT-18045-DA, F1HT-18045-EA, F1HT-18045-EB, F1HT-18045-RA, F1HT-18045-RB, F1HT18045DA, F1HT18045EA, F1HT18045EB, F1HT18045RA, F1HT18045RB, F1HZ-18124-B, F1HZ-18124-C, F1HZ-18124-J, F1HZ-18124-K, F1HZ18124AA, F1HZ18124C, F1HZ18124K, F65108, F65110, F65112, F66811, F66833, F6HT-18045-JB, F6HT-18045-JC, F6HT-18045-KA, F6HT-18124-JC, F6HT-18124-KA, F6HT18045AA, F6HT18045CC, F6HT18045EC, F6HT18045GC, F6HT18045HB, F6HT18045JB, F6HT18045JC, F6HT18045KA, F6HT18080FC, F6HT18124JC, F6HT18124KA, F6HZ-18124-B, F6HZ-18124-J, F6HZ-18124-KA, F6HZ-18125-C, F6HZ18080FC, F6HZ18124C, F6HZ18124E, F6HZ18124F, F6HZ18124J, F6HZ18124KA, F74028, FLF65108, FLF65110, FLF65112, FLF66811, FLF66833, FLF74028, FLS-83312, FLS-85005, FLS-85030, FLS-85045, FLS-85302, FLS-85724, FLSD66811, FLSD66833, FVMAE74028, GA85724, GAB85724, GBL 85724, GBL85724, GSX-89409, GSX-89420, GSX-89430, GSX-89432, GSX-89443, H53-21144-004, H5321144004, HS85724, HSA5056, K374-14, K374-3, K374-3-1, K374-33, K374-33PLUS, K374-5, K374-C31, K37414, K3743, K37431, K37433, K37433PLUS, K3745, K374C31, KG6004, KG6008A, KG6010, KW665092, KWK3743, KWK3745, L57645, L59020, L59040, L76026, LT66811, LT66833, LTL57645, LTL59020, LTL59040, LTL76026, M65108, M65110, M65112, M65490, M66627, M66811, M74028, M74425, M85005, M85045, M85724, M89402, M89409, M89420, M89430, M89443, MAE 65108, MAE 65490, MAE/65490, MAE65108, MAE65490, MAE74028, MBSA65108, MBSA65110, MBSA66811, MBSA66833, MBSA74028, MDSA74028, MERM85724, MI65108, MI65110, MI65112, MI66811, MI66833, MI74028, MISA65108, MISA65110, MISA65112, MISA66627, MISA66811, MISA66833, MISA66897, MISA6833, MISA74028, MN65108, MN65110, MN65112, MN66627, MN66811, MN66833, MN66833MM, MN66897, MN6811, MN6833, MN6897, MN74028, MNEMN65108, MNEMN65110, MNEMN65112, MNEMN66627, MNEMN66811, MNEMN66833, MNEMN74028, MNEMNEMN65110, MNEMNEMN65112, MNSA65108, MNSA65110, MNSA65112, MNSA66811, MNSA66833, MNSA74028, MO65110, MO65112, MO66627, MO66811, MO66833, MO6811, MO6833, MO74028, MON65108, MON6833, MON74028, MR66811, MR66833, MR74028, MS65108, MS65110, MS65112, MS66811, MS66833, MS6811, MS6833, MS74028, MSMAE74028, MSMDSA74028, N65108, N65110, N65112, N66627, N66811, N66833, N6833, N74028, NE6811, NEW900-44-868, NEW90044626, NEW90044868, NS500699, NW57306833, NW57366811, NW57366833, NW57374028, NW65110, NW66811, NW66833, NW6811, NW6833, NW6897, NW74028, NW90044679, NW90044868, NY90044626, PROSH85724, RC SA5005, RC SA5724, RCSA5005, RCSA5724, RWAS3069B, RWAS575B, S-20887, S-2230, S-22311, S-2232, S-22862, S-23651, S-25436, S-4084, S20886, S20887, S2218, S2230, S22311, S2232, S22345, S2240, S22862, S23361, S23651, S25436, S4084, S4089, S4850-03710, S485001950, S485002750, S485003710, SA5005, SA5045, SA5724, SA65108, SA65110, SA65112, SA66627, SA66811, SA66833, SA66897, SA6833, SA74028, SA74425, SD66811, SD66833, SDA471700002809, SF393, SMR560600, SR1VJ100, T121208, T14-1048, T141048, T141080, T141081, T141082, TANNA-18045-A, TANNA18045A, TDA 85724, TDA66568240Y, TDA85724, TDAM85724, TX654815, TZ18124A, VC83312, VC85302, WA01-85724, WA0185724, WSA0083202, WSA0083312, WSA0085302, XC45-18080-BA, XC4518080BA, Z18124C, ZDRM85724, ZYWSA0083202, ZYWSA0083312, ZYWSA0085302


Specifications

BrandMatch Made
SupersedesAPL-101753
Stroke7.99 in.
MPNAPL-101742
Width4.33 in.
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height3.15 in.
Benefits

This Match Made shock absorber is designed for several commercial vehicle applications including Ford, Freightliner Cascadia (current years) and Thomas models using FAS II Airliner suspension and drive axle applications. It contains a chrome plated piston rod that prevents corrosion, extending the life of the product, and a square groove PTFE piston seal for low friction. It also contains a specially designed STOP control component to prevent rod punctures and valve damage. Upper and lower valve packages are made from 100% disk technology. This aftermarket shock has a proprietary bushing formulation proven to outlast other brands tested and are produced with unique oil seal design to control loss of shock oil and nitrogen gas charge. The weld work on this shock has the highest breakpoint rating in the industry, as an added bonus. It has a 14.96 in. to 22.95 in. compressed to extended length measurement. The stroke measures at 7.99 in. and has a bore size of 1.75 in.
