Gabriel Motor Coach E, J, G Shock - 85711
Details
Shocks are an important component of a truck's suspension system. They take the "beating" from road instabilities and keep vehicles grounded. Driving with bad shocks can be uncomfortable for drivers and create unpredictable accidents during the long-haul trip.

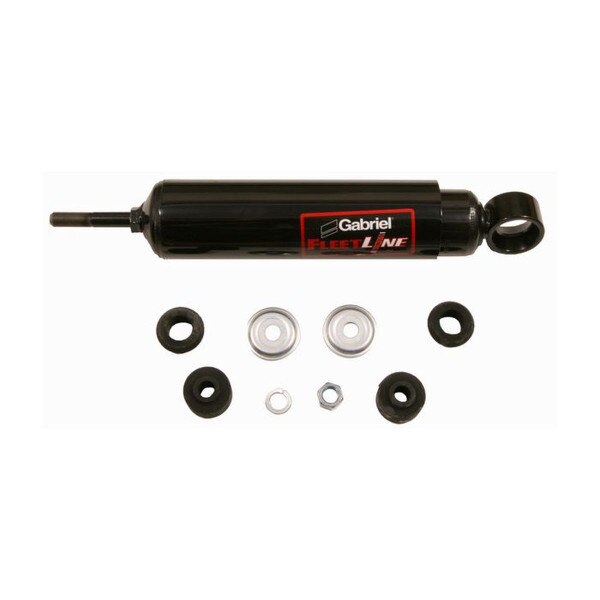

This black Gabriel shock absorber is part of the Fleetline 85000 Series for Class 6-8 trucks. It is designed to fit Motor Coach E, J, G Series vehicles. Its unique design provides increased fluid capacity and cooler operation in extreme conditions. Additionally, this 85000 series shock features D.O.M. (Drawn-Over-Mandrel) tubing to reduce internal wear as well as forged solid steel eye rings and 360 degree arc-welded end mounts to reduce end mount failures. It contains a dust tube and recoil cutoff. It has a rebound of 1435 pounds and a compression of 208 pounds. It contains a 1-5/8 inch bore size and a stroke measurement of 9.28 inches. Lastly, it has compressed to extended length measurements of 15.29 inches to 24.57 inches.
Gabriel Fleetline shocks come with a 12 month or 100,000 mile warranty.
In 1907, Gabriel invented the original automotive shock absorber; and they continue to be one of the most trusted names in the industry for quality shocks.
Cross References
1012703000, 1013021000, 1013063000, 1013211000, 1013634000, 12-05-1150, 12-05-1165, 12-05-1228, 12051150, 12051165, 12051228, 12056053, 1497835, 1517193, 15915, 22012083, 22012083GS, 22012131, 3182842, 3188599, 3192416, 3199976, 3199977, 4975552, 507-10, 50710, 510009, 58913012, 6-367-1, 6-367-11, 6-367-6, 6-367-9, 63671, 636711, 63676, 63679, 64845, 65440, 6544085711, 68035040T, 680352, 680544, 690081, 690102, 695273, 695279, 728800, 74402, 74434, 74451, 85711, 87000, 97-9999-02632, 97999902632, AMS650440, AMS700406, C711002PLUS, C711016, C716015, CAH-001, CAH001, E85711, E87000, F1HZ18124A, OB020570, OE10881
Specifications
| Brand | Gabriel |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | This black Gabriel shock absorber is part of the Fleetline 85000 Series for Class 6-8 trucks. It is designed to fit Motor Coach E, J, G Series vehicles. Its unique design provides increased fluid capacity and cooler operation in extreme conditions. Additionally, this 85000 series shock features D.O.M. (Drawn-Over-Mandrel) tubing to reduce internal wear as well as forged solid steel eye rings and 360 degree arc-welded end mounts to reduce end mount failures. It contains a dust tube and recoil cutoff. It has a rebound of 1435 pounds and a compression of 208 pounds. It contains a 1-5/8 inch bore size and a stroke measurement of 9.28 inches. Lastly, it has compressed to extended length measurements of 15.29 inches to 24.57 inches. |
Features
- Designed to fit Motor Coach E, J, G Series vehicles
- Contains a dust tube and recoil cutoff
- Rebound of 1435 pounds and a compression of 208 pounds
- 1-5/8 inch bore size
- Stroke measurement of 9.28 inches
- Compressed to extended length measurements of 15.29 inches to 24.57 inches
Includes
One shock absorber
Warranty
12 months or 100,000 miles.
