MGM C30L3 S-cam Brake - 1431001
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

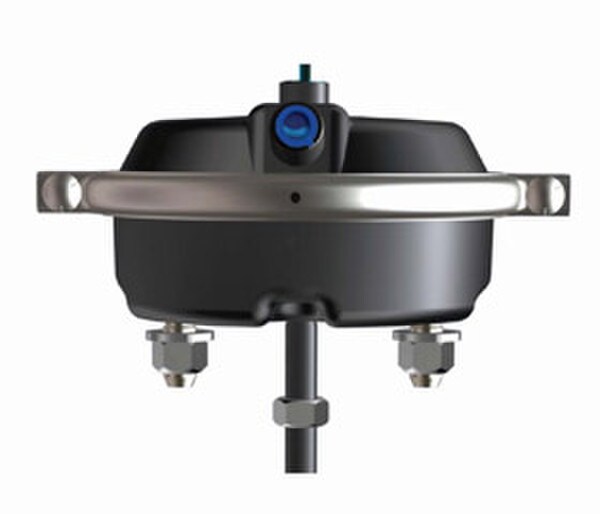

This C30L3 S-cam brake (drum) is designed for heavy-duty commercial vehicles. CL models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield (except C16 2.5). This long stroke C model s-cam brake chamber contains a 3 inch stroke; a 5/8-11 inch mounting bolt thread and a 1.55 mounting bolt length. Service size is 30. Its "A" measurement is 5.31 inches; "B" measurement is 4.36 inches; "C" measurement is 8.24 inches and "D" measurement is 4.75 inches. Its "E" measurement is 5/8-11 UNC; "F" measurement is 5/8- 18 UNF. Inlets measure at 3/8 inches - 18 NPTF and X-min measures 8 inches.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- 3 inch stroke
- 5/8-11 inch mounting bolt thread
- 1.55 mounting bolt length
- Service size is 30
- "A" measurement is 5.31 inches
- "B" measurement is 4.36 inches
- "C" measurement is 8.24 inches
- "D" measurement is 4.75 inches
- "E" measurement is 5/8-11 UNC
- "F" measurement is 5/8- 18 UNF
- Inlets measure at 3/8 inches - 18 NPTF
- X-min measures 8 inches
Includes
C30L3 S-cam brake (drum)
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
1431001MGM, 30SC3ND, 3512204, 50866013, 5554-1431001, 55541431001, 8085327, 85107277, ABPN42A30SC3ND, MG1431001, MGM1431001, OTR OTRSC3000LS, SC3000-LS, SC3000LS, SC30LS, T-30SCELS-01, T30SCELS01, V42 1431029, WA30SC3, ZAJ1431001
Specifications
| Brand | mgm brakes |
| Model Number | C30L3 |
| MPN | 1431001 |
| Width | 9.5 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 20 in. |
| Benefits | This C30L3 S-cam brake (drum) is designed for heavy-duty commercial vehicles. CL models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield (except C16 2.5). This long stroke C model s-cam brake chamber contains a 3 inch stroke; a 5/8-11 inch mounting bolt thread and a 1.55 mounting bolt length. Service size is 30. Its "A" measurement is 5.31 inches; "B" measurement is 4.36 inches; "C" measurement is 8.24 inches and "D" measurement is 4.75 inches. Its "E" measurement is 5/8-11 UNC; "F" measurement is 5/8- 18 UNF. Inlets measure at 3/8 inches - 18 NPTF and X-min measures 8 inches. |
