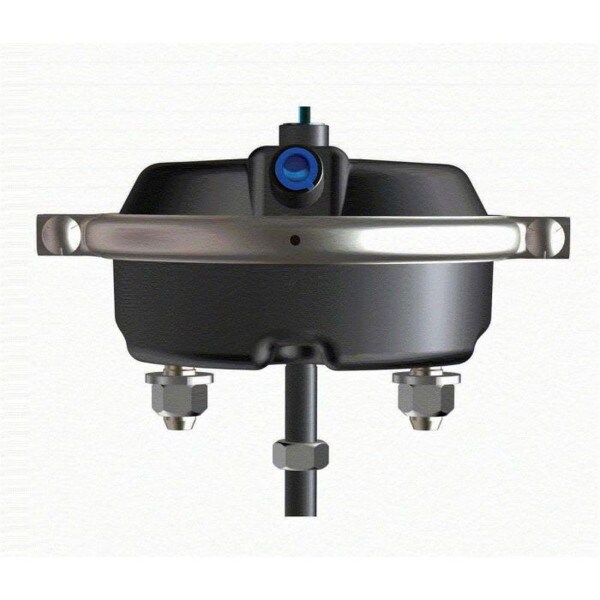

MGM C20 S-cam Brake - 1420001
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.
This C20 S-cam brake (drum) is designed for heavy-duty commercial vehicles. C models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield (except Type 12 and 16). This standard stroke C model s-cam brake chamber contains a 2.25 inch stroke; a 5/8 11 inch mounting bolt thread and a 1.5 inch mounting bolt length. Service size is 20. Its "A" measurement is 4.16 inches; "B" measurement is 3.41 inches; "C" measurement is 6.92 inches; "D" measurement is 4.75 inches; "E" measurement is 5/8-11 inches; and "F" measurement is 5/8-11 inches. Inlets measure at 3/8-18 inches.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- 2.25 inch stroke
- 5/8 11 inch mounting bolt thread
- 1.5 inch mounting bolt length
- Service size is 20
- "A" measurement is 4.16 inches
- "B" measurement is 3.41 inches
- "C" measurement is 6.92 inches
- "D" measurement is 4.75 inches
- "E" measurement is 5/8-11 inches
- "F" measurement is 5/8-11 inches
- Inlets measure at 3/8-18 inches
Includes
C20 S-cam brake (drum)
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
05-120, 106725R91, 12381901, 1420001-MGM, 1420001MGM, 1420001P, 1420077, 1420111, 179.SC20, 180 1366095, 19QE465RP3, 2000SC, 20SCN1C, 2602424C91, 288803, 3521194, 5396SC20, 5554-1420001, 55541420001, 592961C91, 66140, 8084540, 875 8084540, AKN36200, APL-100026, E-20S, EBC20S, FLTS20S20, FRL 42037004, HALSC20, HD20S, KN36200, KSC20, L1078, MGM1420001, MGM1420077, MGM1420111, N36220AC, R870020, SBT20, SC-20, SC20, SC2000, SC20M1D, ZAJ1420001, ZZSC20
Specifications
| Brand | mgm brakes |
| Model Number | C20 |
| MPN | 1420001 |
| Width | 9 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 10 in. |
| Benefits | This C20 S-cam brake (drum) is designed for heavy-duty commercial vehicles. C models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield (except Type 12 and 16). This standard stroke C model s-cam brake chamber contains a 2.25 inch stroke; a 5/8 11 inch mounting bolt thread and a 1.5 inch mounting bolt length. Service size is 20. Its "A" measurement is 4.16 inches; "B" measurement is 3.41 inches; "C" measurement is 6.92 inches; "D" measurement is 4.75 inches; "E" measurement is 5/8-11 inches; and "F" measurement is 5/8-11 inches. Inlets measure at 3/8-18 inches. |
