MGM C16 S-cam Brake - 1416001
Details
*THIS PART IS NON-RETURNABLE*
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

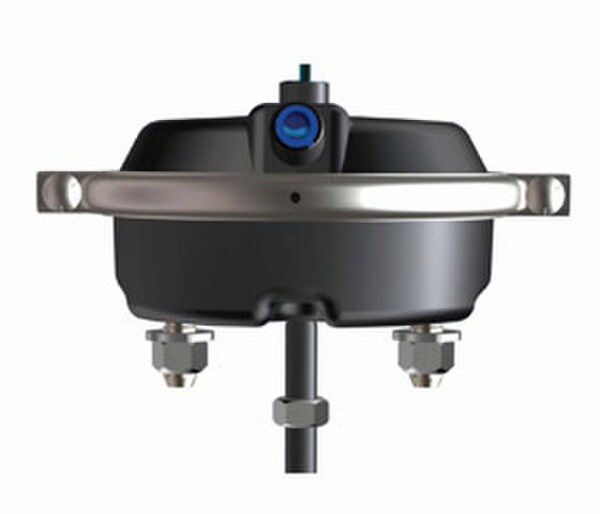

This C16 S-cam brake (drum) is designed for heavy-duty commercial vehicles. C models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8 inches NPTF and it contains the added benefit of a center hole shield (except Type 12 and 16). This standard stroke C model s-cam brake chamber contains a 2.25 inch stroke; a 7/16-14 inch mounting bolt thread and a 1.17 inch mounting bolt length. Service size is 16. A measurement is 4.43 inches. B measurement is 3.64 inches. C measurement is 6.66 inches. D measurement is 3 inches. E measures 7/16-14 UNC. F measures 1/2-20 UNF and inlets are 3/8 inches. X-min measures 4 inches.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- 2.25 inch stroke
- 7/16-14 inch mounting bolt thread
- 1.17 inch mounting bolt length
- Service size is 16
- 4.43 inches
- B measurement is 3.64 inches
- C measurement is 6.66 inches
- D measurement is 3 inches
- E measures 7/16-14 UNC
- F measures 1/2-20 UNF
- Inlets are 3/8 inches
- X-min measures 4 inches
Includes
C16 S-cam brake (drum)
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
129160011, 1416001-MGM, 1416001MGM, 1503069, 1607397C91, 1671198C91, 16SCN1, 16SCN1-C, 16SCN1C, 16SCND, 228052, 3519080, 3702736, 3948307, 456015, 5554-1416001, 55541416001, 593401C91, ABPN42A16SCND, E-16S, EBC16S, FLTS16S20, HALSC16, MA36169, MGM1416001, PLBSC16, R870016, SC16, SC1600, SC16M1D, ZAJ1416001, ZZSC16
Specifications
| Brand | mgm brakes |
| Model Number | C16 |
| MPN | 1416001 |
| Width | 7.5 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 8 in. |
| Benefits | This C16 S-cam brake (drum) is designed for heavy-duty commercial vehicles. C models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8 inches NPTF and it contains the added benefit of a center hole shield (except Type 12 and 16). This standard stroke C model s-cam brake chamber contains a 2.25 inch stroke; a 7/16-14 inch mounting bolt thread and a 1.17 inch mounting bolt length. Service size is 16. A measurement is 4.43 inches. B measurement is 3.64 inches. C measurement is 6.66 inches. D measurement is 3 inches. E measures 7/16-14 UNC. F measures 1/2-20 UNF and inlets are 3/8 inches. X-min measures 4 inches. |
