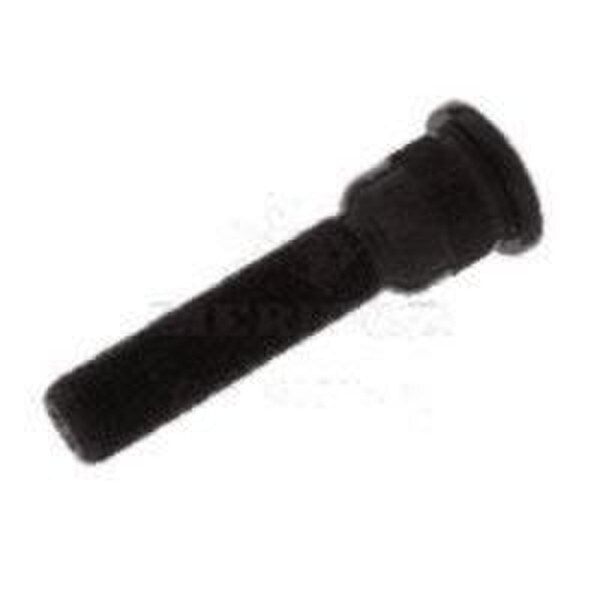

Meritor WHEEL STUD, Pack(4EA) - 20X2390
Specifications
| ESC | 0 |
| Brand | Meritor Genuine |
| MPN | 20X2390 |
| Width | 3.8 |
| VMRS | 018-003-009 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 3.85 |
Features
- Body Diameter: 1.222 in.
- Body Length: 1.00 in.
- Grade: 10.9
- Head Diameter: 1.59 in.
- Head Style: Round
- Head Thickness: 0.328 in.
- Length from Under Head: 4 1/2 in.
- Metric Thread Size: M22 X 1.5-6g
- Notes: Grade 10.9 is the metric equivalent of Grade 8
- OEM: Gunite W1205; Meritor R008986; Euclid E-8986
- Serration: Serrated
- Serration Diameter: 1.2626 in.
- Serration Length: 0.437 in.
- Thread Diameter: 22.0 mm
- Thread Length: 2.62 in.
- Threads per Inch: 1.5 per mm
- Type: Headed
- Wheel End Thread Direction: RH
Warranty
1 Year
