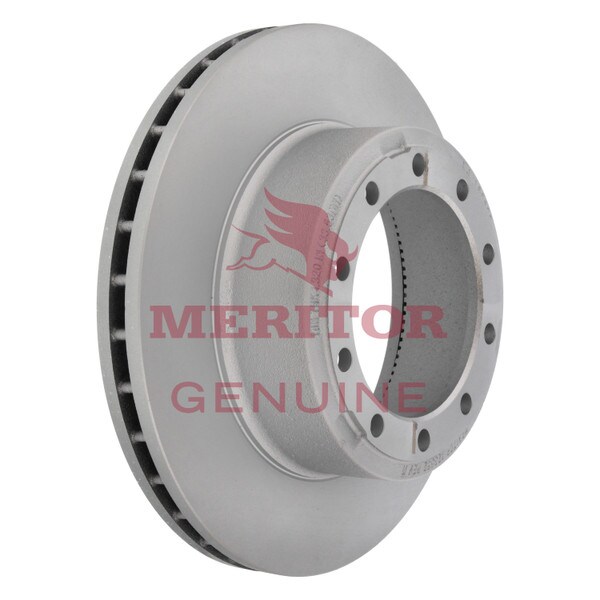

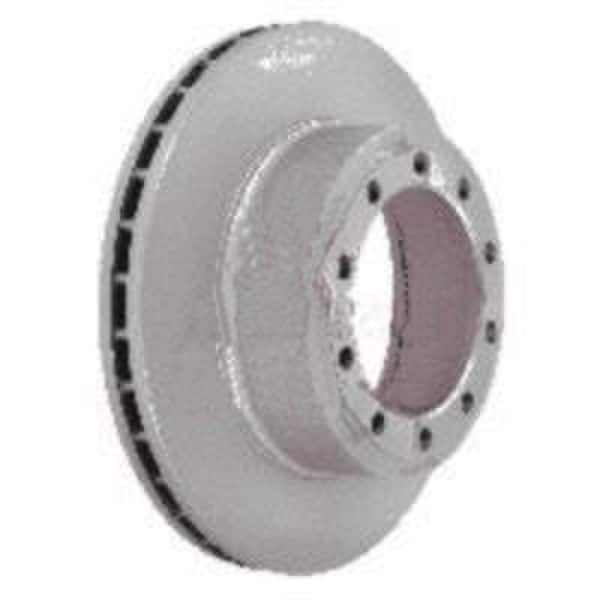

Meritor Genuine ROTOR/BAL/ABS - 23123552009
Details
HYDRAULIC BRAKE - ROTOR
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Cross References
10003830, 10003830A, 10030921, 12083013, 123552, 141494, 153123552, 1646750C1, 164675DC1, 23-123552-009, 23122892002, 23122897, 23122897002, 23123552, 23123552002, 23123552004, 2594596C1, 3531663C2, 381.113.20, 381.113.21, 38111320, 38111321, 439 23123552004, 490 4C4Z2C026AA, 54771F, 54771F65, 54771P, 54771P-65, 655 3531663C2, 655 3631663C1, 785 RC4414552, 82F E12588018, BA141494, BW141494, CM10030921, CNM 10003830, CNM 107312, CNM10030921, D6133, D6151, D6175, D6175M, D6183, D6183M, DN23122897, DP23122897, DT23122897, DW23122897, E12588018, E12688018, E14552A, E4247, EUE4247, FGA 23123552004, FGA 23123552004X, FLT-1700149S1, FLT1700149S1, GUD6133, GUD6151, GUD6183, IH1646750C1, IH164675DC1, KHD6133, KHD6151, KHD6183, PRT1494, RB23122892002, RB23122897002, RC-4414552, RC4414552, WE54771, WE54771F, WE54771F65, WE54771P, WW54771, WW54771F, WW54771P
Specifications
| ESC | 0 |
| Brand | Meritor Genuine |
| Supersedes | 23123552004 |
| MPN | 23123552009 |
| Width | 15.75 |
| VMRS | 013-017-001 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 5.5 |
| Benefits | ROTOR/BAL/ABS |
Features
- Application: Several Medium Duty Vehicle Sizes and Name Plates
- Bolt Circle Diameter: 7.25 in.
- Bolt Hole Diameter: 0.59 in.
- Bolt Hole Number: 10
- Discard Thickness: 1.32 in.
- New Disc Thickness: 1.44 in.
- Outside Diameter: 15.00 in.
- Pilot Diameter: 6.00 in.
- Rotor Depth: 4.44 in.
- Type: Hat
Includes
ROTOR/BAL/ABS
Warranty
Warranty depends on application and product type. Contact us to learn more.
