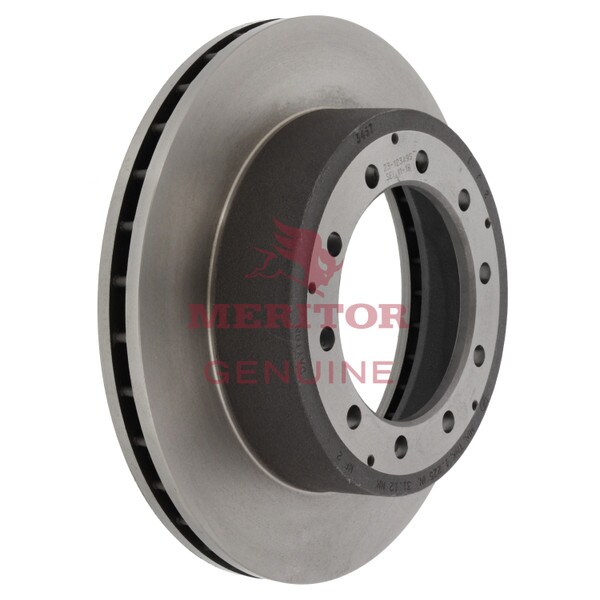

Meritor Genuine ROTOR - 23123495002
Details
HYDRAULIC BRAKE - ROTOR
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Cross References
123296, 15661543, 23123495002, 54106, 54106F, 54106P, 54106PF, DW123296, E12585016, E12685016, GM15661543, WB54106, WB54106F, WB54106P, WB54106PF, WE54106F, WE54106P, WW54106, WW54106F
Specifications
| ESC | 0 |
| Brand | Meritor Genuine |
| MPN | 23123495002 |
| Width | 16 |
| VMRS | 013-017-001 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 6.15 |
| Benefits | ROTOR |
Features
- Application: Several Medium Duty Vehicle Sizes and Name Plates With Disc Wheel
- Bolt Circle Diameter: 7.25 in.
- Bolt Hole Diameter: 0.59 in.
- Bolt Hole Number: 10
- Discard Thickness: 1.23 in.
- New Disc Thickness: 1.35 in.
- Notes: 5 Tapped Holes for ABS Mounting
- Outside Diameter: 14.75 in.
- Pilot Diameter: 6.00 in.
- Rotor Depth: 3.81 in.
- Type: Hat
Includes
ROTOR
Warranty
Warranty depends on application and product type. Contact us to learn more.
Returns, Warranty & Cores
For warranty, return, or core information please reach out to customer service or visit our Policy & Procedures page located at the footer of our website.
