Meritor Genuine ROTOR - 23123486002
Details

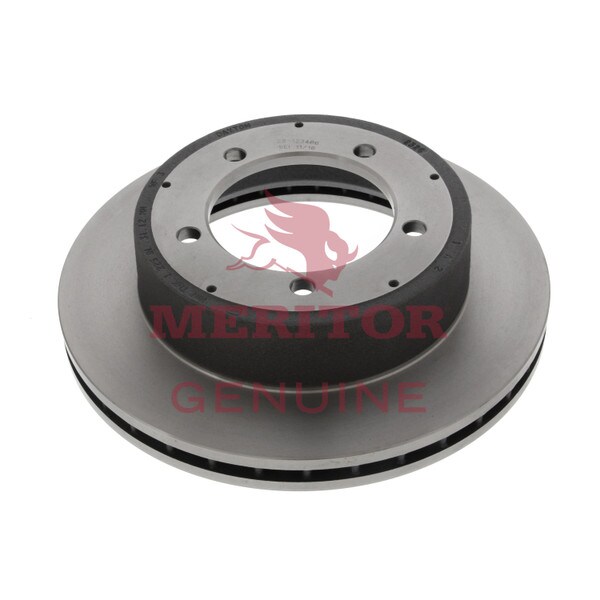

HYDRAULIC BRAKE - ROTOR
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Cross References
120.80008, 12080007, 141271, 145574, 23-123486-002, 23123486002, 56418, 56994, BD125088, BD125359, BD125665, E11310, E12585013, E4229
Specifications
| ESC | 0 |
| Brand | Meritor Genuine |
| MPN | 23123486002 |
| Width | 16 |
| VMRS | 013-017-001 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 6.15 |
| Benefits | ROTOR |
Features
- Application: Several Medium Duty Vehicle Sizes and Name Plates With Disc Wheel
- Bolt Circle Diameter: 6.75 in.
- Bolt Hole Diameter: 0.66 in.
- Bolt Hole Number: 05
- Discard Thickness: 1.23 in.
- New Disc Thickness: 1.35 in.
- Notes: 5 Tapped Holes for ABS Mounting (Metric)
- Outside Diameter: 14.75 in.
- Pilot Diameter: 5.40 in.
- Rotor Depth: 3.81 in.
- Type: Hat
Includes
ROTOR
Warranty
Warranty depends on application and product type. Contact us to learn more.
