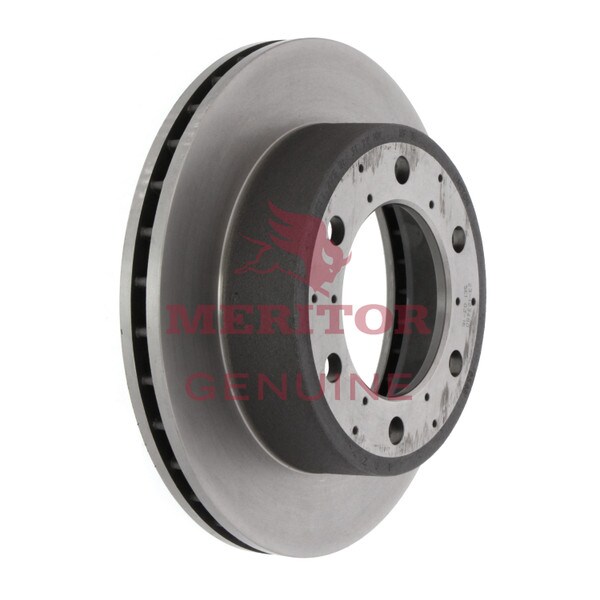

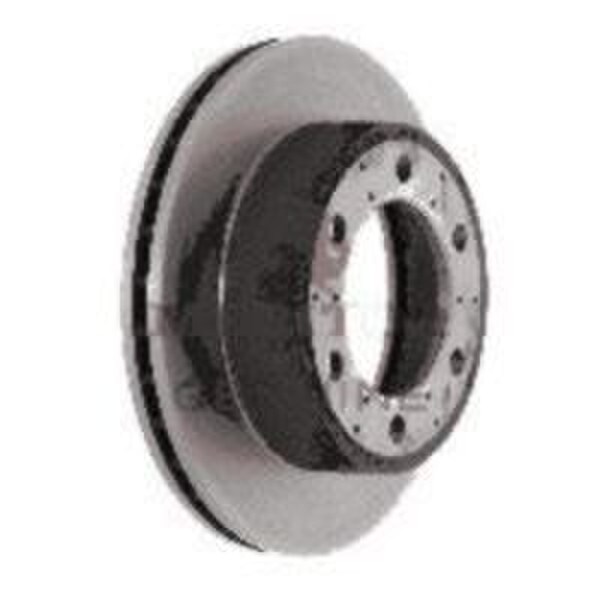

Meritor Genuine Rotor - 23123480002
Details
HYDRAULIC BRAKE - ROTOR
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Cross References
153.122700, 153122700, 23-122700-002, 23-123480-002, 23122700002, 23123480001, 23123480002, 3519058, 54103F, 54103P, 54105, 8235-23123480002, 823523123480002, ATI23123480002, D6054C, E-11323, E11323, RZ23-123480-002, RZ23123480002, TDA23123480002, WE54103F, WE54103P, WW54103F
Specifications
| Brand Label: | Mertr |
| Item-Level GTIN: | 680502035221 |
| Hazardous Material Code (Y/N): | N |
| Item Quantity Size UOM: | Ea |
| Description (Short Product Description): | Rotor |
| Pallet Quantity: | 28 |
| Weight: | 36.33 |
| Type: | Hat |
| Rotor Depth: | 3.81 In. |
| Pilot Diameter: | 5.40 In. |
| Outside Diameter: | 14.75 In. |
| Notes: | 6 Tapped Holes For Abs Mounting |
| New Disc Thickness: | 1.35 In. |
| Discard Thickness: | 1.23 In. |
| Brand: | Meritor Genuine |
| Bolt Hole Number: | 6 |
| Bolt Hole Diameter: | 0.78 In. |
| Bolt Circle Diameter: | 7.25 In. |
| Application: | Several Medium Duty Vehicle Sizes And Name Plates With Disc Wheel |
