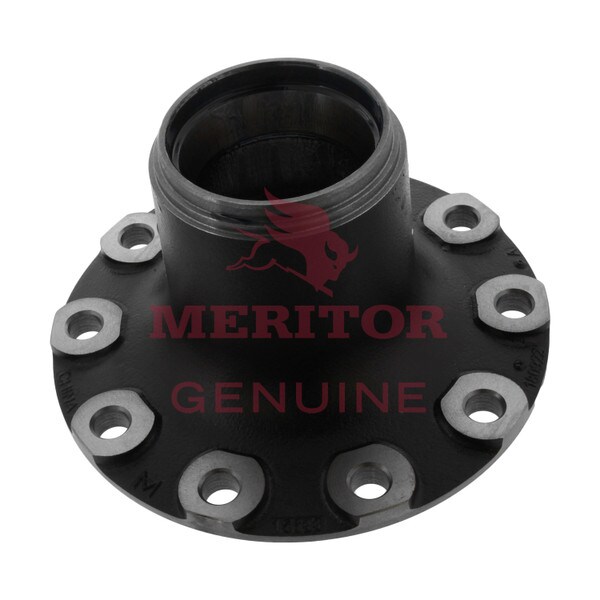

Meritor Genuine AY-FRT HUB - 0515632003

Product Description

HYDRAULIC BRAKE - HUB ASSEMBLY

Warranty information may be based on the product and application. Please contact us for additional information.

For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine AY-FRT HUB - 0515632003 is the ideal way to make sure you have the replacement part you've been looking for.

Features

• ABS Pilot Diameter: 5.617/5.614 in.; 5.321/5.318 in.
• Axle Application: Steer
• Axle Series: FF/FG
• Base Part Number: 15632
• Brake Type: Drum
• Drum Bolt Circle Diameter: 11.25 in.
• Drum Bolt Pattern: 10
• Drum Bolt Size: .904/.906 in.
• Drum Pilot Diameter: 8.778/8.775 in.
• Flange Outer Diameter: 13.00 in.
• Fully Dressed: No
• GAWR (lb): 14600
• Hub Cap Bolt Circle Diameter: 4.50 in.
• Hub Cap Bolt Thread: 5/16-18 UNC-2B
• Hub Cap Pattern: 06
• Hub Style: Conventional
• Hub Type: Hub only
• IBS to OBS: 3.395/3.355 in.
• IBS to Outer Surface: 4.455/4.415 in.
• Inner Bearing Surface (IBS) to Mounting Face: 5.19 in.
• Inner Cone: HM212049
• Inner Cup: HM212011
• Oil Seal: A1205B2264
• Outer Cone: 3782
• Outer Cup: 3720
• Tone Ring: Y
• Wheel Pilot Diameter: 8.653/8.646 in.
• Wheel Stud Bolt Circle Diameter: 11.25 in.
• Wheel Stud Hole: .904/.906 in.
• Wheel Stud Pattern: 10

Warranty

1 Year

Cross Reference

205 15632 003
