Meritor Genuine AY-REAR HUB - 0415719002

Product Description

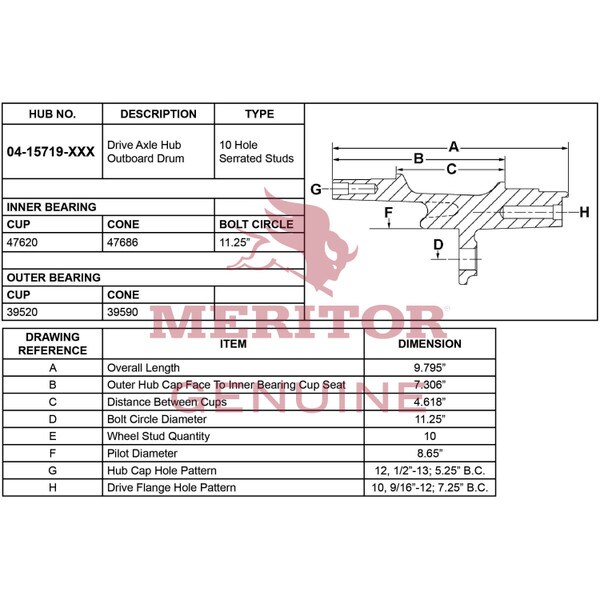

HYDRAULIC BRAKE - HUB ASSEMBLY

Warranty information may be based on the product and application. Please contact us for additional information.

For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine AY-REAR HUB - 0415719002 is the ideal way to make sure you have the replacement part you've been looking for.

Features

• Axle Application: Drive
• Axle Series: L
• Base Part Number: 15719
• Brake Type: Drum
• Disc Bolt Circle Diameter: 7.25 in.
• Disc Bolt Size: 9/16-12 UNC-2B
• Drive Flange Stud: 08-205741
• Drive Stud Pattern: 12
• Drive Stud Thread: 1/2-13 UNC-3B
• DriveStud Bolt Circle Dia: 5.25 in.
• Drum Bolt Pattern: 10
• Drum Position: Outboard
• Flange Outer Diameter: 13.406 in.
• Fully Dressed: No
• GAWR (lb): 19000
• Hub Style: Conventional
• Hub Type: Hub only
• IBS to OBS: 4.638/4.598 in.
• IBS to Outer Surface: 7.327/7.287 in.
• Inner Bearing Surface (IBS) to Mounting Face: 1.539 in.
• Inner Cone: 47686
• Inner Cup: 47620
• Notes: Without Wheel Studs
• Oil Seal: A1205W1349
• Outer Cone: 39590
• Outer Cup: 39520
• Tone Ring: N
• Wheel Pilot Diameter: 8.653/8.646 in.
• Wheel Stud Bolt Circle Diameter: 11.25 in.
• Wheel Stud Hole: .904/.906 in.
• Wheel Stud Pattern: 10

Warranty

1 Year

Cross Reference

204 15719 002
