Meritor Genuine AY-HUB/STUD/ABS - 0416001003

Product Description

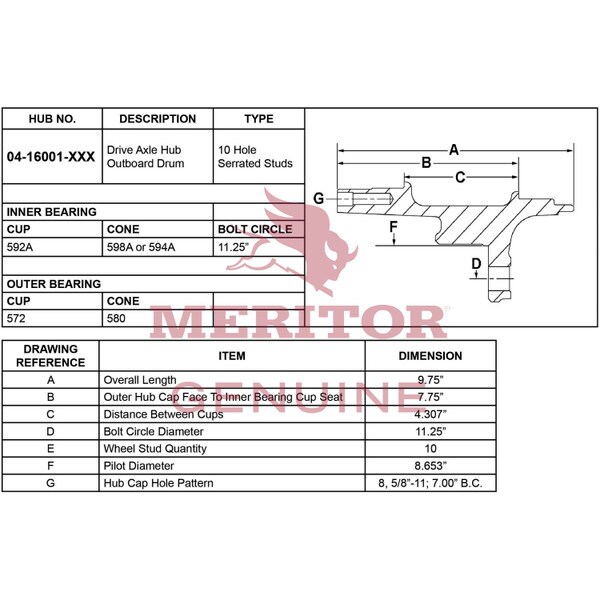

HYDRAULIC BRAKE - HUB AND STUD ASSEMBLY

Warranty information may be based on the product and application. Please contact us for additional information.

For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine AY-HUB/STUD/ABS - 0416001003 is the ideal way to make sure you have the replacement part you've been looking for.

Features

• ABS Pilot Diameter: 6.802/6.798 in.
• ABS Ring Number: 09-002209
• Axle Application: Drive
• Axle Series: R
• Base Part Number: 16001
• Brake Type: Disc
• Disc Bolt Circle Diameter: 10.50 in.
• Disc Bolt Pattern: 10
• Disc Bolt Size: .659/.679 in.
• Drive Flange Stud: 08-008551
• Drive Stud Pattern: 08
• Drive Stud Thread: 5/8-11 UNC-3B
• DriveStud Bolt Circle Dia: 7.00 in.
• Drum Bolt Pattern: 10
• Drum Position: Outboard
• Flange Outer Diameter: 13.38 in.
• Fully Dressed: No
• GAWR (lb): 27000
• Hub Style: Conventional
• Hub Type: Hub only
• IBS to OBS: 4.317/4.297 in.
• IBS to Outer Surface: 7.76/7.74 in.
• Inner Bearing Surface (IBS) to Mounting Face: 1.69 in.
• Inner Cone: 594A
• Inner Cup: 592A
• Oil Seal: A1205Q2487
• Outer Cone: 580
• Outer Cup: 572
• Rotor Pilot Diameter: 8.497/8.493 in.
• Tone Ring: Y
• Wheel Pilot Diameter: 8.653/8.646 in.
• Wheel Stud: 09-001989
• Wheel Stud Bolt Circle Diameter: 11.25 in.
• Wheel Stud Hole: .904/.906 in.
• Wheel Stud Pattern: 10


  Warranty

  1 Year




  Cross Reference

  204 16001 003




  Specifications

  ESC	0
  Brand	Meritor Genuine
  MPN	416001003
  Width	15
  VMRS	018-002-001
  UOM Quantity (Per Unit of Measure)	1
  Unit of Measure (case, ea, drum, etc.)	each
  Height	15.25
