Meritor Genuine END YOKE - 92NYS3852A
Details

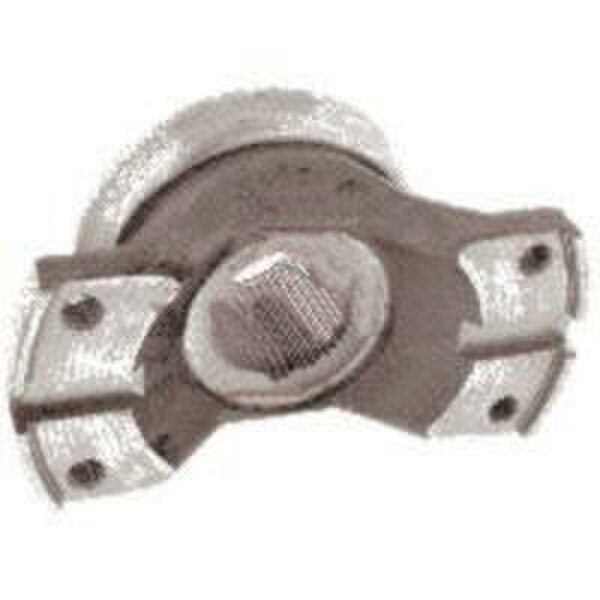

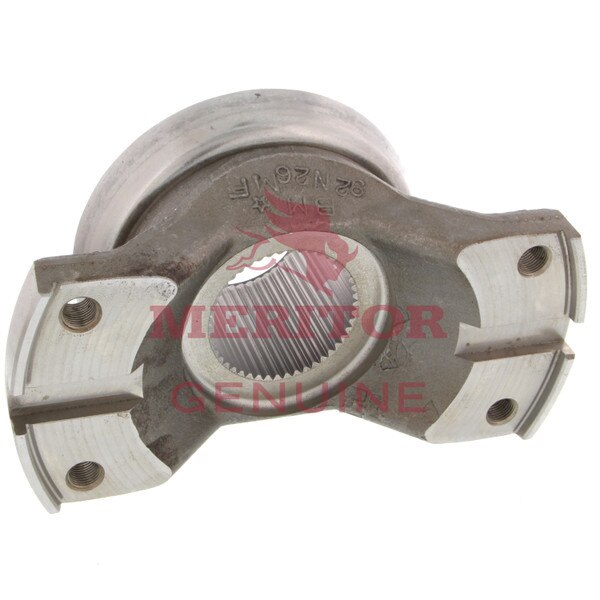

END YOKE
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Specifications
| Series | 2297 |
| Depth | 0.14 in. |
| Diameter | 8.25 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.14 in. |
| Number Of Splines / Teeth | 46 |
| MPN | 92NYS3852A |
| UPC | 737238647928 |
| Width | 7.5 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.5 in. |
| Benefits | END YOKE |
Features
- Counter Bore Depth: 0.14 in.
- Deflector: DEFR54-1
- Face To End: 4.19 in.
- Hub Diameter: 3.25 in.
- Kit Mounting Holes: Drilled Or Threaded: TH
- Pilot Diameter: 8.25 in.
- Series: 92N
- Slot Width: 0.63 in.
- Spline Diameter: 2.390 in.
- Spline Length: 2.88 in.
- Use U-Joint Kit: CP92N-DWT, CP92N-HB, CP92N-HWD, or PERMALUBE
Includes
END YOKE
